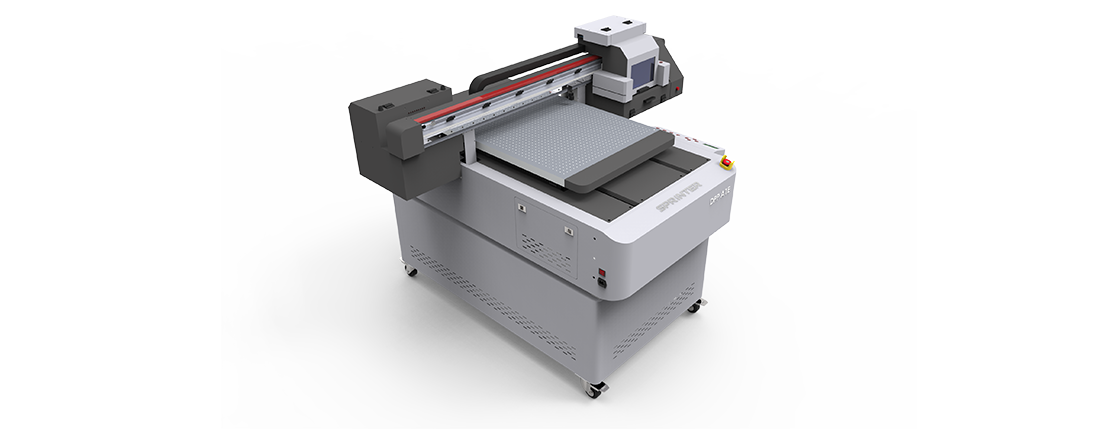

DPP-A1E
600mm x 900m Flatbed printer
DPP-A1E is a compact 600mm x 900m Flatbed printer. It＇s smaller in size than the other models，in the range, which is ideal for print companies who have a limited amount of space. As you would expect, it is very robust and extremely well engineered.
Printing on wine bottle with rotory
Customer highlight
Customer highlight
Key benefits
- Available to print all kinds of flat materials
- Heavy duty machine, stable to run 24/7
- Vivid image output with white and varnish color options
- Eco and energy-save LED ink-curing system
- Fast drying UV ink
Advantages
- SPRINTER UV digital printing has been widely used in different industries including advertisement and signs, furnituring, house decoration, arts and painting, package and label, vision designs,etc. Its outstanding advantage is that, UV printer could print on limitless materials like acrylic, glass, woods, MDF, steel, foarm boards, paper…
- SPRINTER UV printer provides digital printing solutions which means it can work for orders without MOQ, and output image is easier to manage with original designs.
Machine systems
- User-friendly control system
- Image ripping system
- Auto media height detection
- Anti-crush system
- Statics eliminating system
- Media vacuum suction system
- Board media registration system
- Auto ink volum alarm system
Video on youtube for DPP A1E
DPP A1E printing on wine bottle with rotory
EQUIPMENT
With the world's top partners, to create the most outstanding quality
Rich printing solutions, Makes you RICH
Product dimension diagram
Packaging
Features
Water-cooled LED-UV curing
Low power design
Liquid level alarm system
White Ink Stirring Function
Ink temperature control system
External motion system control
Applications
Embossed effects
Varnish samples
Samples
Wine bottle Samples
Customer highlight
Customer highlight
Double-side seeing
Varnish samples
Samples
Wine bottle Samples
Customer highlight
Customer highlight
Headplate Scheme（Optional,MAX 3H EPSON I3200,Meet the various print,Subject to actnal order)
Technical Specs
| Model | DPP A1E | ||
| Printhead | EPSON I1600/I3200 | ||
| Resolution | 720*1800DPI；720*1200DPI;360*1800DPI | ||
| Printing speed | Draft mode：6-7㎡/h | Standard mode：4.5-5㎡/h | Precision mode：2.5-3.5㎡/h |
| Color | CMYK, White/Varnish | ||
| Material thickness | 0mm~110mm(0mm~200mm customization if need Rotory system) | ||
| Ink drying system | LED lamp system | ||
| Platform vacuum | Turbo fan | ||
| Printing size | Maximum Printing Area | 600mm (width)x900mm (depth) | |
| Maximum Material Size | 650mm (width)x950mm (depth) | ||
| Ink | UV Curable ink | ||
| Color validity | 3~5 years outdoor and 7~10 years indoor without color fading (use Sprinter ink) | ||
| Ink capacity | 0.5L drums, automatic alarm for ink volum shortage | ||
| Ink supply system | Siphon ink supply system | ||
| Media | Glass、PMMA、ceramic、Metal、Paper、wood、Leather、 PVC、PP、PE、PTFE…… | ||
| Control system | Windows98/Me/2000/XP/Win7/Win10 64bit . RAM≥8G . HDD≥500G . SSD≥128G . CPU≥Inte I5 | ||
| RIP software | RIIN /Photoprint(Option)/Print Factory(Option） | ||
| Operation environment | Temp: 18~26℃；Humidity: 40~70% | ||
| Power supply | Power Maximum:0.5KW; AC 50Hz/60Hz; 220V(±10%)＞2.5A | ||
| Image format | Tiff,JPEG,EPS,PDF | ||
| Package dimensions(L x W x H) | 1750 x 1630 x 1300mm | ||
| Net weight&Gross weight) | 260kg & 380kg | ||
| Certification | CE | ||
*Specifications subject may change without notice. Please confirm with sales representative for more details.
