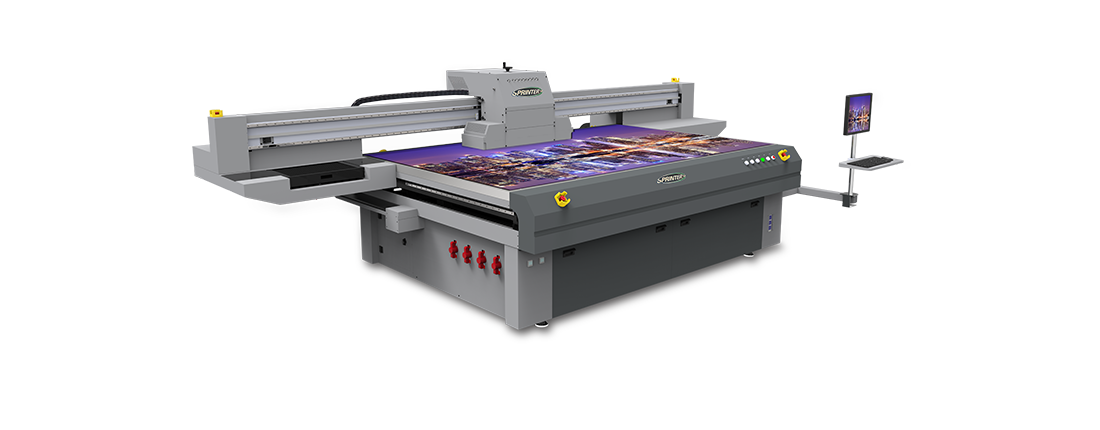

TrueColor TC-PF2713
2.7*1.22 Meters UV Flatbed Printer
TC-PF2713 is a professional high-end UV flatbed printer, which could install max. 12 pcs 4 rows Ricoh G5/G6 printheads or 12 pcs 3 rows KM1024a printhead. It can run at incredible speed that offers larger productivity.
Key benefits
- Available to print all kinds of flat materials
- Heavy duty machine, stable to run 24/7
- Vivid image output with white and varnish color options
- Eco and energy-save LED ink-curing system
- Fast drying UV ink
Advantages
- SPRINTER UV digital printing has been widely used in different industries including advertisement and signs, furnituring, house decoration, arts and painting, package and label, vision designs,etc. Its outstanding advantage is that, UV printer could print on limitless materials like acrylic, glass, woods, MDF, steel, foarm boards, paper…
- SPRINTER UV printer provides digital printing solutions which means it can work for orders without MOQ, and output image is easier to manage with original designs.
Machine systems
- User-friendly control system
- Image ripping system
- Auto media height detection
- Anti-crush system
- Statics eliminating system
- Media vacuum suction system
- Board media registration system
- Auto ink volum alarm system
TC-PF2713 with Ricoh Gen5
TC-PF2713 speed test Ricoh Gen6
EQUIPMENT
With the world's top partners, to create the most outstanding quality
Different printing models, Rich printing solutions.
Product dimension diagram
KM1024a printhead soleplate diagram
Ricoh G5/G6 printhead soleplate diagram
Features
UV-LED Curing System
Auto media height detection
Anti-crush Protection
Auto Ink Lock
Media Locating Pins
Statics Elimination
Flatbed Vacuum System
High-resolution Encoder
Applications
Embossed effects
Shiny Photos
Double-side seeing
Print 3D Image
Technical Specs
| Model | TrueColor TC-PF2713 | |||
| Printhead | RICOH GEN5; 7PL | RICOH GEN6; 5PL | KM1024i-13pl | KM1024a 7pl |
| Resolution | 600DPI,900DPI,1200DPI,1800DPI,2400DPI | |||
| Printing speed | 70 ㎡/hr (8 head cmyk*4 rows) |
90 ㎡/hr (8 head cmyk*4 rows) |
85 ㎡/hr (12 head cmyk*3 rows) |
93 ㎡/hr (12 head cmyk*3 rows) |
| Color | CMYK, White/Varnish, LcLm options | |||
| Max.material thickness | 0mm~110mm | |||
| Ink drying system | LED lamp system | |||
| Vacuum flatbed | air pump*2pcs for 4 different zones | |||
| Printing size | Maximum Printing Area | 2680mm x 1220mm | ||
| Maximum Material Size | 2750mm x 135 0mm | |||
| Ink | UV Curing ink | |||
| Color validity | 3~5 years outdoor and 7~10 years indoor without color fading (use Sprinter ink) | |||
| Ink capacity | 1.5L drums, automatic alarm for ink volum shortage | |||
| Ink supply system | Auto negative pressure ink supply system | |||
| Media | Glass、PMMA、ceramic、Metal、Paper、wood、Leather、flex banner、Wallpaper、Car sticker、Soft film、PVC、PP、PE、PTFE…… | |||
| Control system | Window7 64bit . RAM≥8G . HDD≥500G . SSD≥128G . CPU≥Inte I5 | |||
| RIP software | Photoprint / ONYX / Caldera（Option） | |||
| Operation environment | Temp: 18~26℃；Humidity: 40~70% | |||
| Power supply | Power 7.5kw Max; 50HZ/60HZ; AC 220v(±10%)＞15A | |||
| Image format | Tiff,JPEG,EPS,PDF | |||
| Package dimensions(L x W x H) | 5170 x 2220 x 1795mm | |||
| Net weight&Gross weight) | 1350kg & 2150kg | |||
| Certification | CE | |||
* Specifications subject may change without notice. Please confirm with sales representative for more details.
