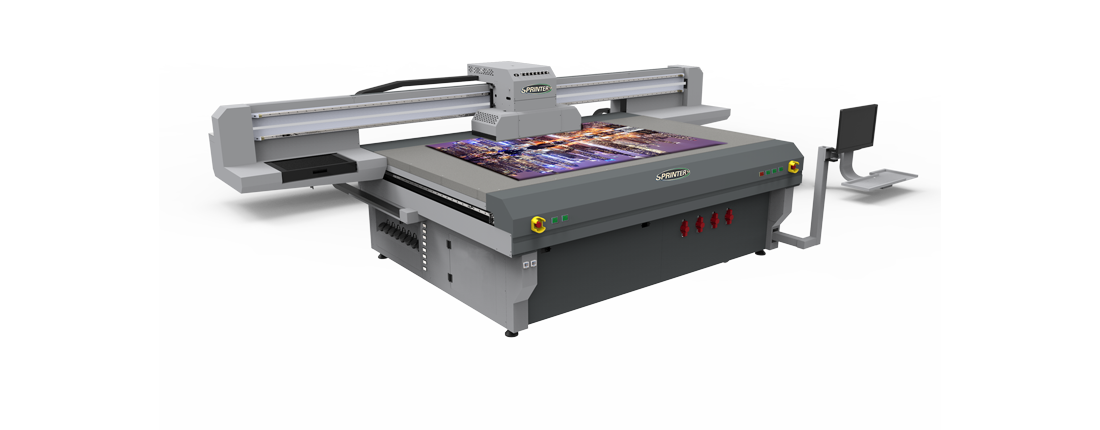

TrueColor TC-CF2513
2.53*1.22 Meters UV Flatbed Printer
TC-CF2513 is a economic entry-level UV flatbed printer. It has full 8 color options including white and varnish. It can print on all kinds of material with flat substrate. It is a very good choice for start of a new printing business.
Key benefits
- Available to print all kinds of flat materials
- Heavy duty machine, stable to run 24/7
- Vivid image output with white and varnish color options
- Eco and energy-save LED ink-curing system
- Fast drying UV ink
Advantages
- SPRINTER UV digital printing has been widely used in different industries including advertisement and signs, furnituring, house decoration, arts and painting, package and label, vision designs,etc. Its outstanding advantage is that, UV printer could print on limitless materials like acrylic, glass, woods, MDF, steel, foarm boards, paper…
- SPRINTER UV printer provides digital printing solutions which means it can work for orders without MOQ, and output image is easier to manage with original designs.
Machine systems
- User-friendly control system
- Image ripping system
- Auto media height detection
- Anti-crush system
- Statics eliminating system
- Media vacuum suction system
- Board media registration system
- Auto ink volum alarm system
TC-CF2513 in customer place
TC-CF2513 varnish glossy print
TC-CF2513 printing on different material
EQUIPMENT
With the world's top partners, to create the most outstanding quality
Rich printing solutions, Makes you RICH
Product dimension diagram
Printhead soleplate diagram
Features
UV-LED Curing System
Auto media height detection
Anti-crush Protection
Auto Ink Lock
Media Locating Pins
Statics Elimination
Flatbed Vacuum System
Applications
Embossed effects
Shiny Photos
Double-side seeing
Print 3D Image
Technical Specs
| Model | TrueColor TC-CF2513 | TrueColor TC-CF2513 |
| Printhead | RICOH GEN5; 7PL | RICOH GEN6; 5PL |
| Resolution | 600DPI,900DPI,1200DPI,1800DPI,2400DPI | |
| Printing speed | 40㎡/hr (cmyk*3 rows) |
50㎡/hr (cmyk*3 rows) |
| Color | CMYK, White/Varnish, LcLm options | |
| Material thickness | 0mm~110mm | |
| Ink drying system | LED lamp system | |
| Vacuum system | 4 different vacuum zones in flatbed | |
| Printing size | Maximum Printing Area | 2500*1300mm |
| Maximum Material Size | 2530*1350mm | |
| Ink | UV Curable ink | |
| Color validity | 3~5 years outdoor and 7~10 years indoor without color fading (use Sprinter ink) | |
| Ink capacity | 1.5L drums, automatic alarm for ink volum shortage | |
| Ink supply system | Auto negative pressure ink supply system | |
| Media | Glass、PMMA、ceramic、Metal、Paper、wood、Leather、PVC、PP、PE、PTFE…… | |
| Control system | Window7 64bit . RAM≥8G . HDD≥500G . SSD≥128G . CPU≥Inte I5 | |
| RIP software | Photoprint / ONYX / Caldera（Option） | |
| Operation environment | Temp: 18~26℃；Humidity: 40~70% | |
| Power supply | Power Maximum:7KW; AC,50HZ/60HZ; 220v(±10%)＞15A | |
| Image format | Tiff,JPEG,EPS,PDF | |
| Package dimensions(L x W x H) | 4740 x 2195 x 1645mm | |
| Net weight&Gross weight) | 1200kg & 2000kg | |
| Certification | CE | |
*Specifications subject may change without notice. Please confirm with sales representative for more details.
