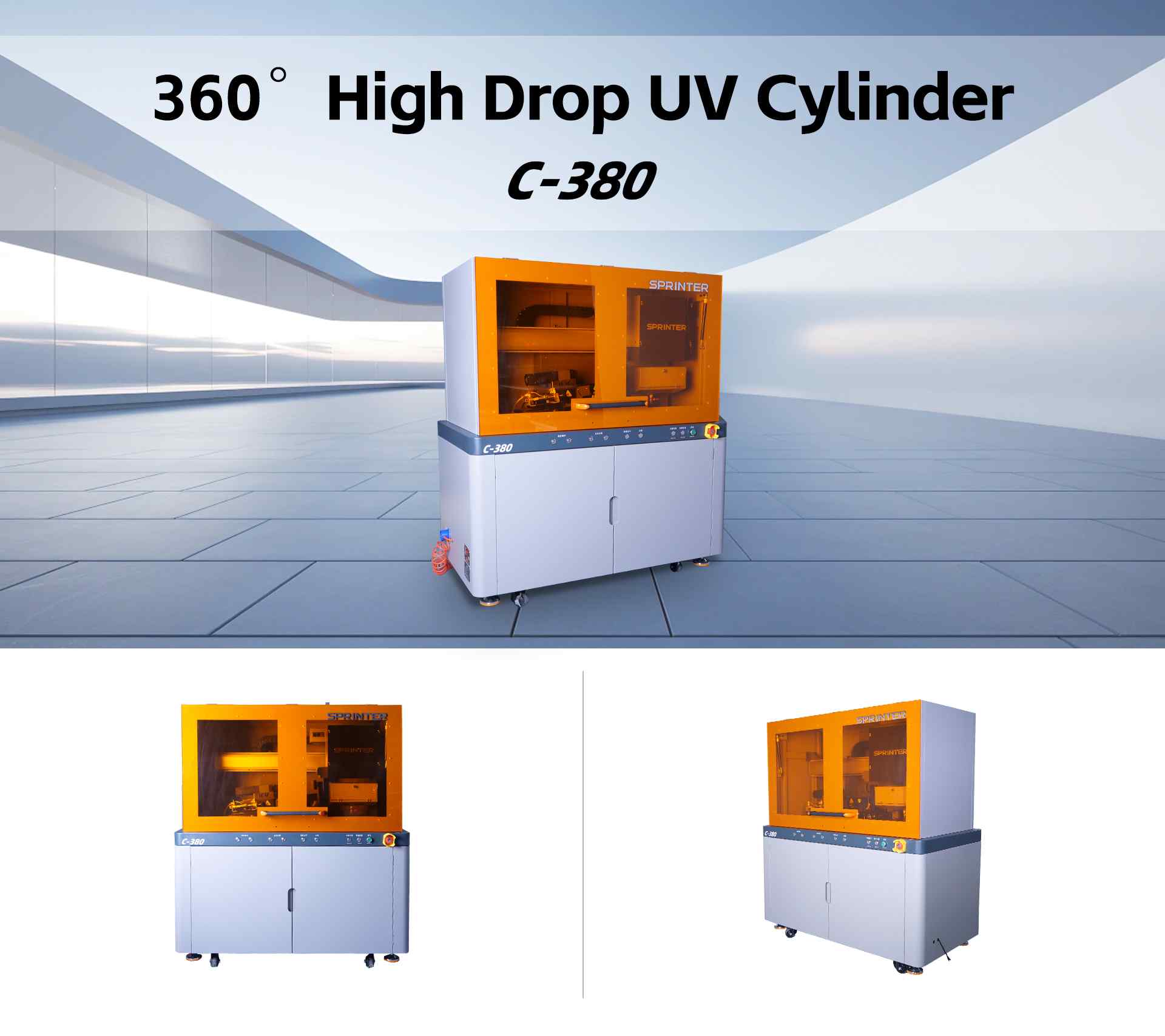

C-380
360 °High Drop UV Cylinder Printer
C-380 offers enhanced operability and a range of useful functions. It features automatic positioning for precision, the ability to switch fixtures for versatility, high - speed curing for efficiency, and continuous printing for productivity.
Key benefits
New feeding up system with Automatic positioning
Fixtures can be switched
High speed curing
Continuous printing
Fixtures can be switched
High speed curing
Continuous printing
Application

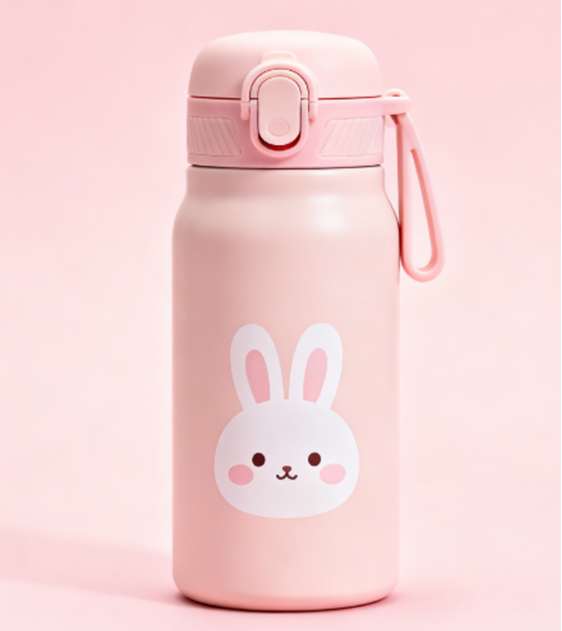

Stainless Steel Sports Bottles

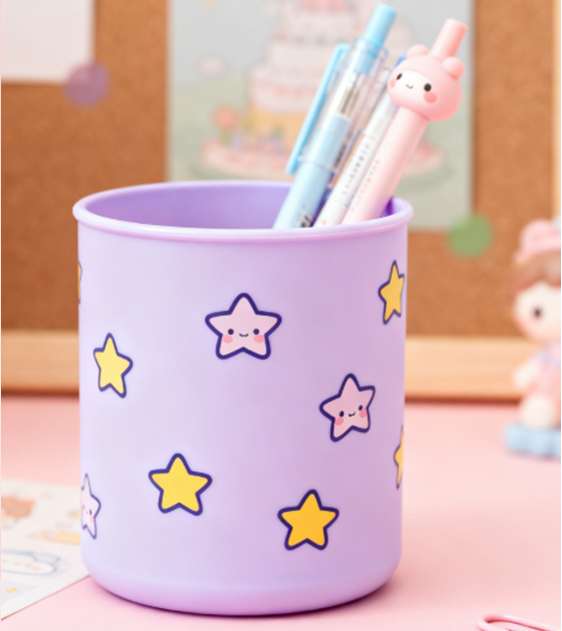

Plastic Pen Holders

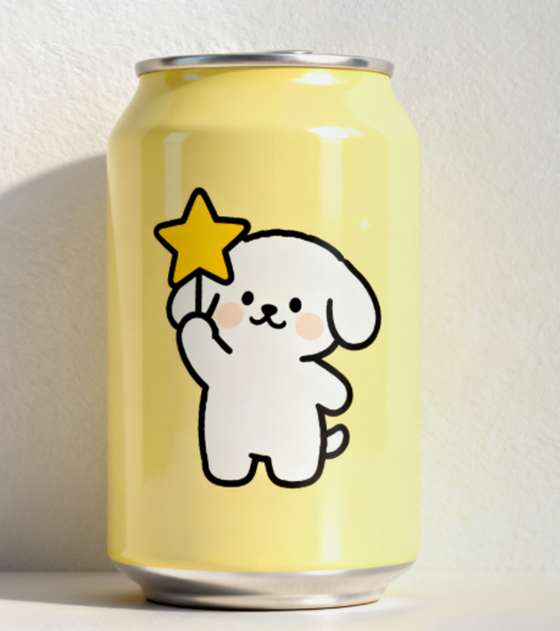

Aluminum Beverage Cans

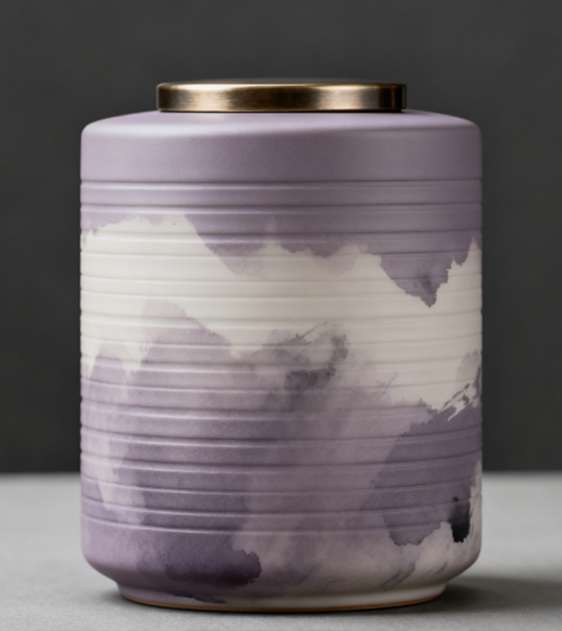

Ceramic Tea Caddies
Cylindrical Bamboo Storage Tins
Cylindrical Plastic Toy Containers
Print Detail

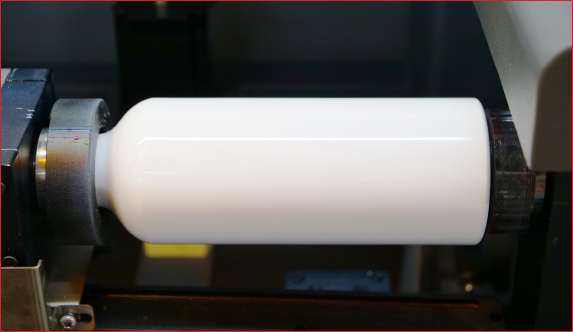

Automatic positioning
Placed in the right position, the key automatically clamps, printing directly.

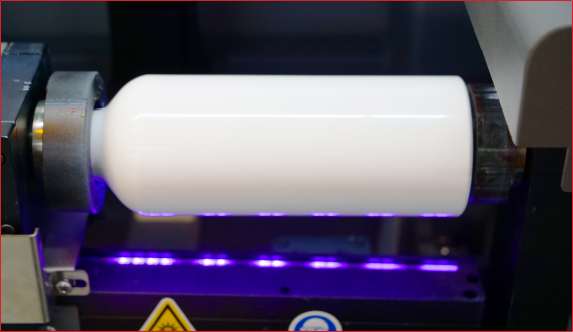

High speed curing
High power UV lamp can realize high-speed printing while printing and curing.

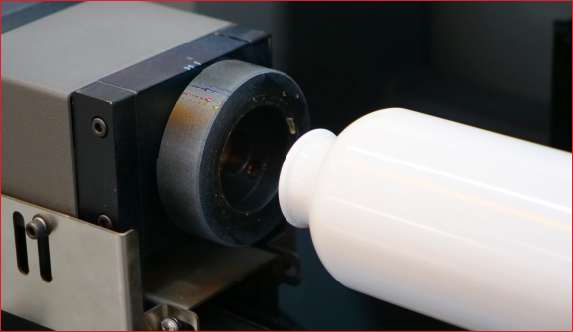

Fixtures can be switched
Fixtures can be customized according to customer product needs,suitable for more products.

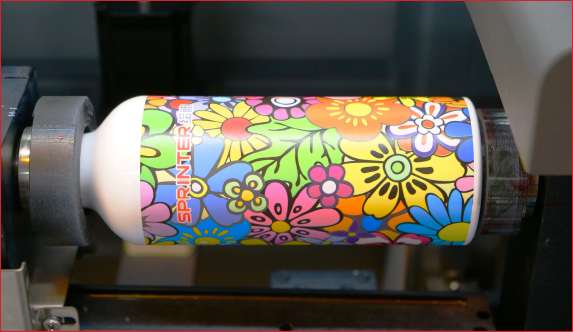

Continuous printing
After placing the product, you need to operate the computer again, and directly click the buiton to start printing, which saves labor.

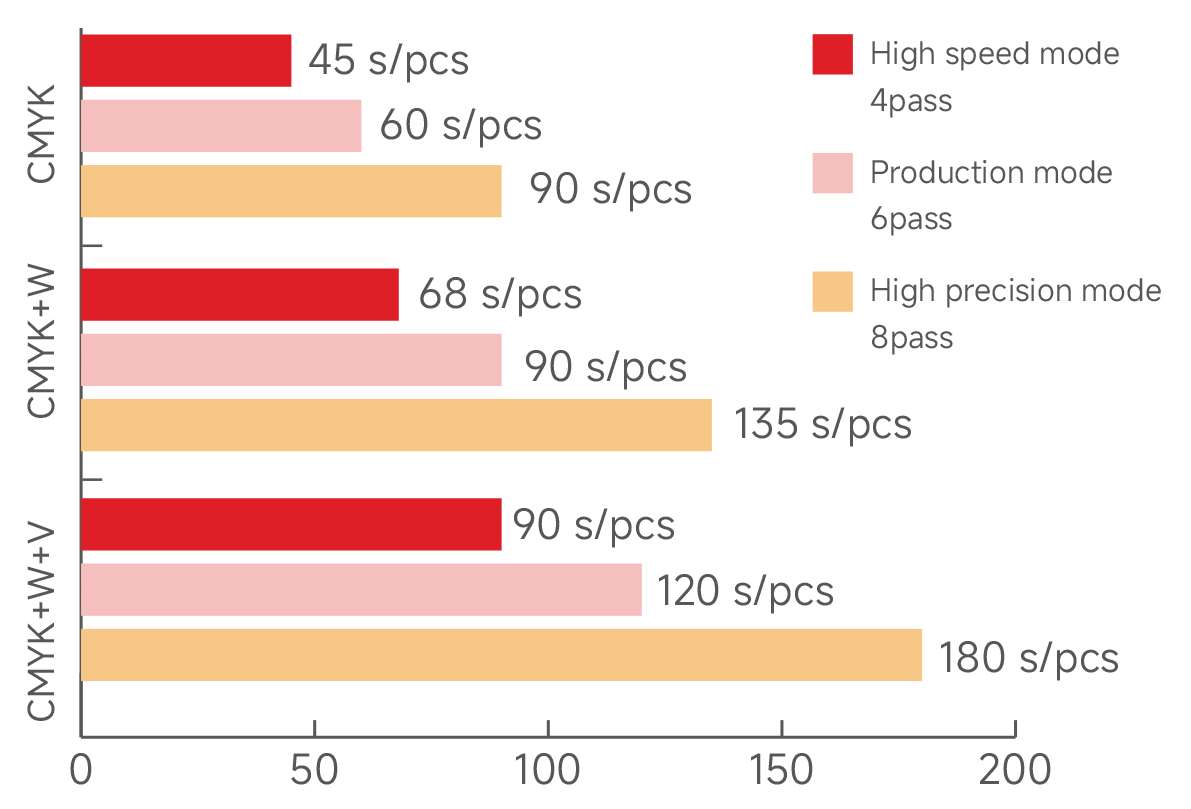

Print Speed

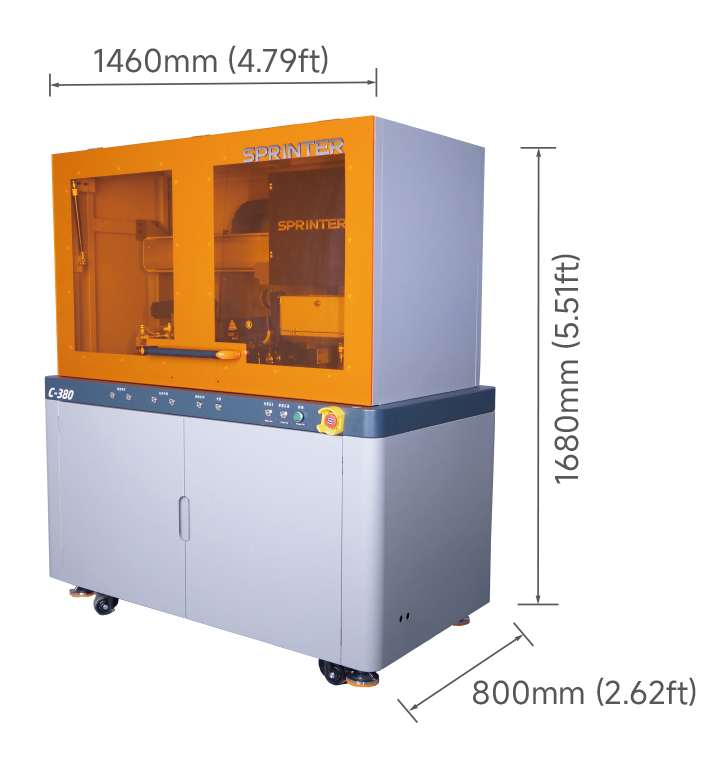

Dimension
Specification
| Printer name | 360°High Drop UV Cylinder Printer |
| Model | C-380 |
| Print size | 60-260mm(2.36-10.24 in)(customizable size) |
| Ink curing system | UV LED curing system |
| Print width | 280mm（11.02 in）(customizable size) |
| Printhead | Ricoh G5i/G6 |
| Printhead quantity | 1 - 4 pcs |
| Color | CMYK,White,Varnish |
| Resolution | 720×900; 720×1200; 720×1800dpi |
| Print height drop | Maximum 18mm(0.7087 in) |
| Ink system | Dual negative pressure system/1.5L ink tanks capacity/white ink mixing |
| Motion system | High precision module drive |
| Rip software | MainTop / PhotoPrint(option) |
| PC specification | Win 7/10/11 64bit . RAM≥8G . HDD≥500G . SSD≥128G . CPU≥Inte I5 |
| Data interface | USB3.0 |
| Temperature and humidity | 20 - 30°C/40 - 80%(non - condensing) |
| Electricity demand | 200 - 240VAC, single phase,50/60Hz, average operating current 32 amps |
| Net weight & Gross weight | 500KG & 650KG（1102.31lb & 1432.903lb） |
| Dimensions(L×W×H） | 1460×800×1680mm（4.79 × 2.62 × 5.51ft) |
| Package dimensions((L×W×H） | 1860×950×2000mm (6.1 × 3.12 × 6.56ft) |
| Certification | CE |
* Notice: above specifications are subject to change without prior notice.
all the above dimensions shall be subject to the metric system, with the imperial system for reference only.
