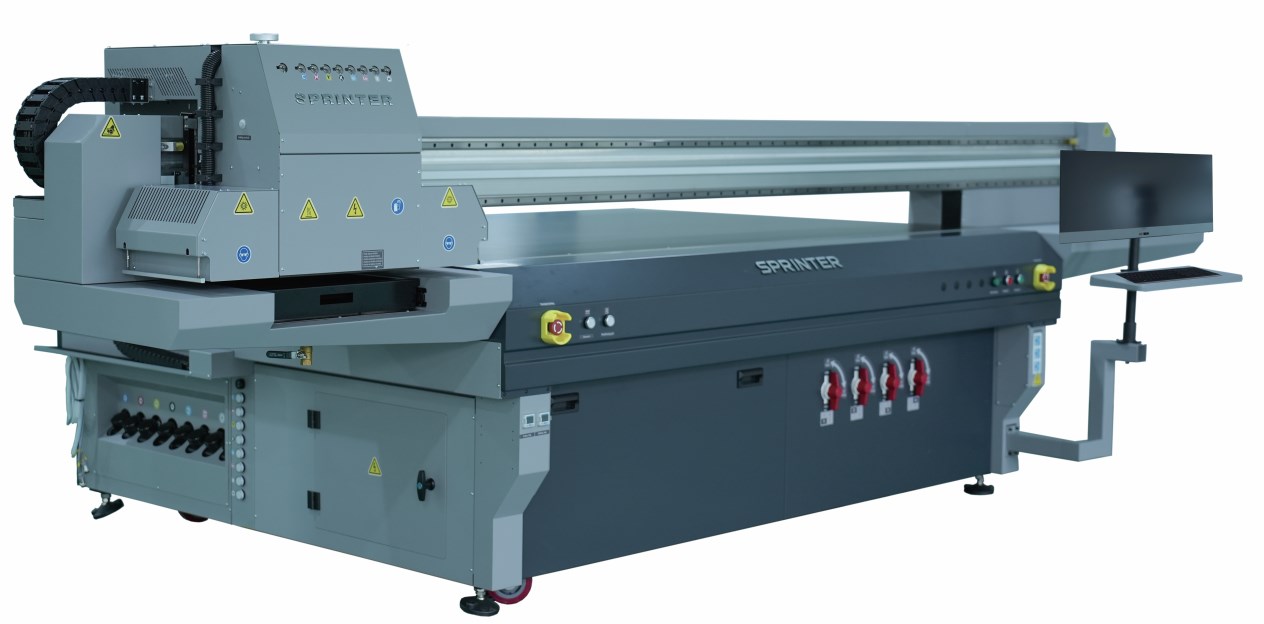

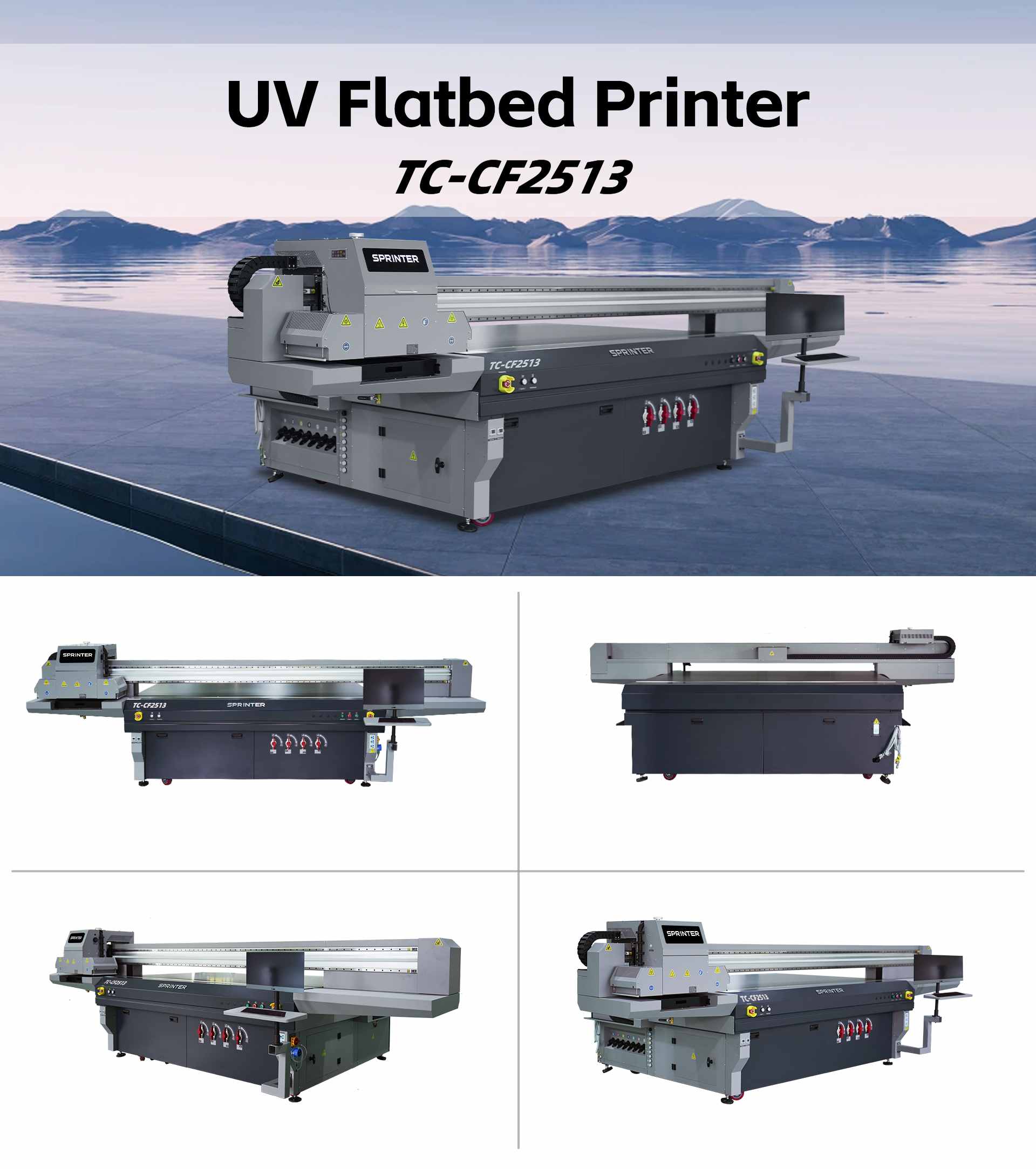

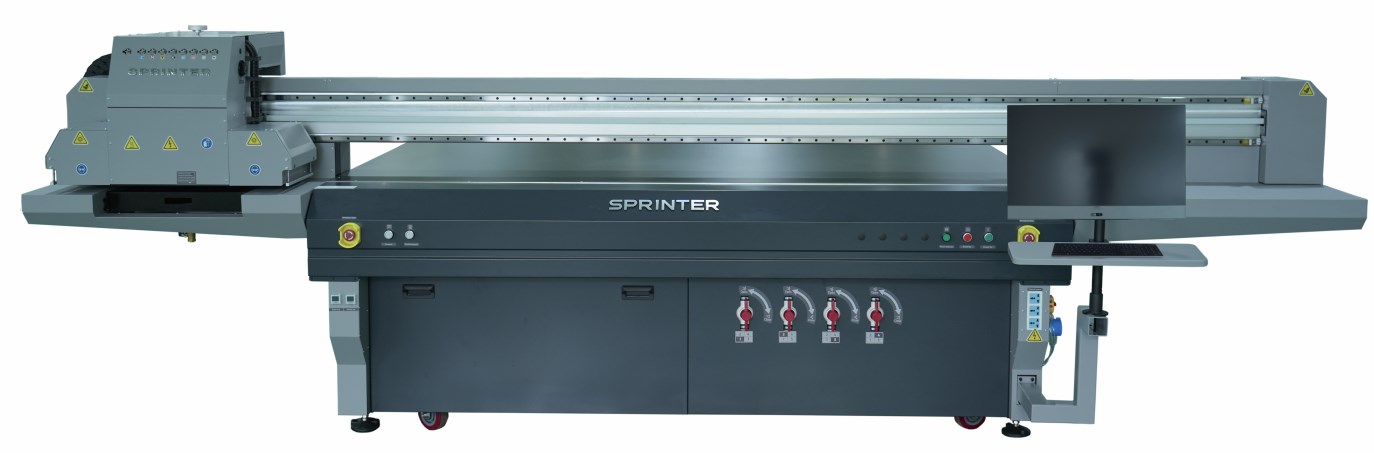

TrueColor TC-CF2513
2.53*1.22 Meters UV Flatbed Printer
TC-CF2513 is a economic entry-level UV flatbed printer. It has full 8 color options including white and varnish. It can print on all kinds of material with flat substrate. It is a very good choice for start of a new printing business.
Key benefits
Dual vacuum pump
Media locating pins
Auto media height detection
Media locating pins
Auto media height detection
Application
Glass
Frame Painting
Glass
Ceramic
Signboard
Metal Board
Acrylic Board
PVC Board
Stander
Display Board
Wood
Menu
Features

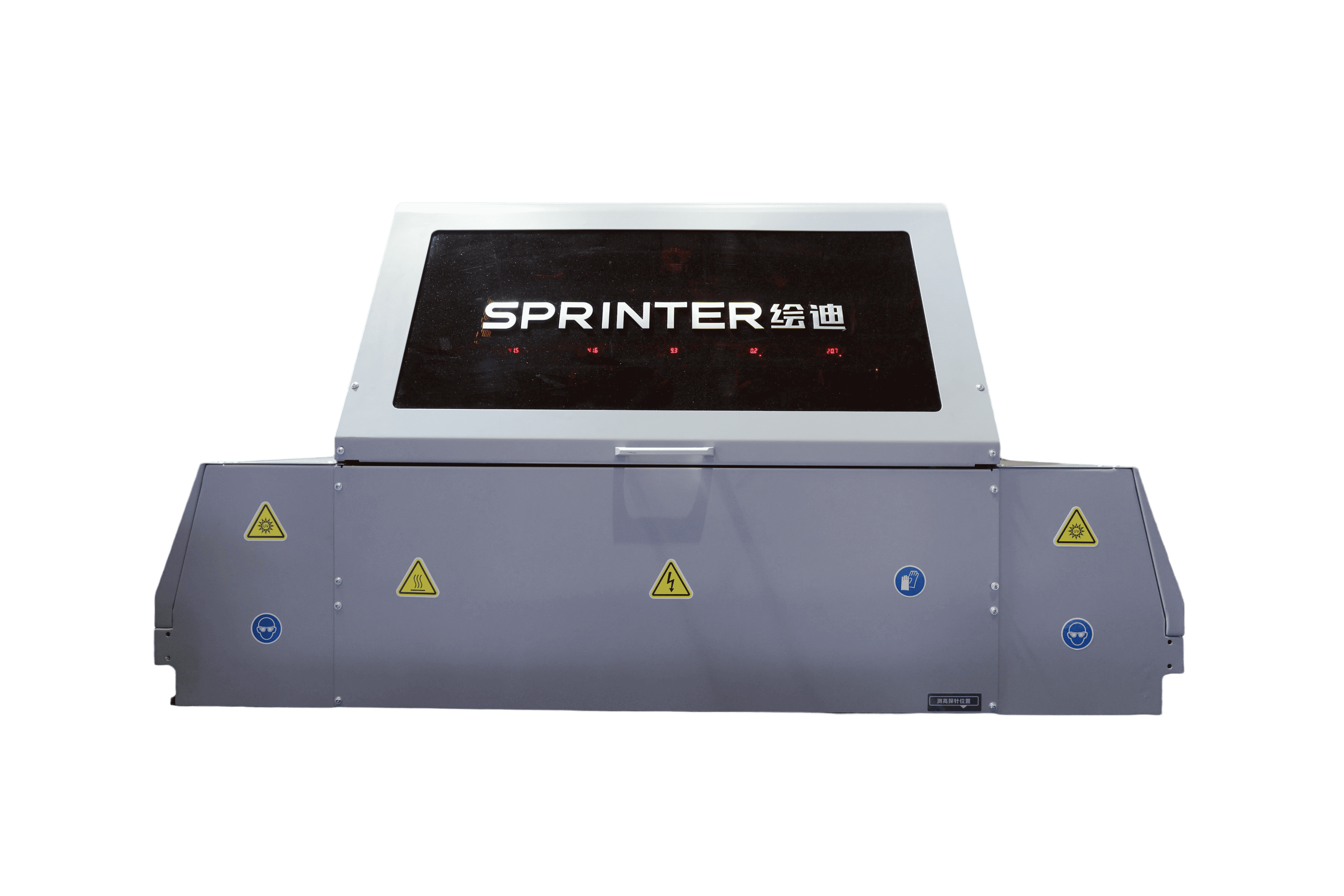

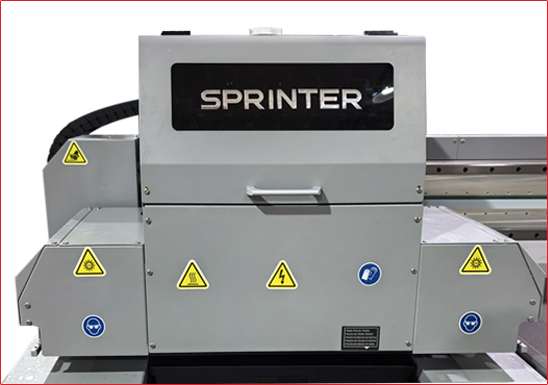

UV-LED Curing System
LED curing doesn't produce much heat. So heat-sensitive media can be printed and cured without material damage. The curing power is adjustable. Besides, UV-LED curing system also has a longer lifetime. And it is maintenance free and eco-friendly.

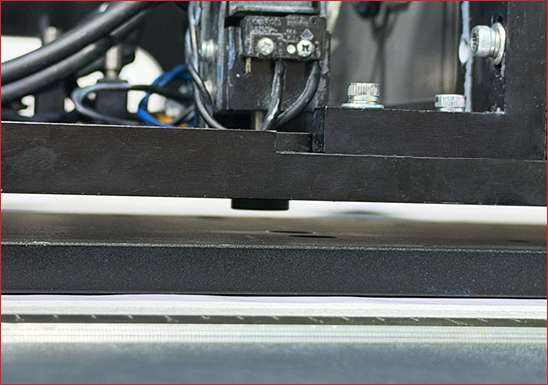

Auto Media Height Detection
It can measure the height of media and adapt to the height for print automatically. It can print media with thickness up to 110mm.

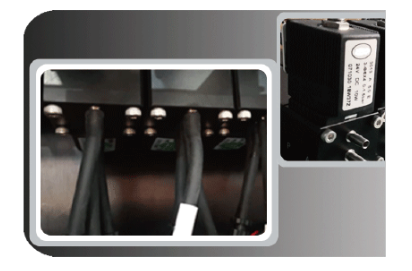

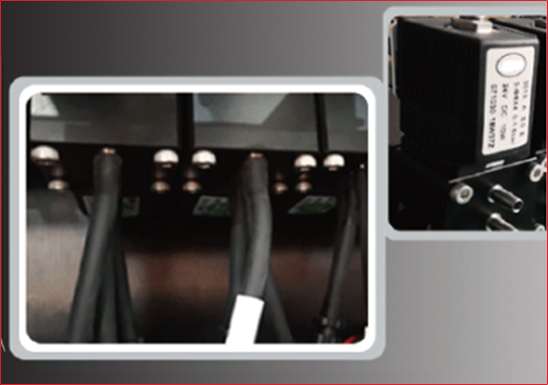

Auto Ink Lock
The ink valve system is opened and close dutomaticlly by solenoid valve control.

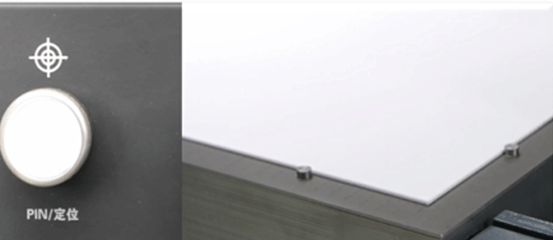

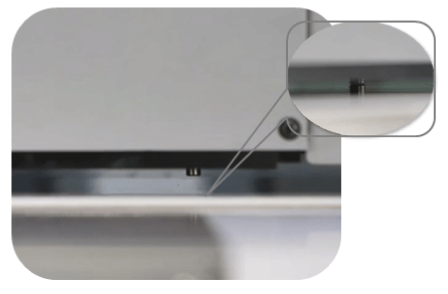

Media Locating Pins
There are pins around start point on flatbed. It is convenient to operate with a simple button. Media can be easily placed at the start point.

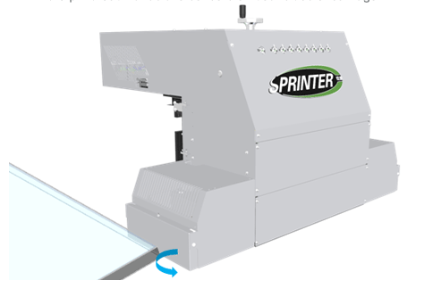

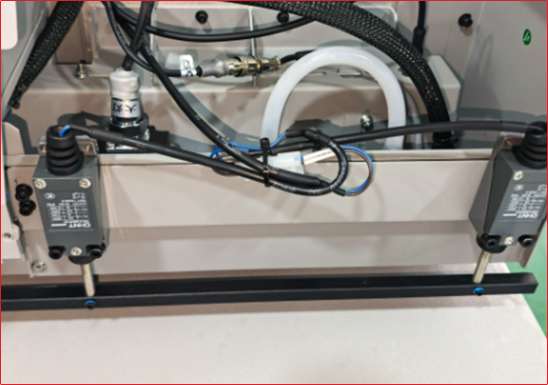

Anti-crush Protection
The carriage will stop moving when it hit subject in its way to protect the printhead. It has two sensors on both sides of carriage.

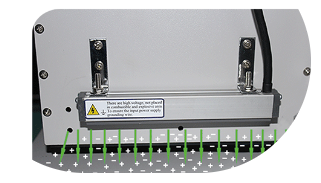

Statics Elimination
Statics exists on material, especial in a dry environment. With statics elimination system, it can efficiently decrease the route change of ink dropping caused by statics on material, ensure printing quality.

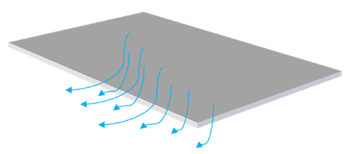

Flatbed Vacuum System
Media will be hold on flatbed with vacuum system flat and firmly in place. It flatbed has been divided into 8 different areas for media of different sizes.

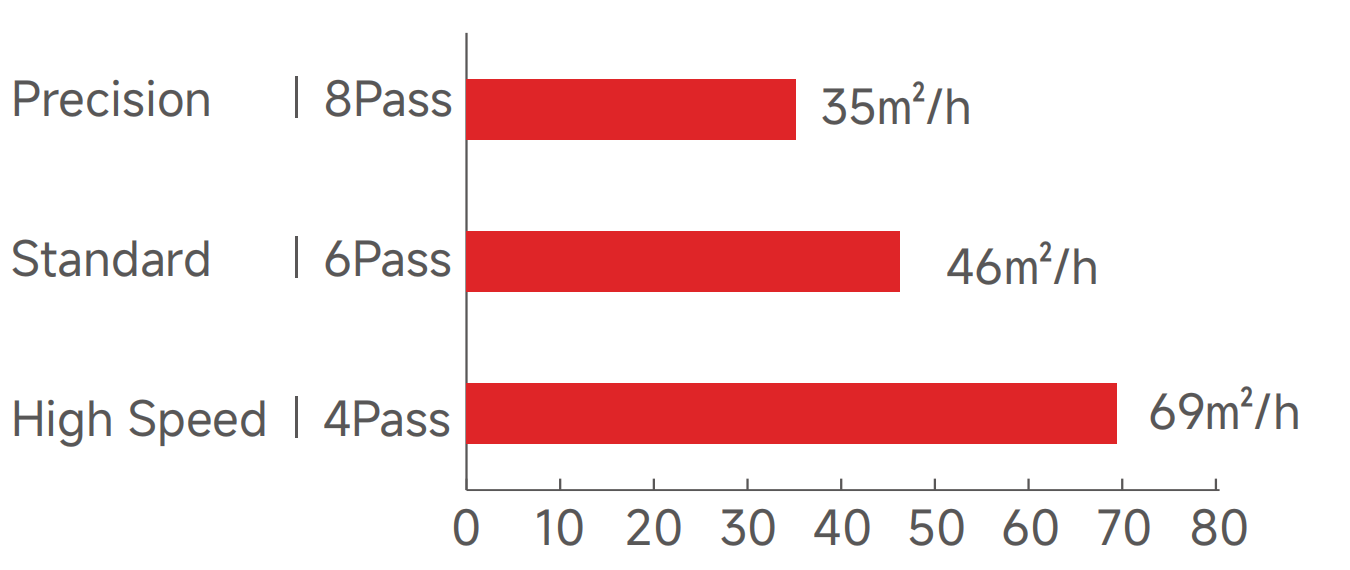

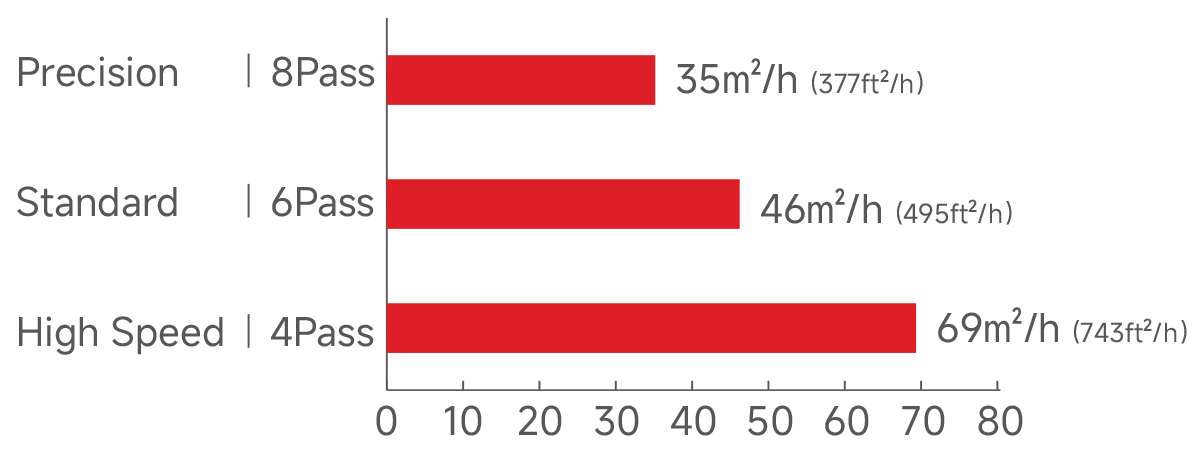

Print Speed
3 rows CMYK

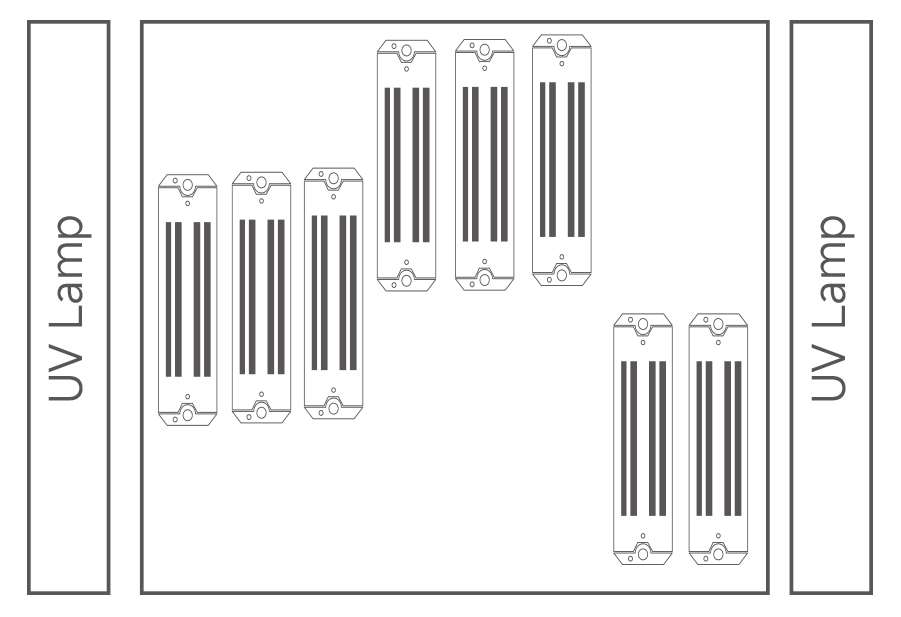

Printhead Soleplate
3 rows Ricoh G5/G6

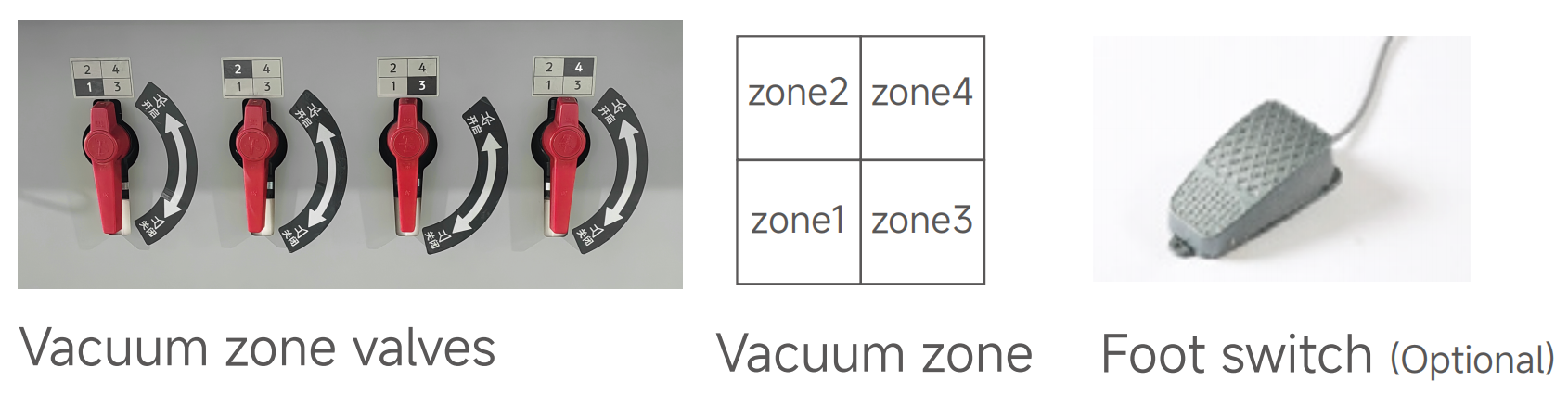

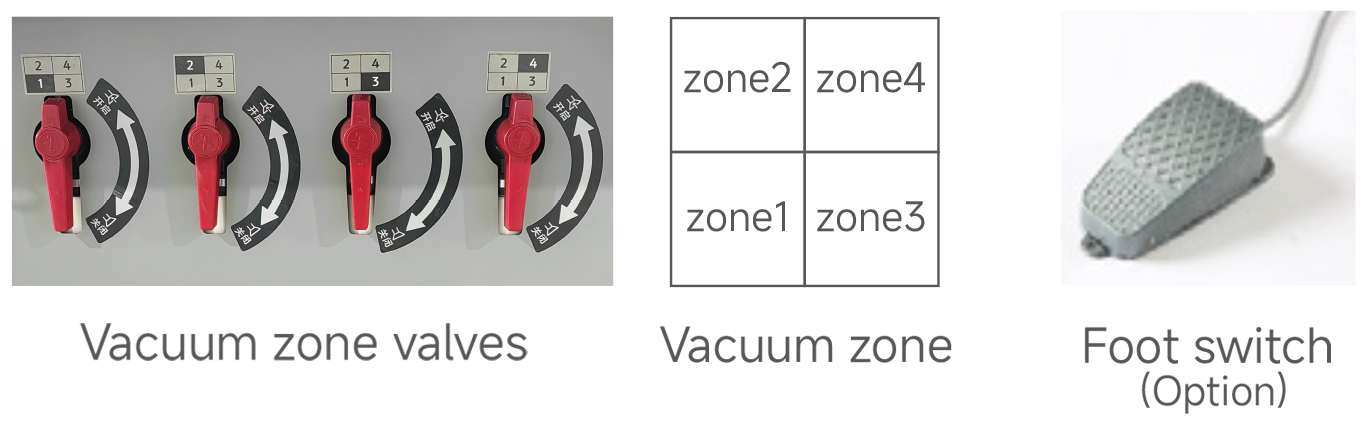

Vacuum
The vacuum area to hold media is divided into two sections in the X direction of the table, and can be adjusted to the media size you use by opening/closing valves. Besides the operation panel, a foot switch can be used to turn the vacuum on and off.

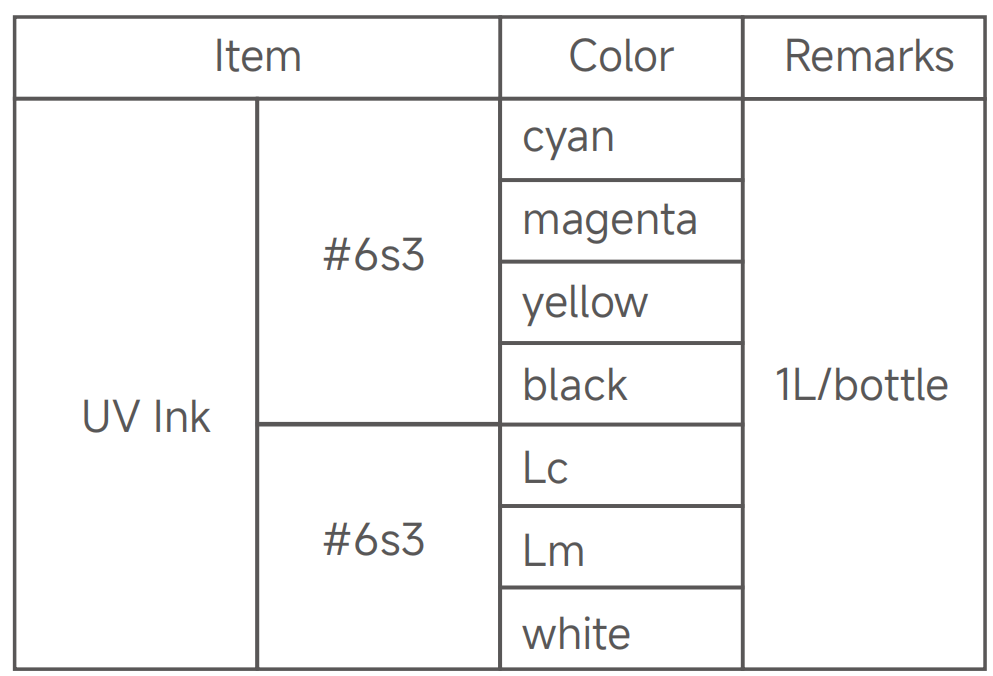

Ink Supplies
| Item | Color | Remarks | |
| UV Ink | #6s3 | cyan | 1L/bottle |
| magenta | |||
| yellow | |||
| black | |||
| #6s3 | Lc | ||
| Lm | |||
| white | |||
Inks and substrates:
•As physical properties of ink (adhesion, weather resistance etc.) are different depending on media, please be sure to have a print test in advance.
•Depending on the application, primers, other surface treatment or surface protection such as lamination may be necessary.
Safety notice:
This product is equipped with UV irradiation equipment. Please pay attention to the following notes in order to use safely.
•Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
•Depending upon print mode, some VOC emittance from printed parts not yet cured and hardened may occur.
•In addition, please be sure to read and follow the instructions and guidelines of the manual carefully.
•As physical properties of ink (adhesion, weather resistance etc.) are different depending on media, please be sure to have a print test in advance.
•Depending on the application, primers, other surface treatment or surface protection such as lamination may be necessary.
Safety notice:
This product is equipped with UV irradiation equipment. Please pay attention to the following notes in order to use safely.
•Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
•Depending upon print mode, some VOC emittance from printed parts not yet cured and hardened may occur.
•In addition, please be sure to read and follow the instructions and guidelines of the manual carefully.

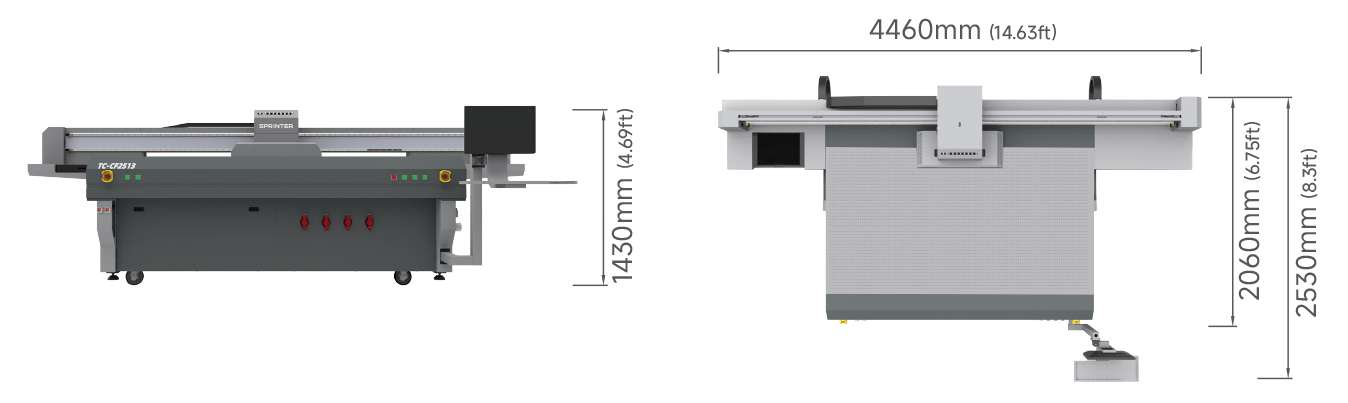

Dimension
Specification
| Model | TC-CF2513 | |
| Printhead | RICOH G5/G6 3 rows | |
| Resolution | 600, 900, 1200, 1800, 2400dpi | |
| Color | CMYK, White / Varnish, LcLm(Option) | |
| Material thickness | 0~110mm(4.33in) | |
| Ink curing system | UV LED curing system | |
| Vacuum suction | 4 zones | |
| Print size |
Maximum Printing Area Maximum Material Size |
2500*1300mm (8.2 x 4.26 ft) 2530*1350mm (8.3 x 4.43 ft) |
| Ink | UV curable ink | |
| Color validity | 3~5 years outdoor and 7~10 years indoor without color fading (use Sprinter ink) | |
| Ink capacity | 1.5L ink tanks, automatic alarm for ink volum shortage | |
| Ink supply system | Auto negative pressure ink supply system | |
| Media | Glass、Acrylic、Ceramic、Metal、Paper、Wood、Leather、PVC、PP、PE... | |
| PC specification | Window7/10/11 64bit . RAM≥8G . HDD≥500G . SSD≥128G . CPU≥Inte I5 | |
| RIP software | PhotoPrint /PrintFactory/Caldera(option) | |
| Operation environment |
Temperature 18℃~ 26℃ Humidity 40% ~ 70% |
|
| Power supply | Power Maximum:7KW; AC,50HZ/60HZ; 220v(±10%)＞15A | |
| Image format | Tiff,JPEG,EPS,PDF | |
| Dimensions(L×W×H) | 4460 x 2530 x 1430mm (14.63 x 8.3 x 4.69 ft) | |
| Package dimensions(L×W×H) | 5000 x 2200 x 1640mm (16.40 x 7.21 x 5.38 ft) | |
| Net weight & Gross weight | 1300kg (2866lb) & 1930kg (4255lb) | |
| Certification | CE | |
* Notice: above specifications are subject to change without prior notice.
all the above dimensions shall be subject to the metric system, with the imperial system for reference only.
