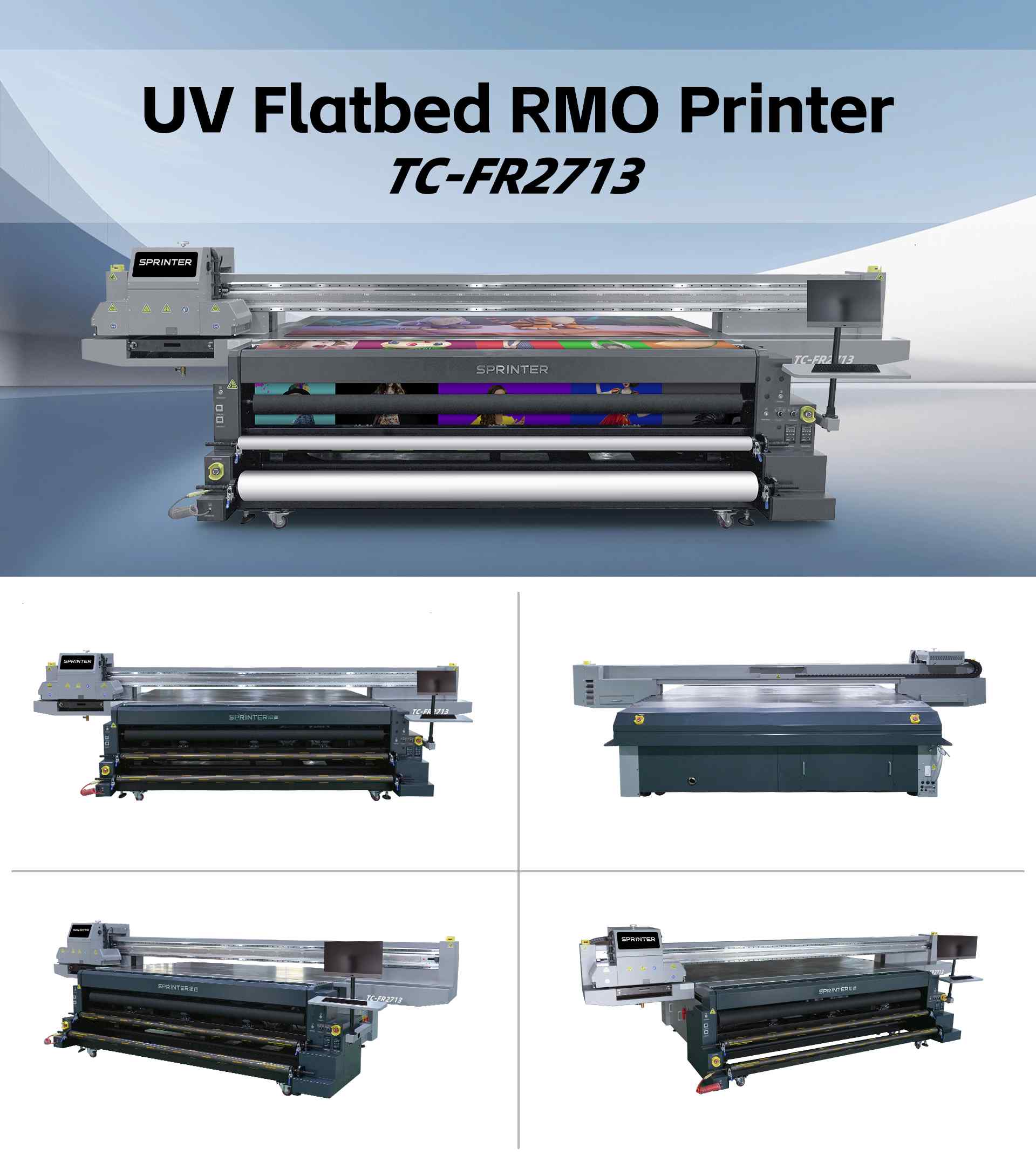

TrueColor TC-FR2713

2.70*1.30 Meter UV Flatbed RMO Printer

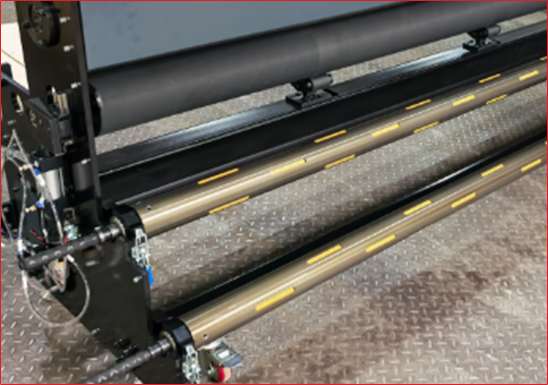

Sprinter TC-FR2713 has 2.7*1.3m sized flatbed and 2.5m roll structure, which provides a unique solution for both rigid board and roll media printings. With the 2 in 1 function, this one machine could finish different printing orders for user.


Key benefits

  • Available to print for both board and roll material.
  • Heavy duty machine, capable to run 24/7.
  • Impressive productivity.
  • Vivid image output with white and varnish color options.
  • Eco and energy-save LED ink-curing system.
  • Fast drying UV ink.

Advantages

  • SPRINTER UV digital printing has been widely used in different industries including advertisement and signs, furnituring, house decoration, arts and painting, package and label, vision designs,etc. Its outstanding advantage is that, UV printer could print on limitless materials like acrylic, glass, woods, MDF, steel, foarm boards, paper…
  • SPRINTER UV printer provides digital printing solutions which means it can work for orders without MOQ, and output image is easier to manage with original designs.

Machine systems

  • User-friendly control system
  • Image ripping system
  • Auto media height detection
  • Anti-crush system
  • Statics eliminating system
  • Media vacuum suction system
  • Board media registration system
  • Auto ink volum alarm system
Watch video

Get to know it

Equipment

With the world's top partners, to create the most outstanding quality

With the world's top partners, to create the most outstanding quality

Rich printing solutions, Makes you RICH


Product dimension diagram


one unit for one 20 feet container (2 wooden boxes)


Features

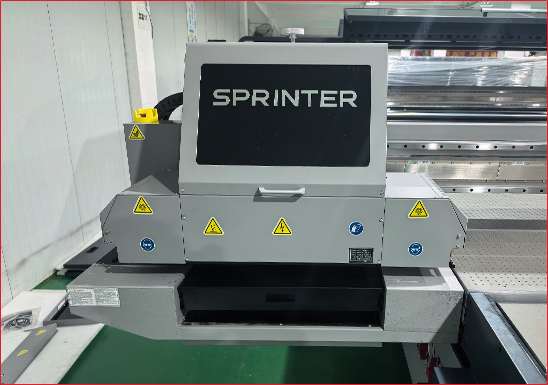

UV-LED Curing System

LED curing doesn't produce much heat. So heat-sensitve media can beprinted and cured without material damage. The curing power is adjustable.Besides, UV-LED curing system also has a longer lifetime. And it ismaintenance free and eco-friendly.

Anti-crush Protection

The carraige will stop moving when it hit subject in its way to protectthe printhead. It has two sensors on both sides of carriage.

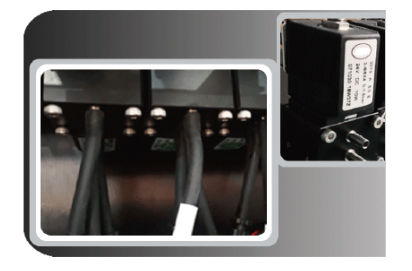

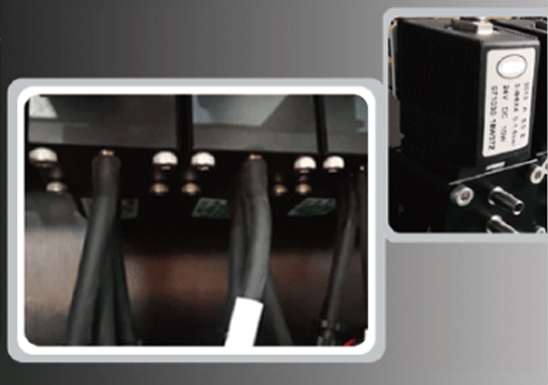

Ink valve

The ink valve system is opened and closed automatically bysolenoidvalve control.

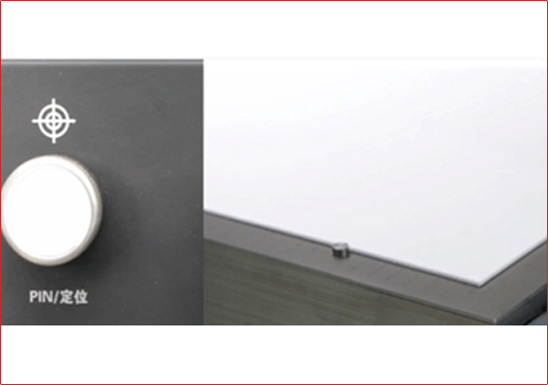

Media Locating Pins

There are pins around start point on fatbed. lt is convinient to operatewith a simple button. Media can be easily placed at the start point.

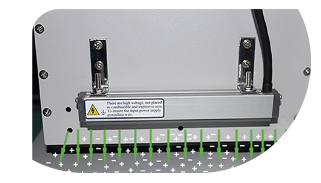

Statics Elimination

Statics exists on material, especial in a dry environment. With staticselimination system, it can efficiently decrease the route change of inkdropping caused by statics on material, ensure printing quality.

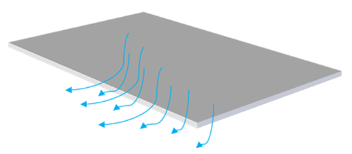

Flatbed Vacuum System

Media will be hold on flatbed with vacuum system flat and firmly in placeIt flatbed has been divided into 8 different areas for media ofdifferent sizes.

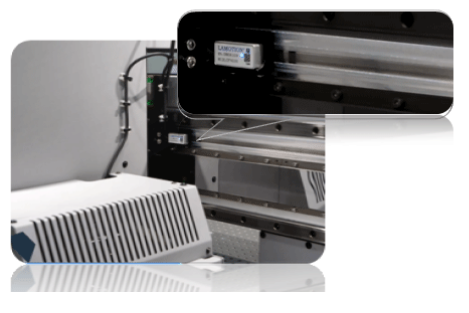

High-resolution encoder

The encoder on FR2713 machine is metal encoder with resolution upto1ym. lt can ensure printheads moving exactly where it directed. Makesure each ink-dot drop down the right position.

Auto media height detection

It can measure the heght of media and adapt to the height for printautomatically.lt can print media with thickness up to 110mm.

Applications

Embossed effects

Embossed effect refers to the image that you can feel its curves whenyou touch it with your finger. This has been widely used art/decorationpaintings.

Shiny Photos

With the usage of varnish, you can get a stunning shiny printing worksYou can choose to use varnish on part or full of the image.

Double-side seeing

It can print mutilple layers. So with FR3221 you can print color+white+cololmode, which brings out a vision of image from both front and back sides.

Print 3D Image

With the usage of varnish, you can get a stunning shiny printing worksYou can choose to use varnish on part or full of the image.

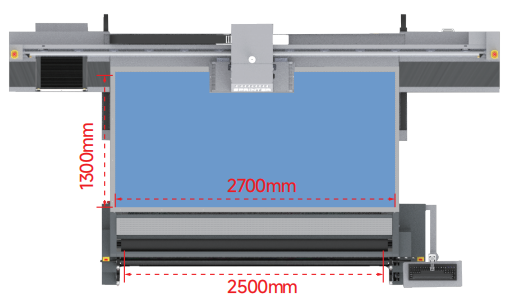

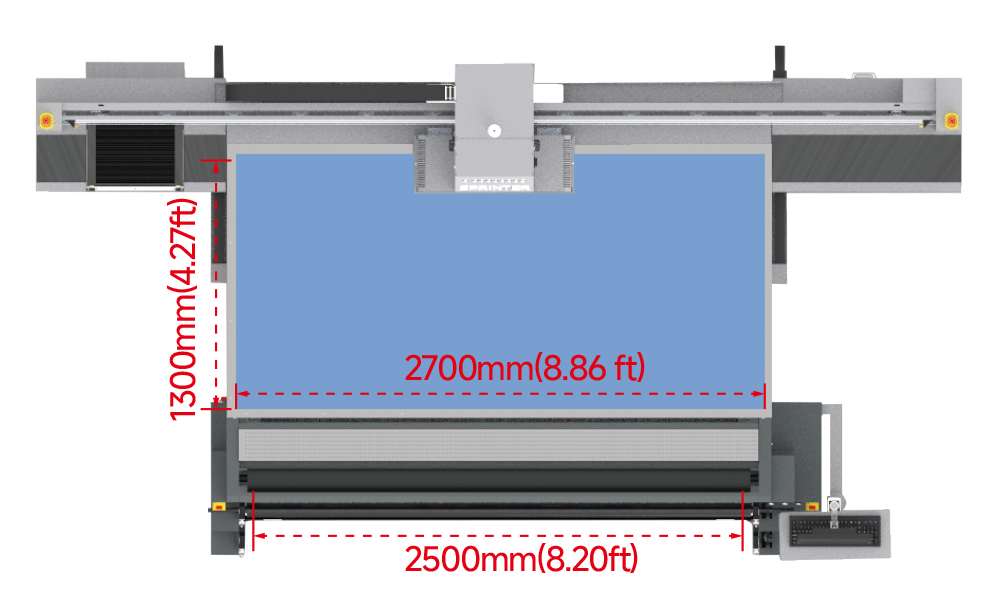

Printing size

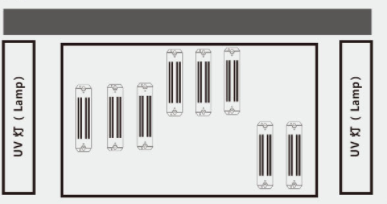

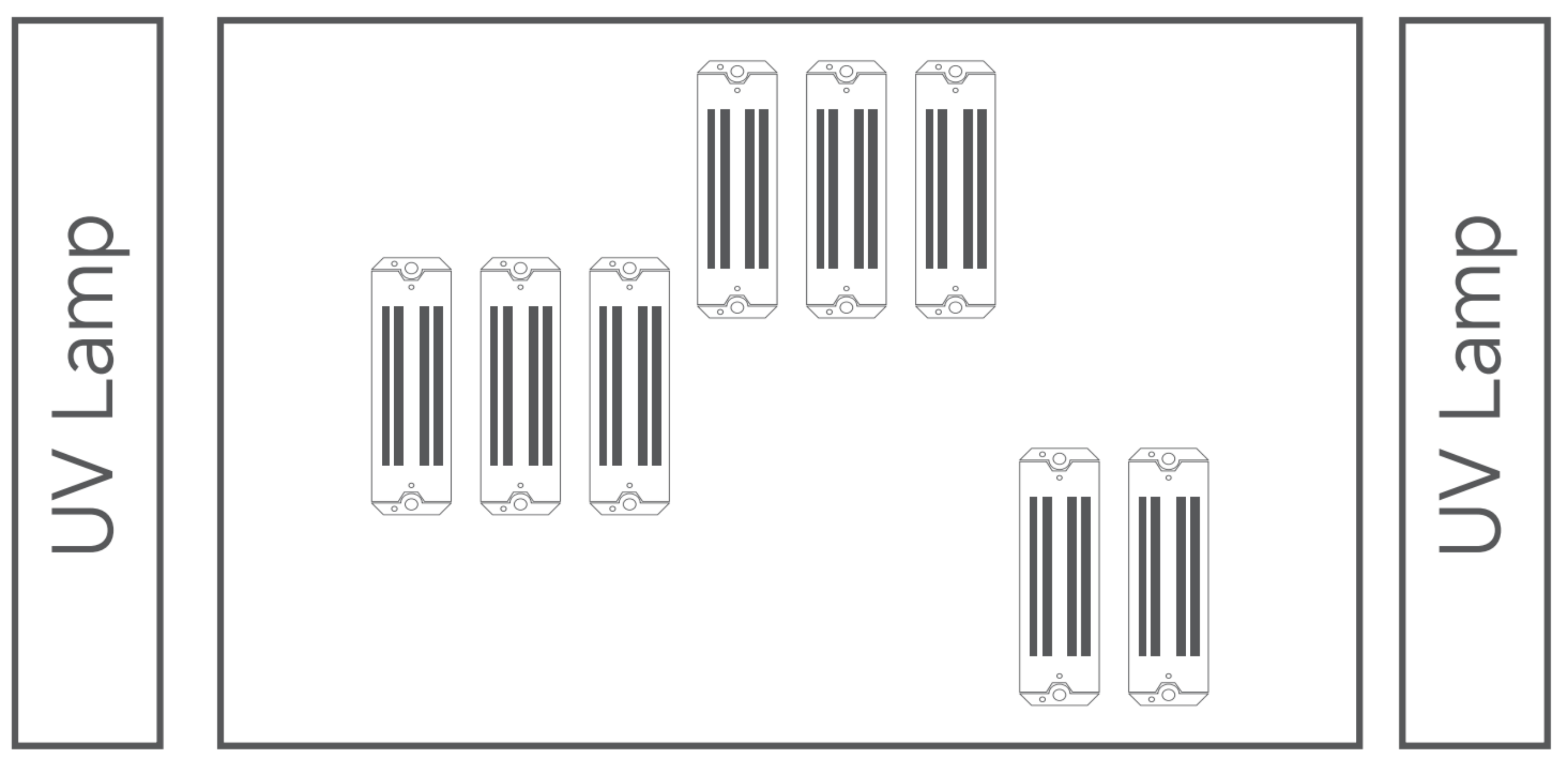

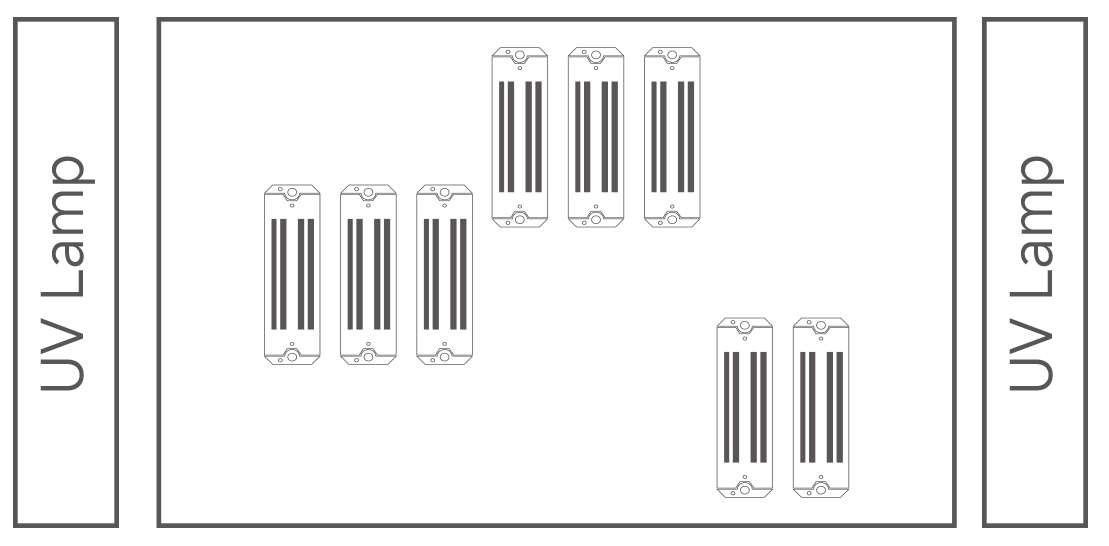

Printhead Soleplate


Technical Specs

odel TC-FR2713
Printhead RICOH G5/G6* 3 rows
Rigid material printing size: 2700 x1300mm (106.30 x 51.18 in)
Flexible media printing width: 2500mm (98.43in)
Rigid material Max size: 2750 x 1400mm (108.27 x 55.12 in)
Flexible media Max width: 2530mm (99.61in)
Power Maximum: 7KW; AC,50HZ/60HZ; 220v(±10%)>15A
Dimensions(L x W x H) 4740 x 2420 x 1470mm (186.61 x 95.28 x 57.87 in)

Package dimensions

(L x W x H)

5000 x 2205 x 1715mm (196.85 x 86.61 x 67.52 in)

& 3390 x 800 x 1050mm (133.46 x 31.50 x 41.34 in)(2package)

Net weight & Gross weight 1550kg (3410lb) & 2280kg (5027lb)
Resolution 600, 900, 1200, 1800, 2400dpi
Color CMYK, White/Varnish, LcLm(option)
Material thickness Rigid material:≤ 110 mm (4.33in);Flexible media:≤ 1 mm (0.039in)
lnk curing system UV LED curing system
Vacuum suction 4 zones
lnk UV LED curable ink
Color validity 3~5 years outdoor and 7~10 years indoor without color fading (use Sprinter ink)
lnk capacity 1.5L drums, automatic alarm for ink volum shortag
lnk supply system Auto negative ink supply
Media Glass、Acrylic、Ceramic、Metal、Paper、Wood、Leather、Flex Banner、Wallpaper、Car Sticker、Soft Film、PVC、PP、PE、PTFE……
PC Specification Window7/10/11  64bit  . RAM≥8G  . HDD≥500G  . SSD≥128G  . CPU≥Inte I5
RIP software Photoprint /PrintFactory/Caldera(option)
Operation environment Temperature:18℃~ 26℃
Humidity:40% ~ 70%
lmage format Tiff,JPEG,EPS,PDF
Certification  CE

*Notice: above specifications are subject to change without prior notice.
