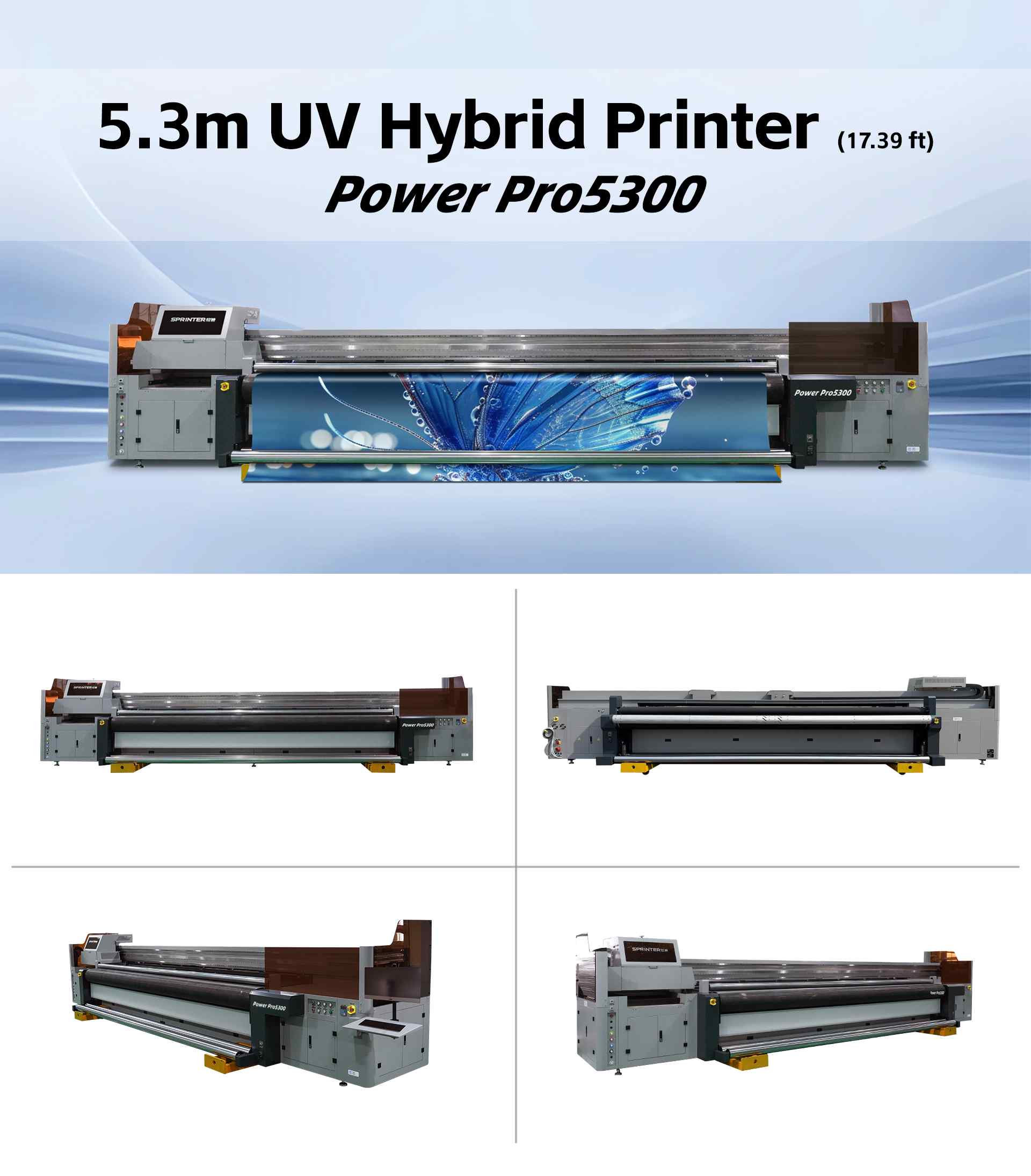

Power Pro 5300
5.3 Meters UV Hybrid Printer
Power Pro5300 is a heavy duty belt-conveyed UV hybrid printing machine, which is designed mainly for both roll to roll printing . 5.3meter width offers a solution of multiple smaller sized media to print at the same time.
Take out potential,insert possibilities!
Key benefits
New feeding up system
Special belt conveyor
Three-roll printing three times productivity
Special belt conveyor
Three-roll printing three times productivity
Application
Textured Painting
Custom Poster Design
Wallcovering
Canvas
Banner
Car decals
Features

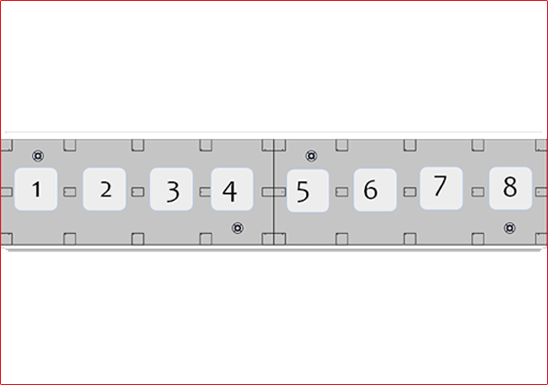

Vacuum System
Belt table has vacuum system with 8 zones separately controlled. Strong vacuum power to make media stick on flatbed be
lt.
Auto Media Height Detection
It can measure the height of media and adapt to the height for print automatically. It can print media with thickness up to 110mm.

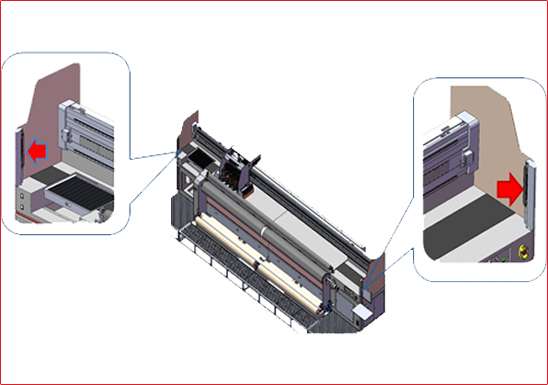

Human Sensing System
Machine carriage will stop running once the safety system senses a human or an object in its sensing area. It helps to prevent accident happened when machine is running fast.
Anti-crush Protection
The carriage will stop moving when it hit subject in its way to protect the printhead. It has two sensors on both sides of carriage.
High-resolution encoder
The encoder on machine is metal encoder with resolution up to 1 um. It can ensure printheads moving exactly where it directed. Make sure each ink-dot drop down the right position.
Statics Elimination
Statics exists on material, especial in a dry environment. With statics elimination system, it can efficiently decrease the route change of ink dropping caused by statics on material, ensure printing quality.

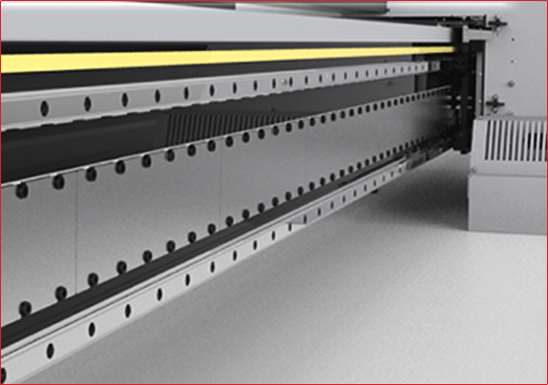

Magnetic Technology
Comparing to traditional servo motor+belt system, magnetic reduces transmission parts, cut down failures, and decrease maintenance rate. In particular, it provides higher speed for printhead moving, which increased productivity in a great scale.

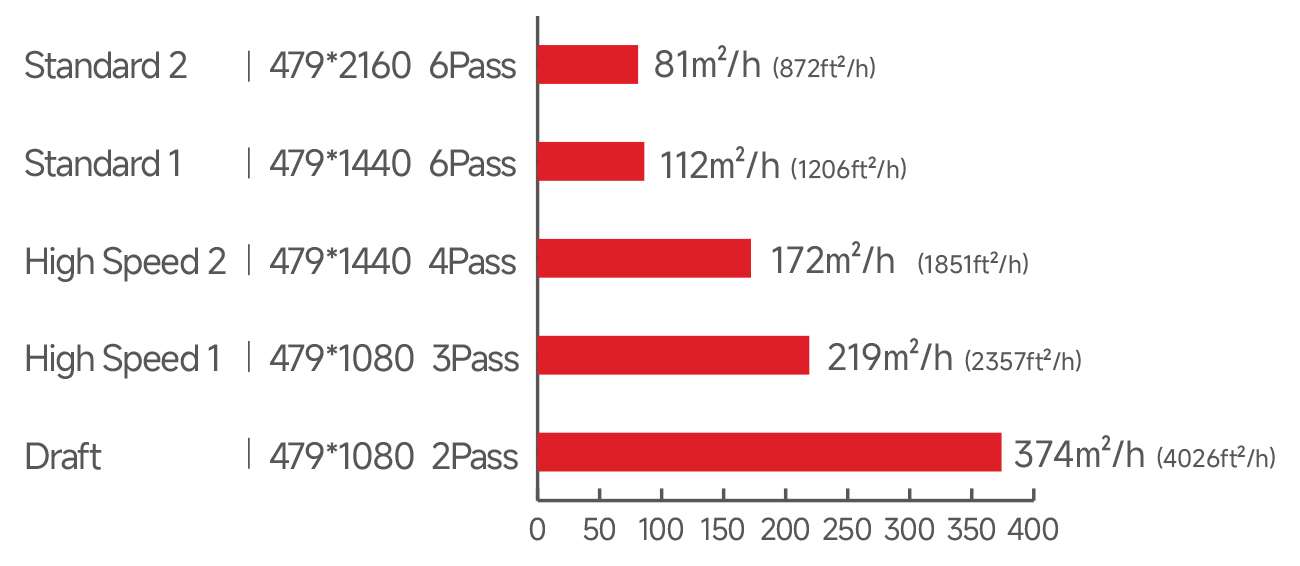

Print Speed
6 rows CMYK

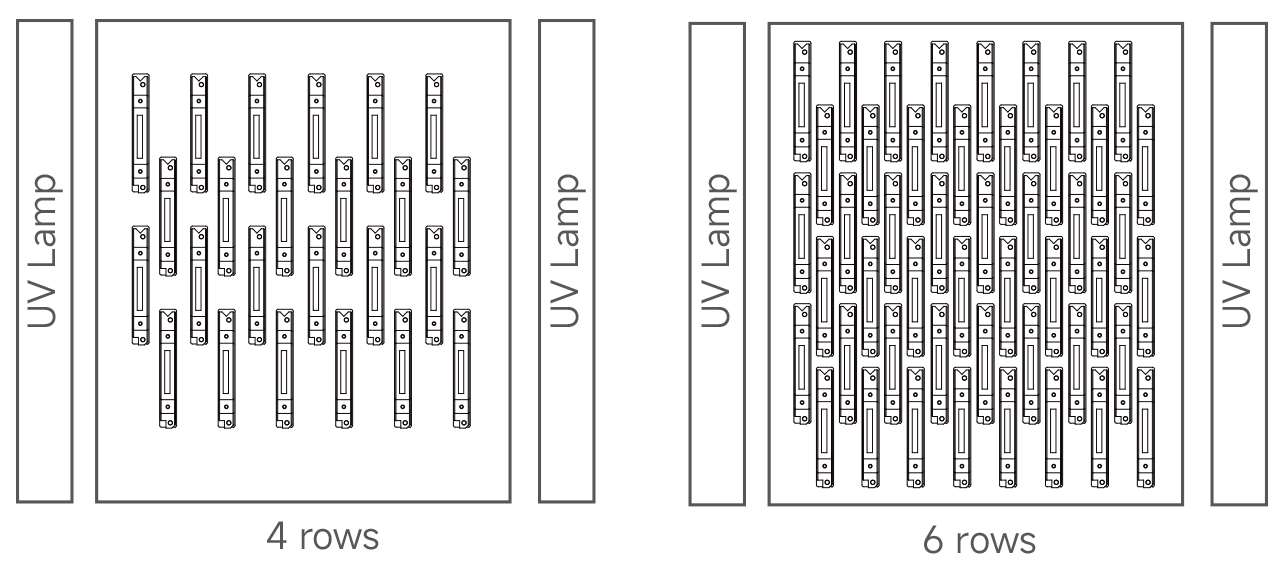

Printhead Soleplate
4 rows and 6 rows for KM1024a or KM1024i(option:Rioch G5/G6)
Three-roll printing three times productivity
Taking full advantage of the 3200mm(10.49ft) printing width, 2 media rolls (1.27m/50inch for each roll) can be mounted for simultaneous printing. Different ( or same) print jobs can be printed on the 2 separate rolls.
Users can select a preferred width separately for each roll. PP-320Pr helps to shorten delivery time and reduce workload.
* The option "3 feed-up kits" is required.

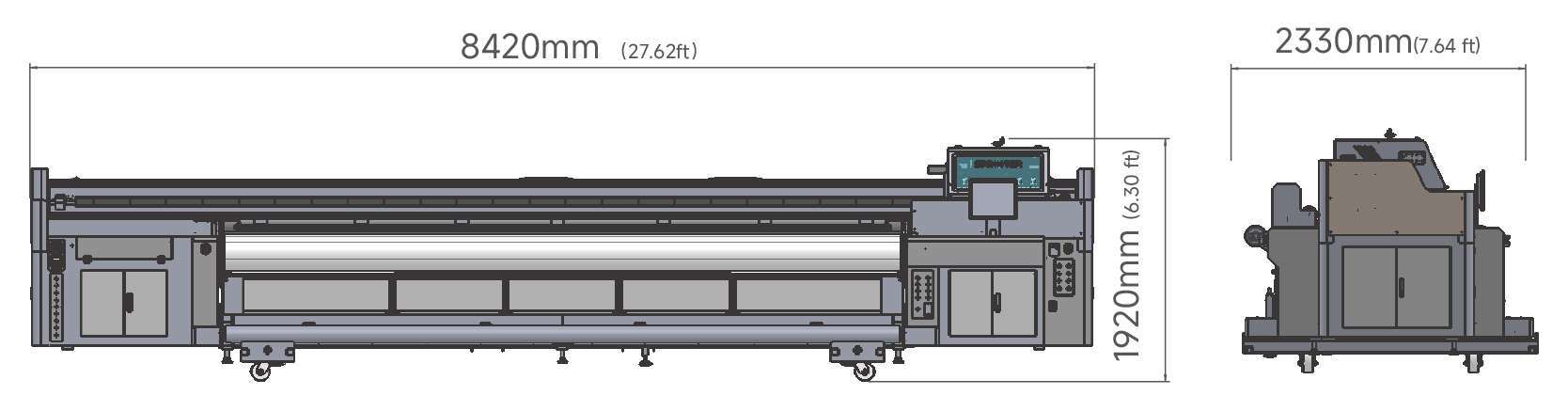

Dimension
Specification
| Model | Power Pro5300 |
| Printhead | Konica1024a 4rows / 6rows Konica1024i 4rows / 6rows |
| Resolution | 720, 1080 dpi / 1440, 2160 dpi |
| Color | CMYK, White/Varnish，Lc, Lm（Option） |
| Material thickness | 0~25mm（0~0.984in） |
| Ink curing system | UV LED curing system |
| Vacuum suction | 8 zones |
| Maximum printing width | 5300mm（17.39 ft） |
| Ink | UV curable ink |
| Color validity | 3~5 years outdoor and 7~10 years indoor without color fading (use Sprinter ink) |
| Ink capacity | 2.5L ink tank, automatic alarm for ink volum shortage |
| Ink supply system | Auto negative ink supply |
| Media | Paper、Leather、Wallpaper、Soft film、PVC、PP、PE… |
| PC specification | Win 7/10/11 64bit . RAM≥8G . HDD≥500G . SSD≥128G . CPU≥Inte I5 |
| Media handling | Belt conveyor |
| Transmission system | X-axis high-precision magnetic motor |
| RIP software | PrintFactory/Photoprint/Caldera (Option) |
| Operation environment | Temperature：18℃~ 26℃ |
| Humidity：40~70% | |
| Power supply | Power maximum:13.8KW; AC 50Hz/60Hz; 380V(±10%)＞15A |
| Image format | Tiff,JPEG,EPS,PDF |
| Dimensions(L x W x H) | 8420 x 2330 x 1920mm (27.62×7.64×6.30 ft) |
| Package dimensions(L x W x H) | 8420 x 2330 x 1920mm (27.62×7.64×6.30 ft) |
| Weight | 5600kg (12345.876lb) |
| Certification | CE |
* Notice: above specifications are subject to change without prior notice.
all the above dimensions shall be subject to the metric system, with the imperial system for reference only.
