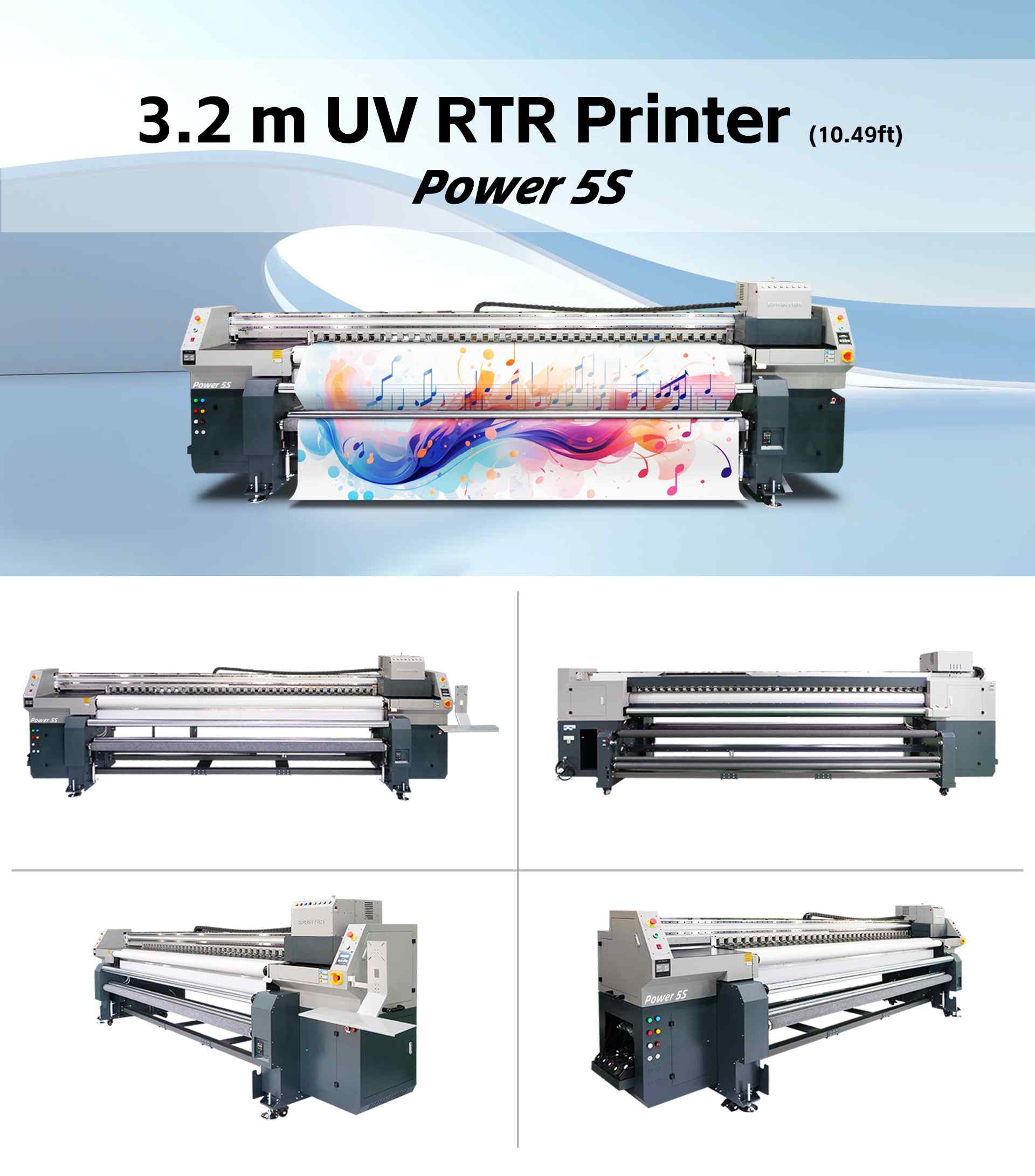

Power 5S
3.2 Meters Konica head Pinch Roller Type UV RTR Printer
This is an entry level UV RTR printer and it is built with pinch roller media feeding system. This model upgrade from Power 4S printer.It has full options of color, white, or even varnish printing options. Power 5S has been widely used to print advertising banners, wallpaper, wall fabrics materials.Power 5S special use Konica1024i or Konica 1024a printhead.
Key benefits
- Available to print for different roll materials
- Impressive productivity
- Stable working for long time
- Vivid image output with white and varnish color options
- Eco and energy-save LED ink-curing system
- Fast drying UV ink
Advantages
- SPRINTER UV digital printing has been widely used in different industries including advertisement and signs, furnituring, house decoration, arts and painting, package and label, vision designs,etc. Its outstanding advantage is that, UV printer could print on limitless materials like acrylic, glass, woods, MDF, steel, foarm boards, paper…
- SPRINTER UV printer provides digital printing solutions which means it can work for orders without MOQ, and output image is easier to manage with original designs.
Machine systems
- User-friendly control system
- Image ripping system
- Auto media height detection
- Anti-crush system
- Statics eliminating system
- Media suction platform
- Auto ink volum alarm system
- Backlit display
Watch video
Get to know it
Equipment
With the world's top partners, to create the most outstanding quality
Rich printing solutions, Makes you RICH

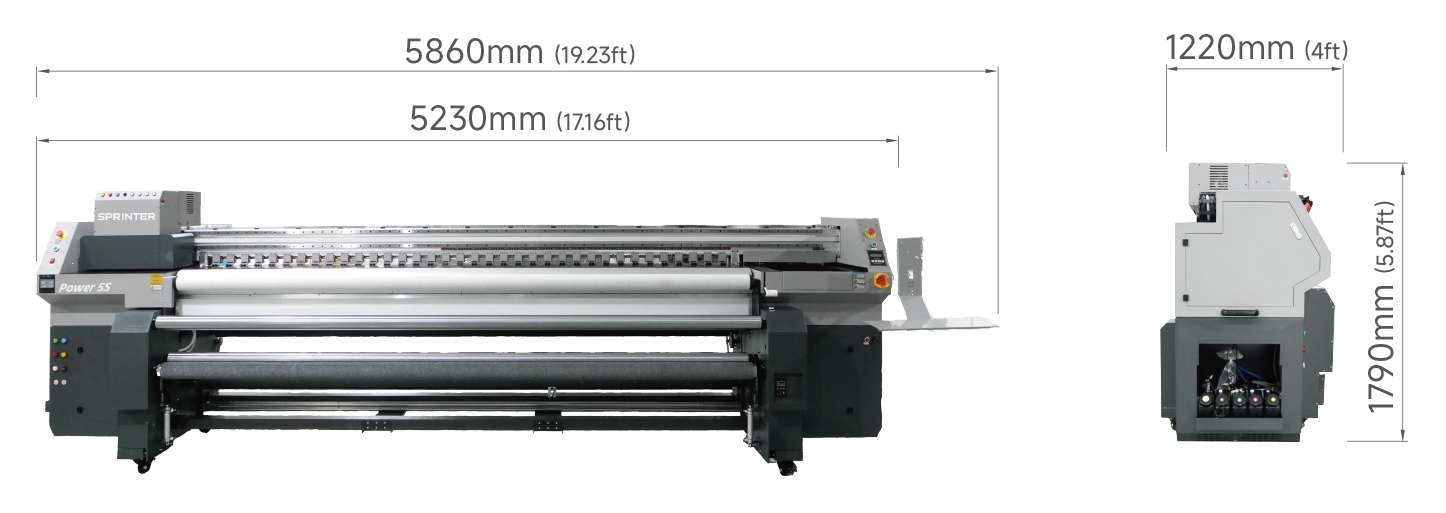

Product dimension diagram
Features

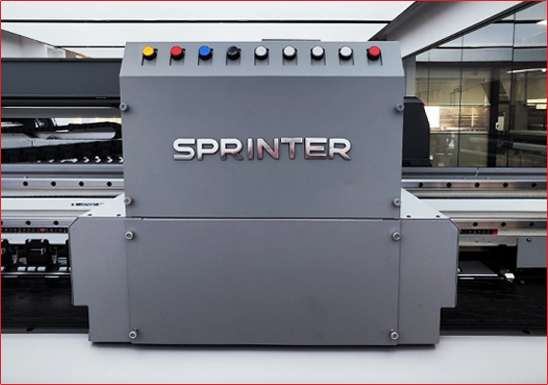

UV-LED Curing System
LED curing doesn't produce much heat. So heat-sensitve media can beprinted and cured without material damage. The curing power is adjustableBesides, UV-LED curing system also has a longer lifetime. And it ismaintenance free and eco-friendly.

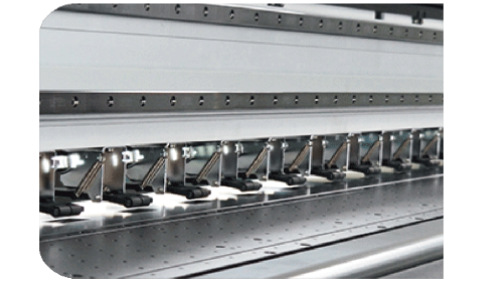

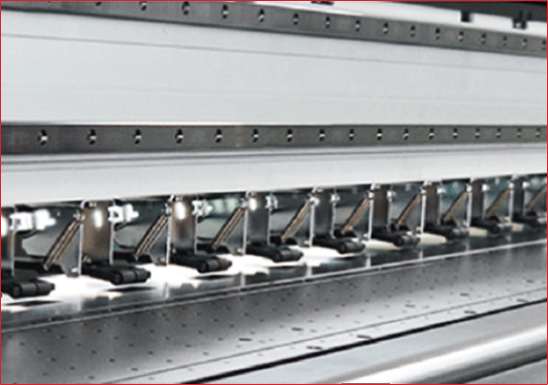

Pinch roller system
High precision platen,ensure the printing exquisite.Intensive pinchroller structure with balanced pressure,makes the media forwardprecisely.

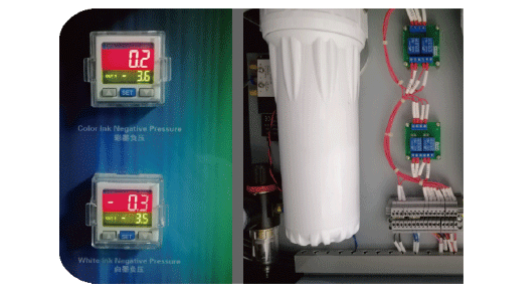

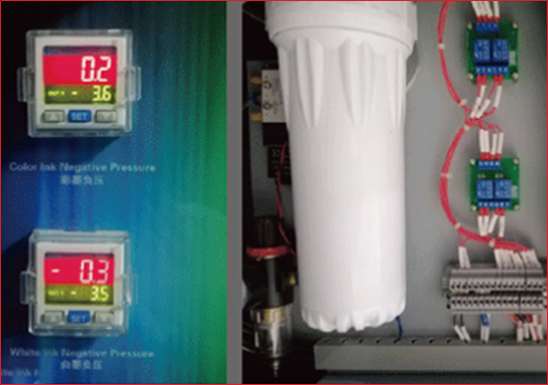

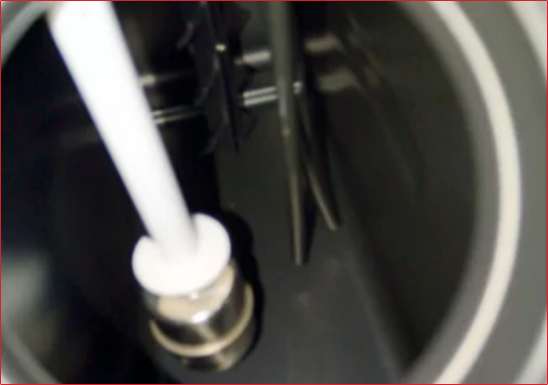

Use Vacuum Ink supply Systems
Use Vacuum Ink supply Systems that satisfy with long time printing.
Automatic solenoid valve control of ink system
The ink valve system is opened and closed automatically bysolenoidvalve control.

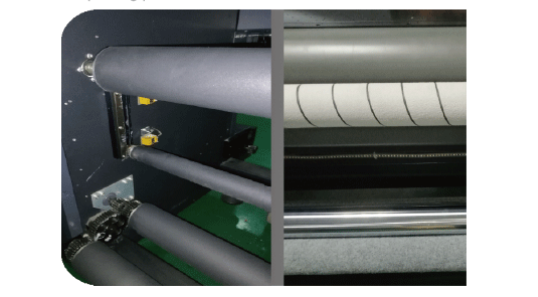

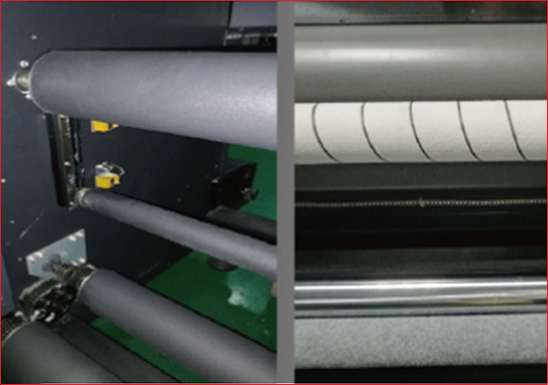

Material tension system
Adjust the media tension.Media-tighten roller is set both before andafter the printing process,feeding is smooth,take-up is neat in thewhole printing process.

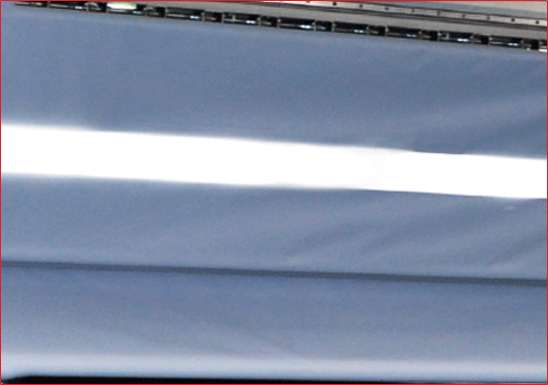

LED Lighting System

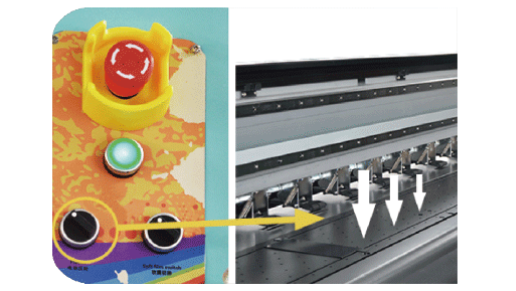

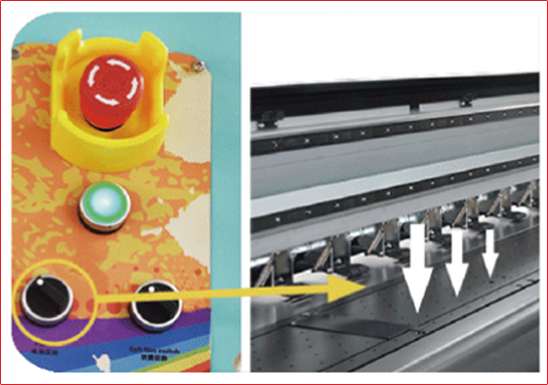

Platform suction wind power control system
Platform suction wind size adjustable, and can ensure variousmaterial in the best condition to attached to the platform surface.

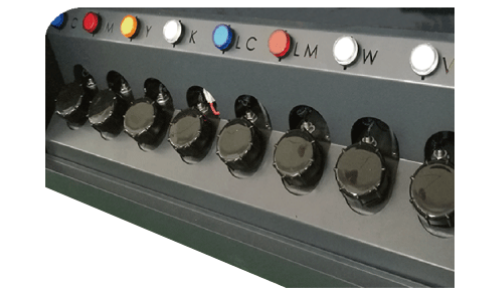

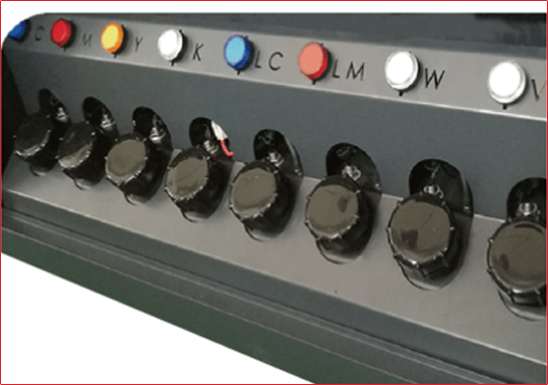

Ink consumption detection system
When anyone ink barrel color ink is aboutto run out,thissystem can point out what color ink you need to add ink.
Applications
Embossed effects
Embossed effect refers to the image that you can feel its curves whenyou touch it with your finger. This has been widely used art/decorationpaintings.
Shiny Photos
With the usage of varnish, you can get a stunning shiny printing works. You can choose to use varnish on part or full of the image.
Double-side seeing
It can print mutilple layers. So with FR3221 you can print color+white+colormode, which brings out a vision of image from both front and back sides.
Print 3D Image
3D-vision designs, as a creative culture, became more and more popular.This machine can exactly print out the 3D vision designs, make it looks real.

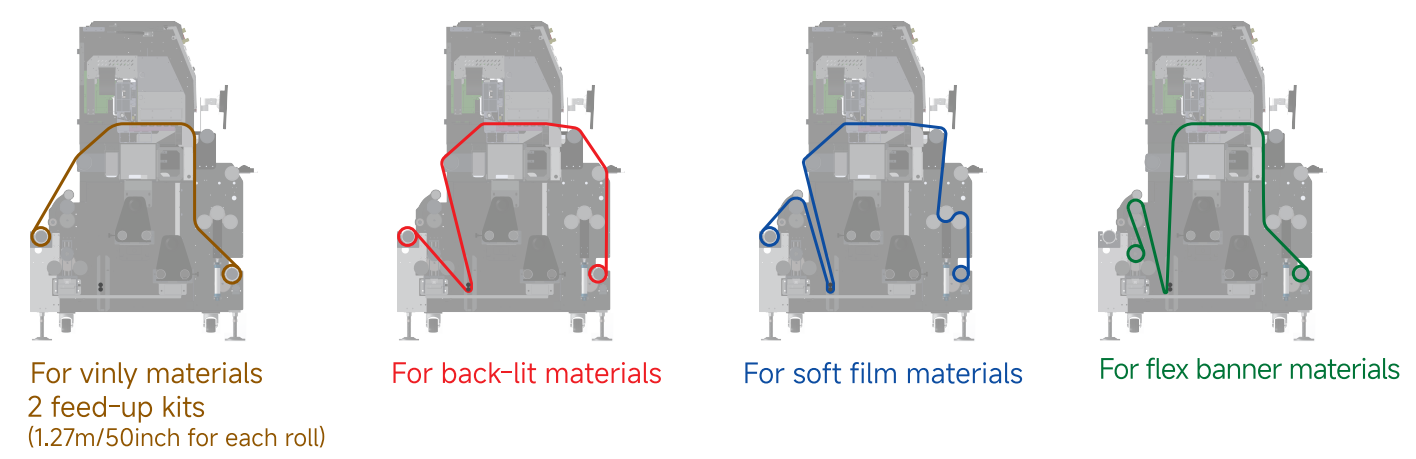

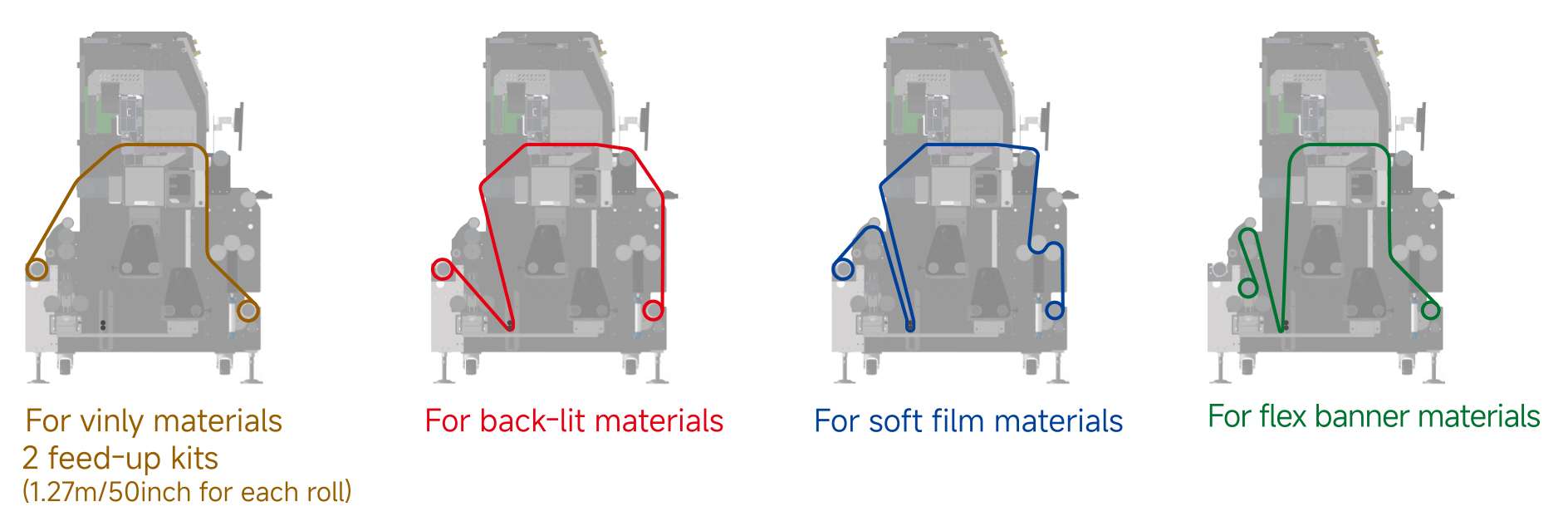

4 Ways take-up and feed-up system for different materials

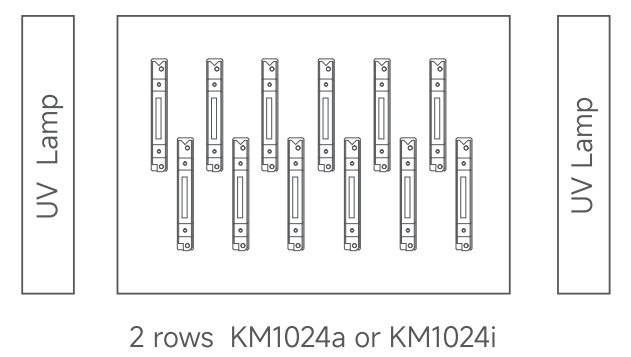

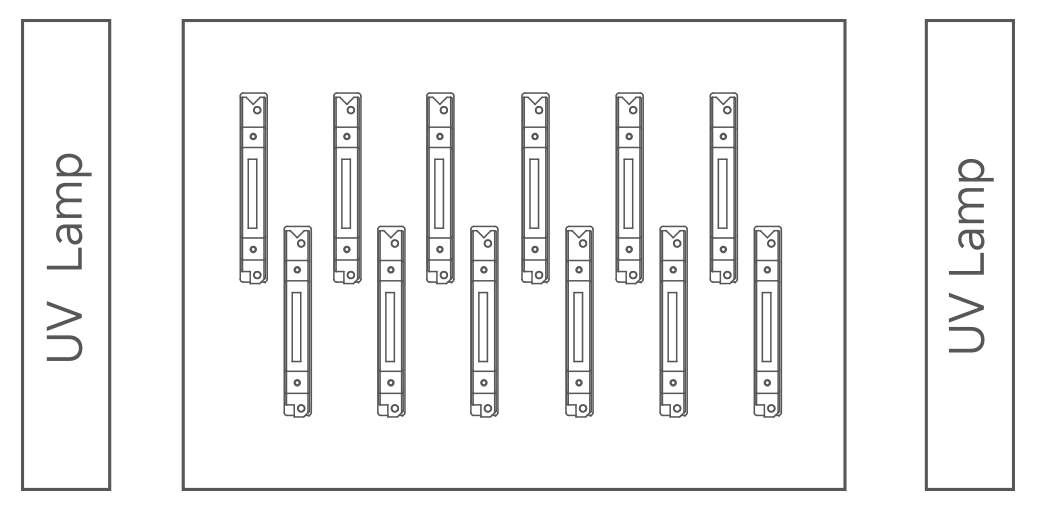

Printhead Soleplate

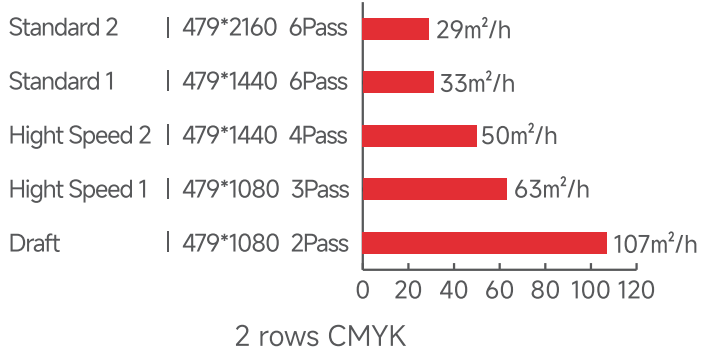

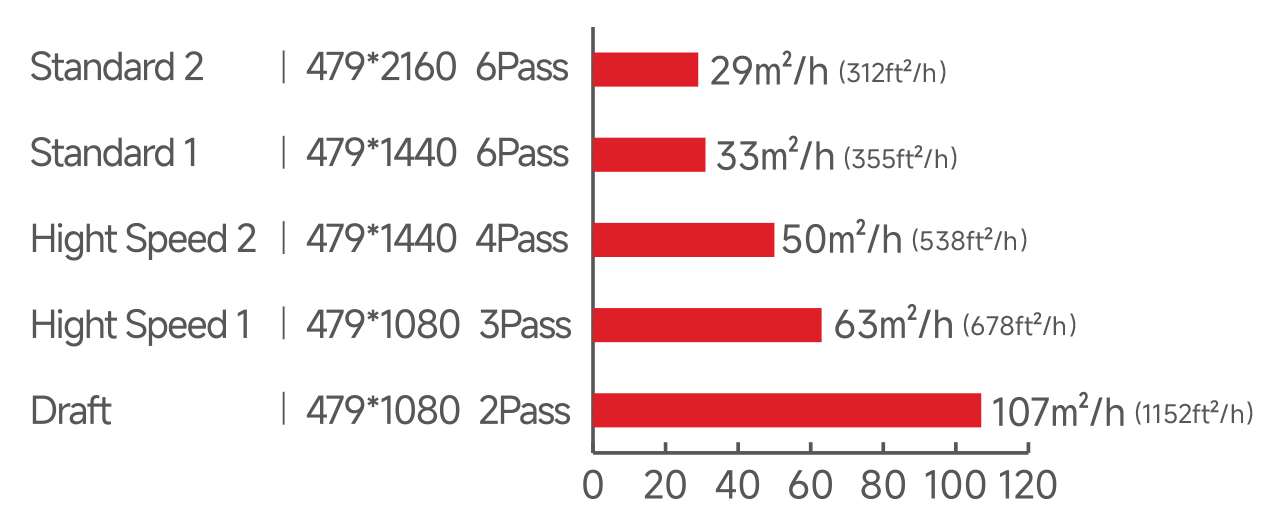

Print Speed
Technical Specs
| Model | POWER 5S |
| Printhead | Konica1024a/1024i 2 rows |
| Resolution | 479, 1080, 1440,2160dpi |
| Color | CMYK, White/Varnish, LcLm(option) |
| Material thickness | 0~4mm(0.157in) |
| Ink curing system | UV LED curing system |
| Vacuum suction | 4 zones |
| Max printing width | 3200mm(126in) |
| Ink | UV LED curable ink |
| Color Validity | 3~5 years outdoor and 7~10 years indoor without color fading (use Sprinter ink) |
| Ink capacity | 1.5L drums, automatic alarm for ink volum shortage |
| Ink supply system | Auto Negative ink supply |

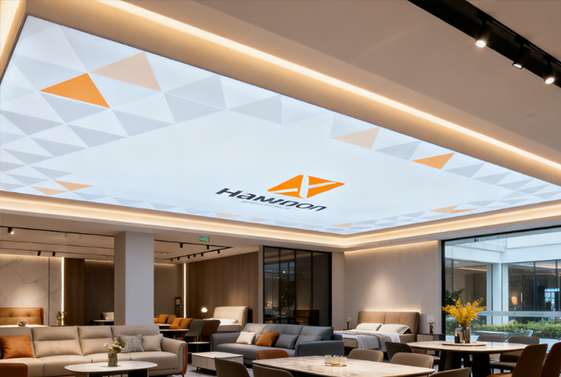

| Media | Leather、Wallpaper、Soft Film、PVC、PP、PE...... |
| PC Specification | Window7/10/11 64bit .RAM>8G .HDD>500G .SSD>128G .CPU>Inte l5 |
| RIP software | Photoprint /PrintFactory/Caldera(option) |
| Operation environment |
Temp: 18~26℃ Humidity: 40~70% |
| Power supply | Power Maximum:3.2KW; AC,50HZ/60HZ:220v(±10%)>15A |
| Image format | Tiff,JPEG,EPS,PDF |
| Dimension(L x W x H) | 5860x1220x1790mm(230.71x48.03x70.47in) |
| Package dimensions(L x W x H) | 5300x1150x1950mm(208.66x45.28x76.77in) |
| Net weight&Gross weight) | 2400kg(5291.09lb)&1520kg(3350.02lb) |
| Certification | CE |
*Notice: above specifications are subject to change without prior notice.
