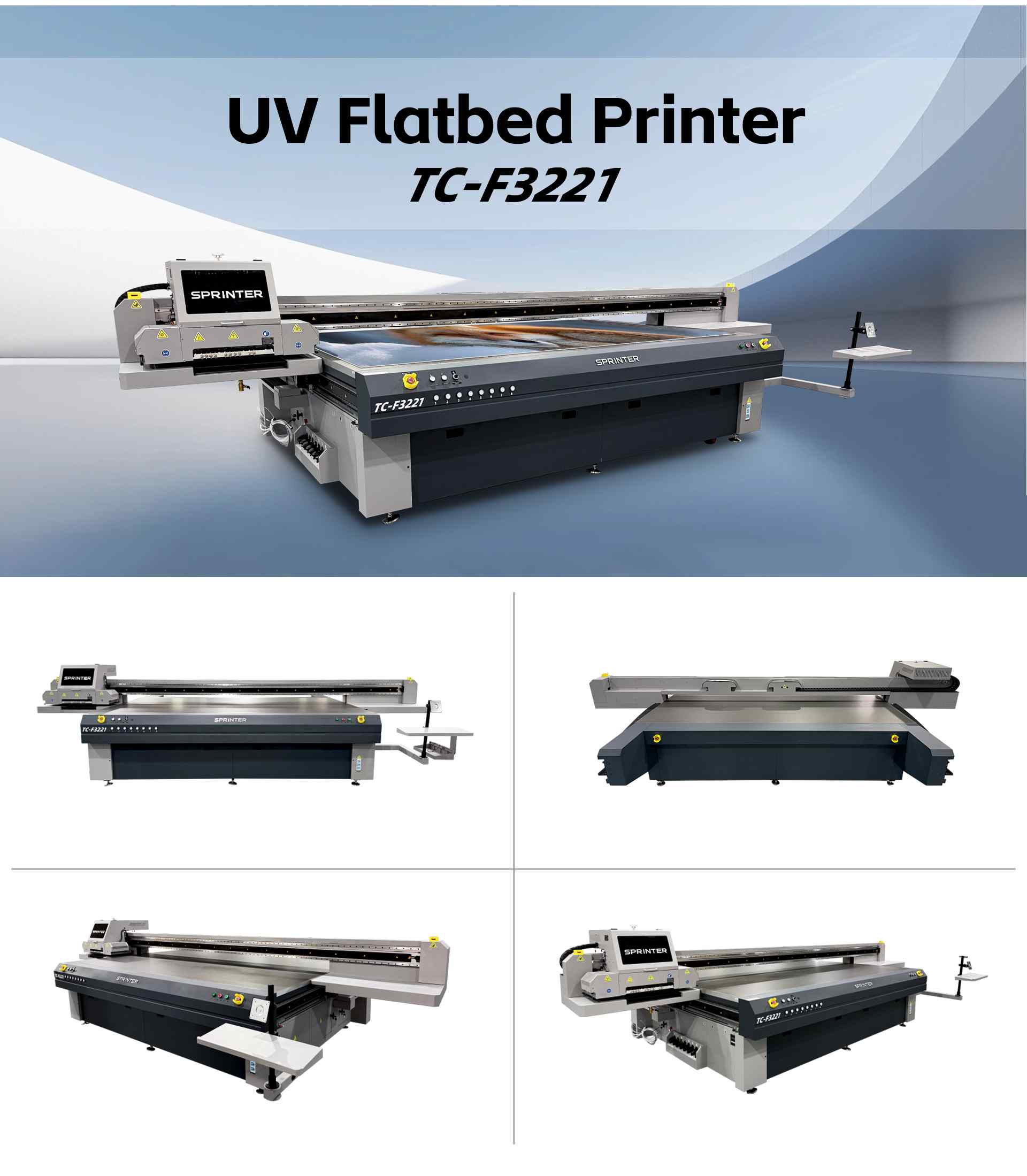

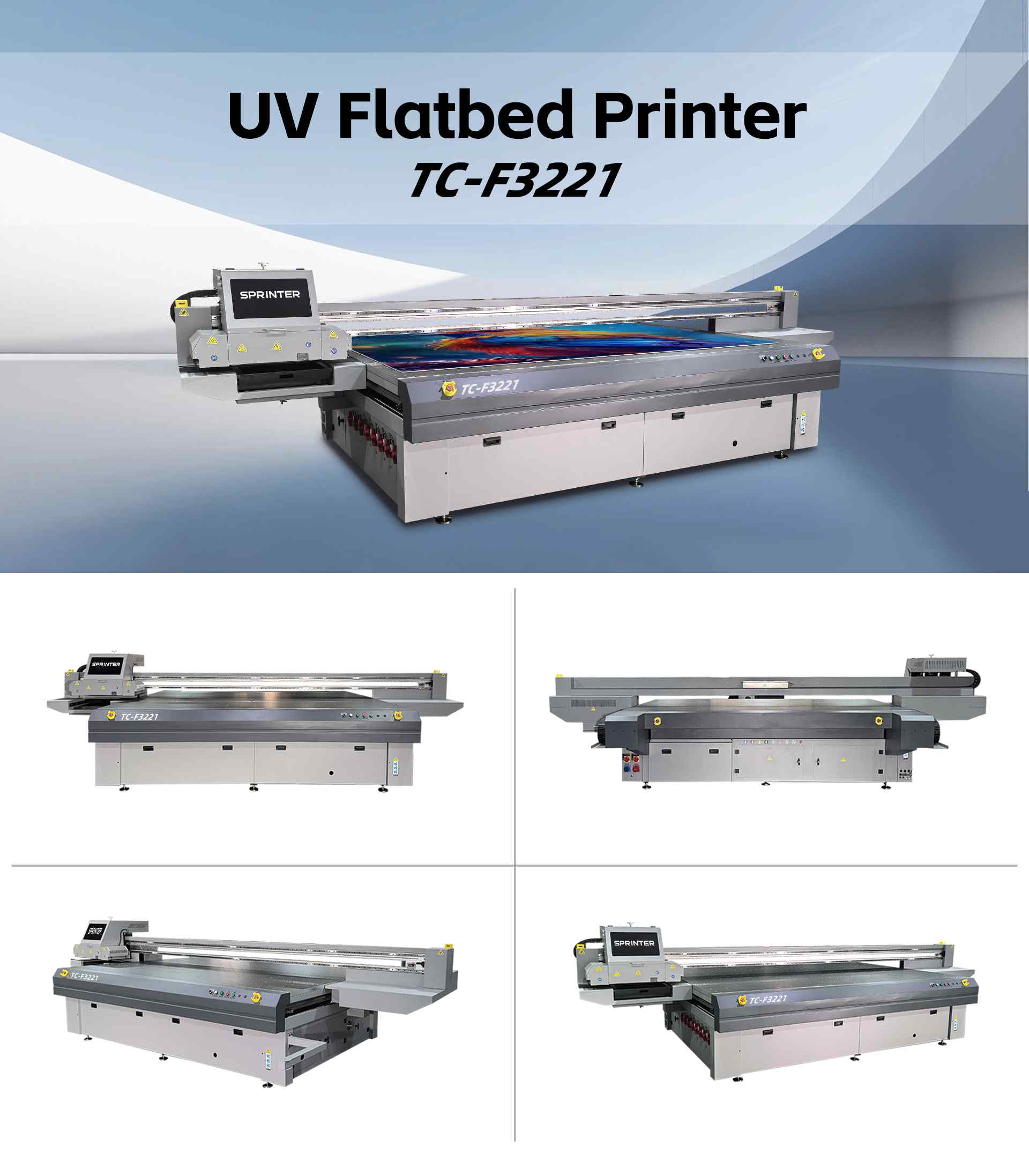

TrueColor TC-F3221
3.2*2.1 Meters UV Flatbed Printer
Sprinter TC-F3221 is a large size flatbed printer to print on big materials. It a perfect choice for 2*3m board sheets printing. It has all color options and different print modes to work for different printing orders.
Key benefits
Large-format flatbed printing
4-row RICOH printheads for efficient printing
With metal encoder and XY-axis high-precision magnetic motor
4-row RICOH printheads for efficient printing
With metal encoder and XY-axis high-precision magnetic motor
Application
Glass
Decorative Painting
Wall Sticker
Ceramic
Feature Wall
Floor Mat
Entrance Hall
Signage
Screen
Corrugated Paper
Packaging box
Bar Counter
Desk
Features

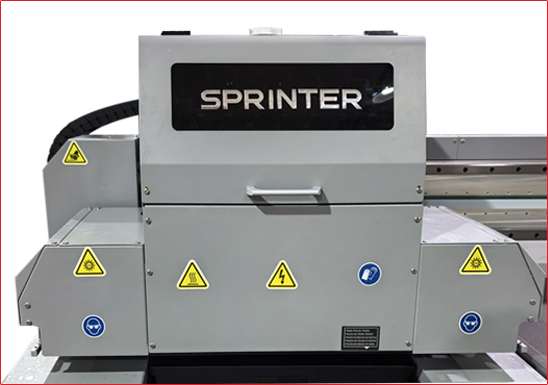

UV-LED Curing System
LED curing doesn't produce much heat. So heat-sensitive media can be printed and cured without material damage. The curing power is adjustable. Besides, UV-LED curing system also has a longer lifetime. And it is maintenance free and eco-friendly.
Auto Media Height Detection
It can measure the height of media and adapt to the height for print automatically. It can print media with thickness up to 110mm.
Auto Ink Lock
The ink valve system is opened and close dautomaticlly by solenoid valve control.
Media Locating Pins
There are pins around start point on flatbed. It is convenient to operate with a simple button. Media can be easily placed at the start point.
Anti-crush Protection
The carriage will stop moving when it hit subject in its way to protect the printhead. It has two sensors on both sides of carriage.
High-resolution encoder
The encoder on machine is metal encoder with resolution up to 1 um. It can ensure printheads moving exactly where it directed. Make sure each ink-dot drop down the right position.

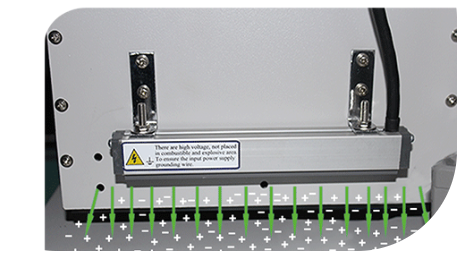

Statics Elimination
Statics exists on material, especial in a dry environment. With statics elimination system, it can efficiently decrease the route change of ink dropping caused by statics on material, ensure printing quality.
Flatbed Vacuum System
Media will be hold on flatbed with vacuum system flat and firmly in place. It flatbed has been divided into 8 different areas for media of different sizes.

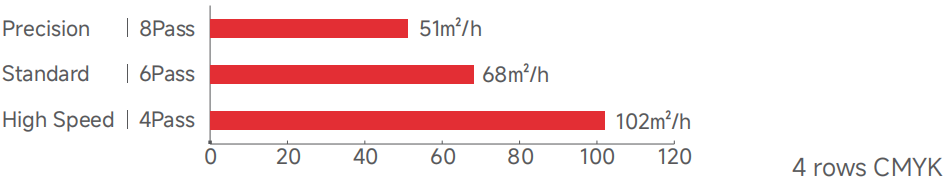

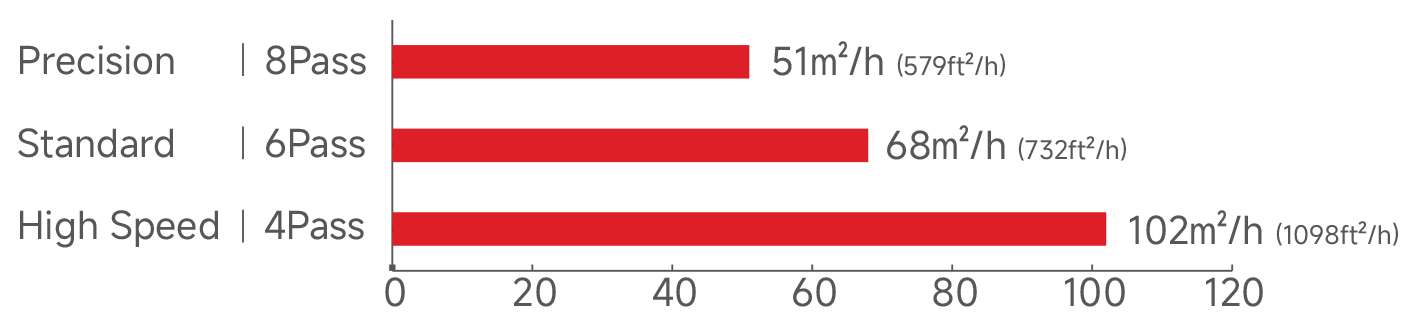

Print Speed
4 rows CMYK

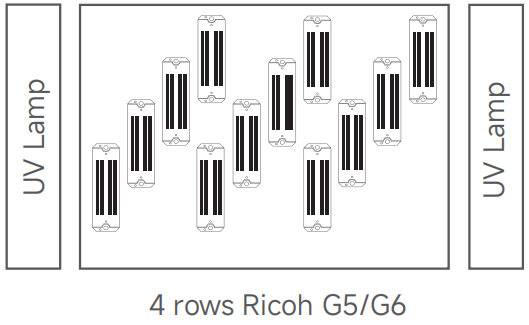

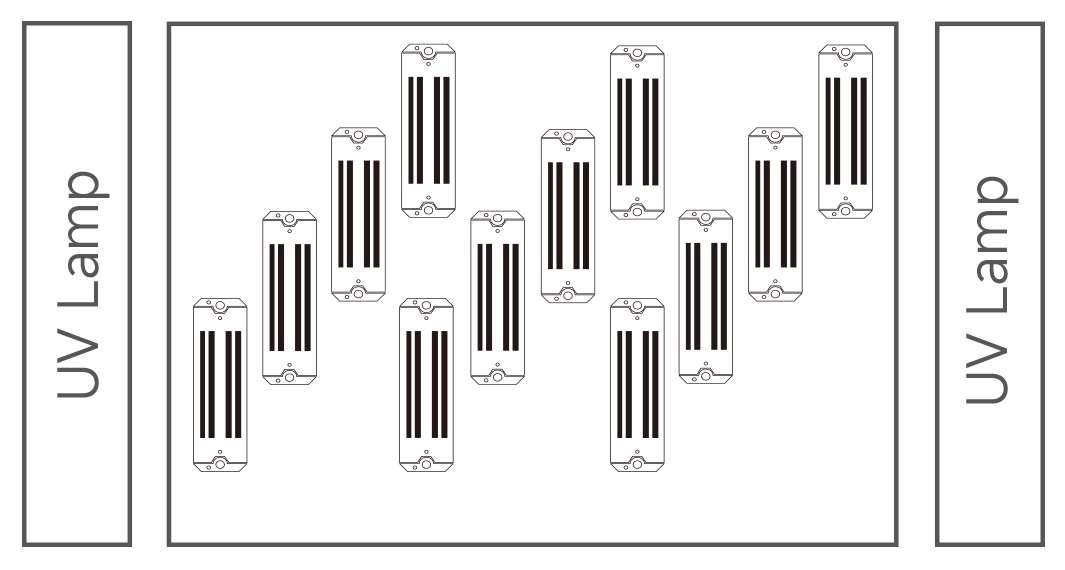

Printhead Soleplate
4 rows Ricoh G5/G6

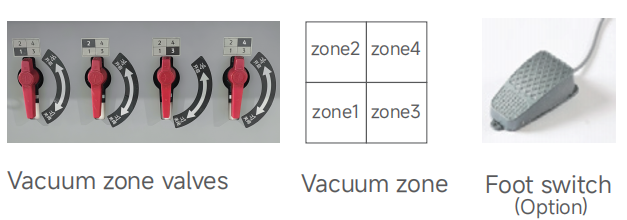

Vacuum

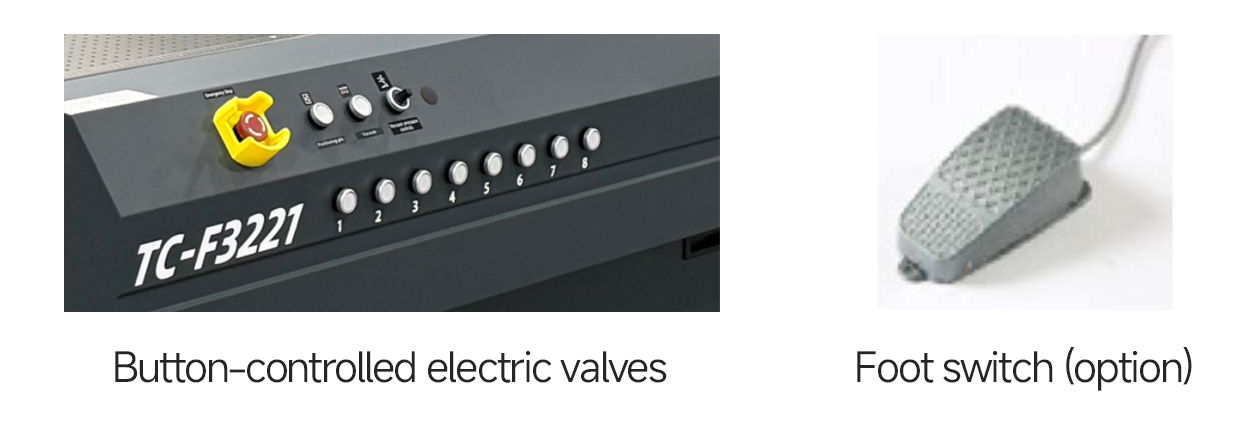

The vacuum area to hold media is divided into two sections in the X direction of the table, and can be adjusted to the media size you use by opening/closing valves.

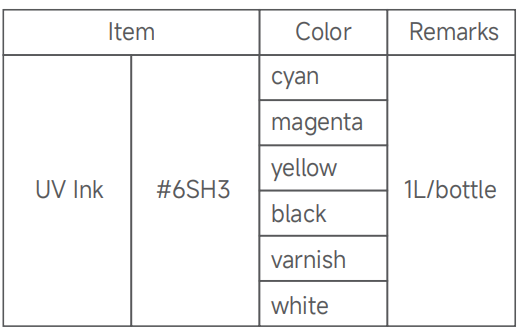

Ink Supplies
| Item | Color | Remarks | |
| UV Ink | #6SH3 | cyan | 1L/bottle |
| magenta | |||
| yellow | |||
| black | |||
| varnish | |||
| white | |||
Inks and substrates:
•As physical properties of ink (adhesion, weather resistance etc.) are different depending on media, please be sure to have a print test in advance.
•Depending on the application, primers, other surface treatment or surface protection such as lamination may be necessary.
Safety notice:
This product is equipped with UV irradiation equipment. Please pay attention to the following notes in order to use safely.
•Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
•Depending upon print mode, some VOC emittance from printed parts not yet cured and hardened may occur.
•In addition, please be sure to read and follow the instructions and guidelines of the manual carefully.
•As physical properties of ink (adhesion, weather resistance etc.) are different depending on media, please be sure to have a print test in advance.
•Depending on the application, primers, other surface treatment or surface protection such as lamination may be necessary.
Safety notice:
This product is equipped with UV irradiation equipment. Please pay attention to the following notes in order to use safely.
•Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
•Depending upon print mode, some VOC emittance from printed parts not yet cured and hardened may occur.
•In addition, please be sure to read and follow the instructions and guidelines of the manual carefully.

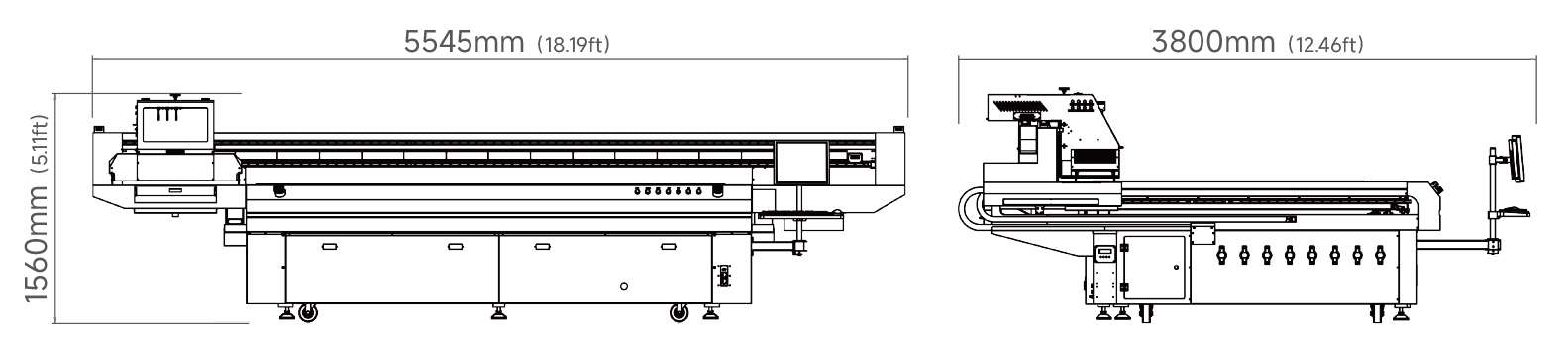

Dimension
Specification
| Model | TC-F3221 | |
| Printhead | RICOH G5/G6 4 rows | |
| Resolution | 600, 900, 1200, 1800, 2400dpi | |
| Color | CMYK, White/Varnish LcLm(Option) | |
| Material thickness | 0~110mm(4.33 in) | |
| Ink curing system | UV curing system | |
| Vacuum suction | 4 zones | |
| Print size |
Maximum Printing Area Maximum Material Size |
3200*2100mm (10.49 x 6.89 ft) 3220*2120mm (10.56 x 6.95 ft) |
| Ink | UV LED curable ink | |
| Color validity | 3~5 years outdoor and 7~10 years indoor without color fading (use Sprinter ink) | |
| Ink capacity | 1.5L drums, automatic alarm for ink volum shortage | |
| Ink supply system | Auto Negative ink supply | |
| Media | Glass、Acrylic、Ceramic、Metal、Paper、Wood、Leather、PVC、PP、PE、PTFE…… | |
| PC specification | Window7/10/11 64bit . RAM≥8G . HDD≥500G . SSD≥128G . CPU≥Inte I5 | |
| Transmission system | XY-axis high-precision magnetic motor | |
| RIP software | PhotoPrint/PrintFactory/Caldera(option) | |
| Operation environment |
Temperature 18℃~ 26℃ Humidity 40% ~ 70% |
|
| Power supply | Power Maximum: 7.5KW; AC,50HZ/60HZ; 220v(±10%)＞15A | |
| Image format | Tiff,JPEG,EPS,PDF | |
| Dimensions(L×W×H) | 5545 x 3800 x 1560mm(18.19 x 12.46 x 5.11 ft) | |
| Package dimensions(L×W×H) | 6010 x 2970 x 1990mm(19.71 × 9.74 × 6.52 ft) | |
| Net weight & Gross weight | 2000kg(4409lb) & 2600kg(5732lb) | |
| Certification | CE | |
* Notice: above specifications are subject to change without prior notice.
all the above dimensions shall be subject to the metric system, with the imperial system for reference only.
