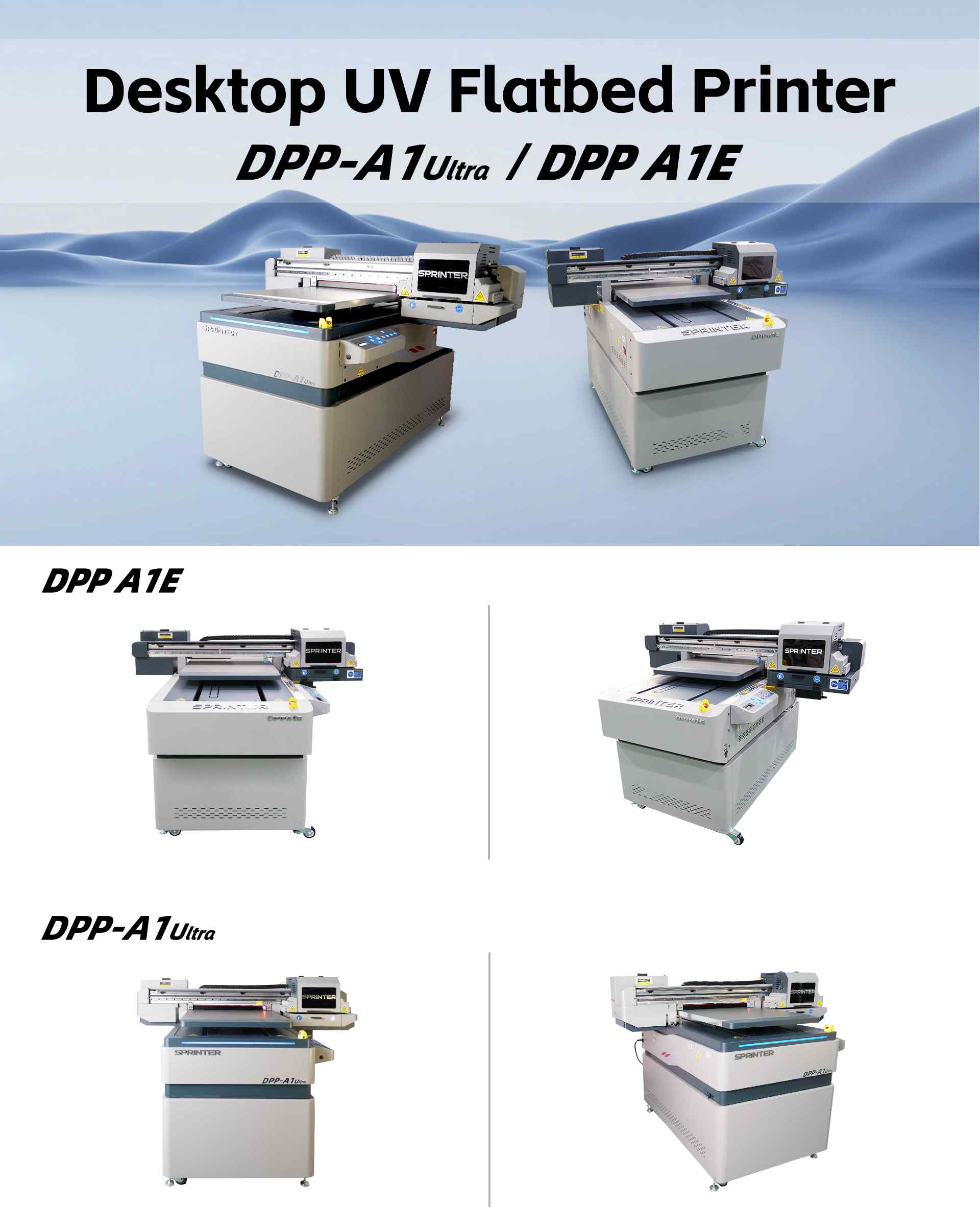

DPP A1 Ultra
600mm x 900mm Flatbed printer
DPP A1 Ultra is a brand new printer of 2025 which upgrade from DPP A1E . In the range, which is ideal for print companies who have a limited amount of space. As you would expect, it is very robust and extremely well engineered.
Key benefits
The new material height-detective system
Optional for rotory system
Visual system(DPP A1Ultra)(option)
New appearance design(DPP A1Ultra)
Optional for rotory system
Visual system(DPP A1Ultra)(option)
New appearance design(DPP A1Ultra)
Application
Embossed Effect
Bottle
Wood
Phonecase
Ceramic
Arts And Crafts
Glass
Badge
Card Holder
Customized Signs
Lipstick
Lighter
Features

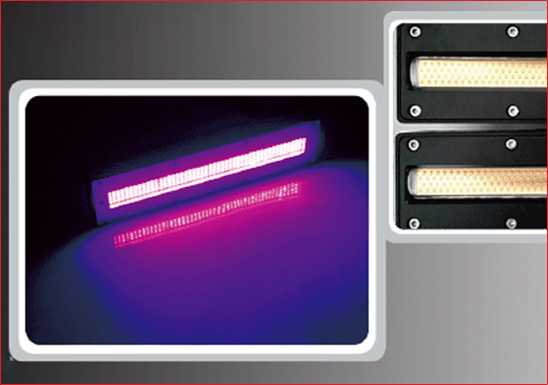

Water-cooled LED-UV curing

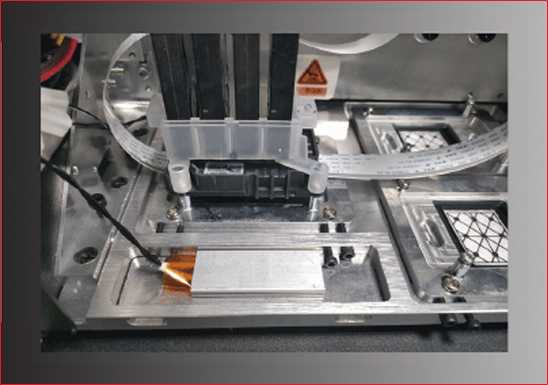

Ink temperature control system

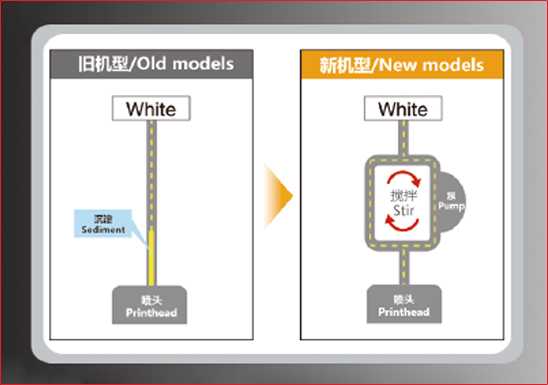

White Ink Stirring Function

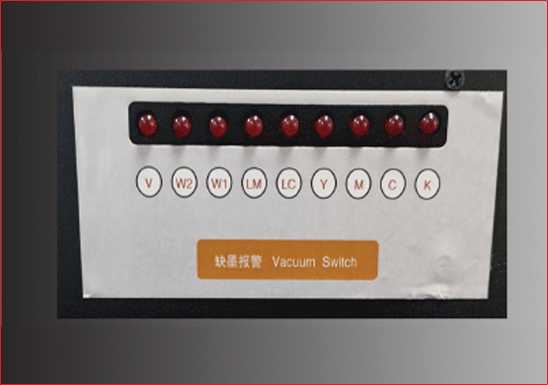

Liquid level alarm system

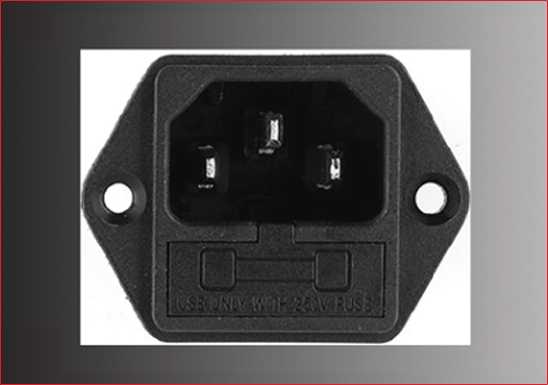

Low power design

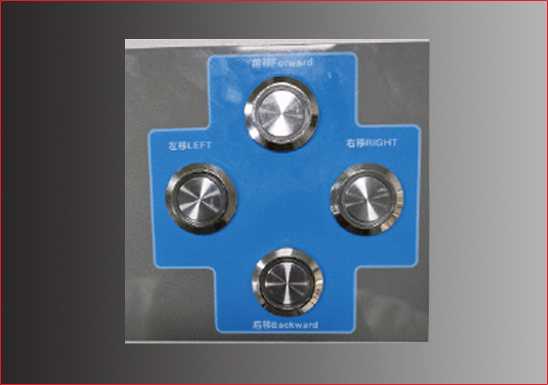

External motion system control

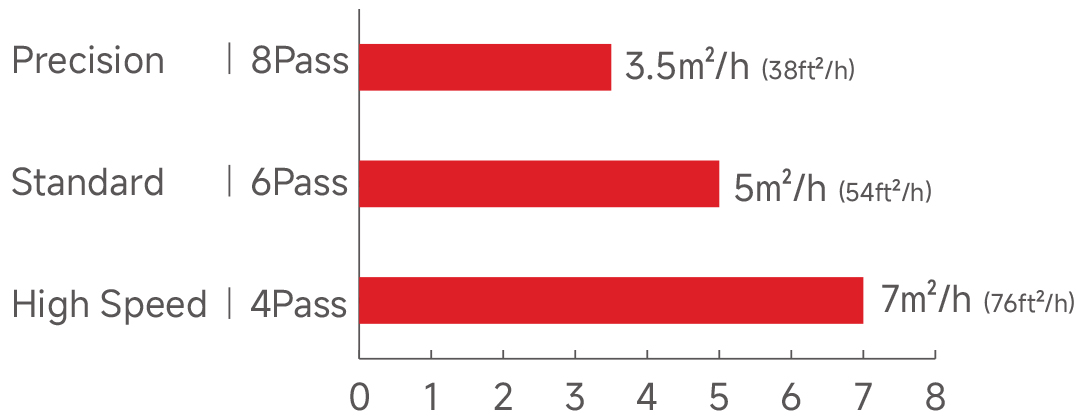

Print Speed
3 Head CMYK+W+V

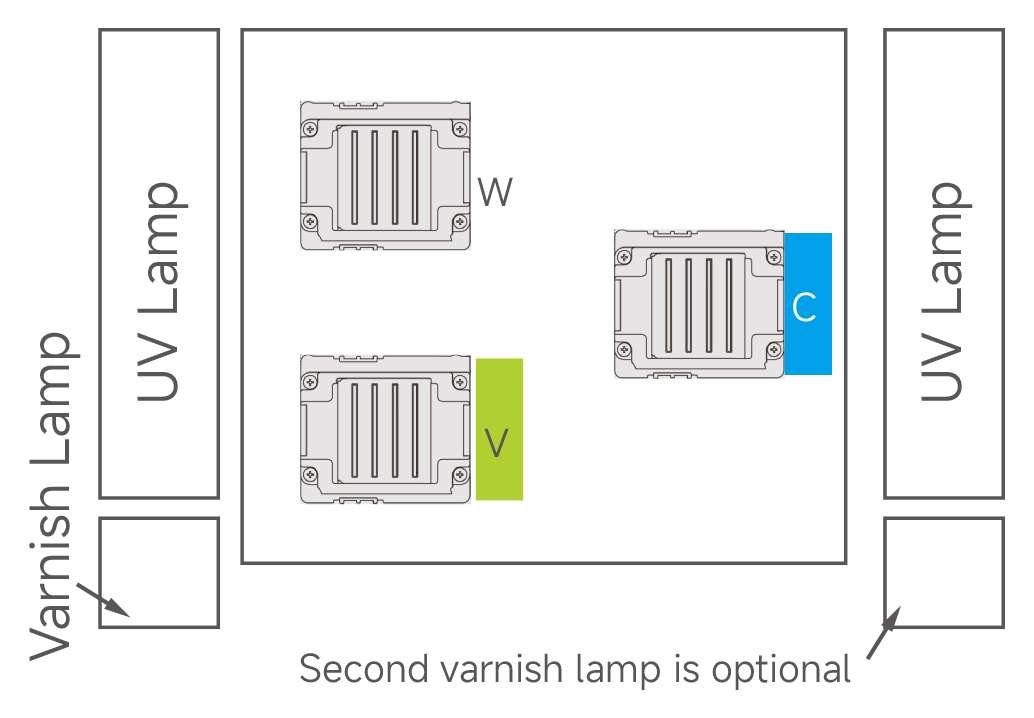

Printhead Soleplate
3H EPSON i3200 for CMYK+W+Glossy V
Ink Supplies
| Item | Color | Remarks | |
| UV Ink | #28 | cyan | 1L/bottle |
| magenta | |||
| yellow | |||
| black | |||
| varnish | |||
| white | |||
Inks and substrates:
•As physical properties of ink (adhesion, weather resistance etc.) are different depending on media, please be sure to have a print test in advance.
•Depending on the application, primers, other surface treatment or surface protection such as lamination may be necessary.
Safety notice:
This product is equipped with UV irradiation equipment. Please pay attention to the following notes in order to use safely.
•Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
•Depending upon print mode, some VOC emittance from printed parts not yet cured and hardened may occur.
•In addition, please be sure to read and follow the instructions and guidelines of the manual carefully.
•As physical properties of ink (adhesion, weather resistance etc.) are different depending on media, please be sure to have a print test in advance.
•Depending on the application, primers, other surface treatment or surface protection such as lamination may be necessary.
Safety notice:
This product is equipped with UV irradiation equipment. Please pay attention to the following notes in order to use safely.
•Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
•Depending upon print mode, some VOC emittance from printed parts not yet cured and hardened may occur.
•In addition, please be sure to read and follow the instructions and guidelines of the manual carefully.
Visual positioning function(DPP A1Ultra)
| Vision type | Gantry scanning |
| Camera model | 300-600 |
| Resolution | 300dpi |
| Working height | 3mm(0.118in) |
| Scanning speed | 30mm/s(1.181in/s) |
| Positioning accuracy | Less than 0.2mm(0.00787in) |
| Effective scanning range | 600×800mm(23.62×31.5in) |
| Depth of field | 1mm(0.03937in) |
| Interface type | USB |
| Software compatibility | Royal/Hoson |
| Image format | Tiff，PDF |
| Operating environment | Temperature: -20℃-55℃； Humidity: 5%-95%(non-condensing) |
* NOTICE:please contact with us for more details before you buy.

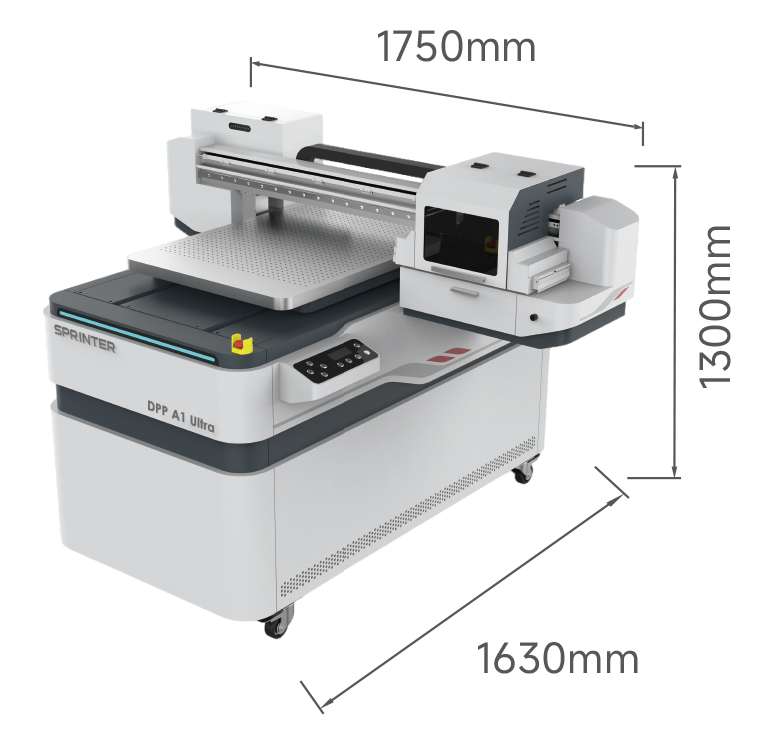

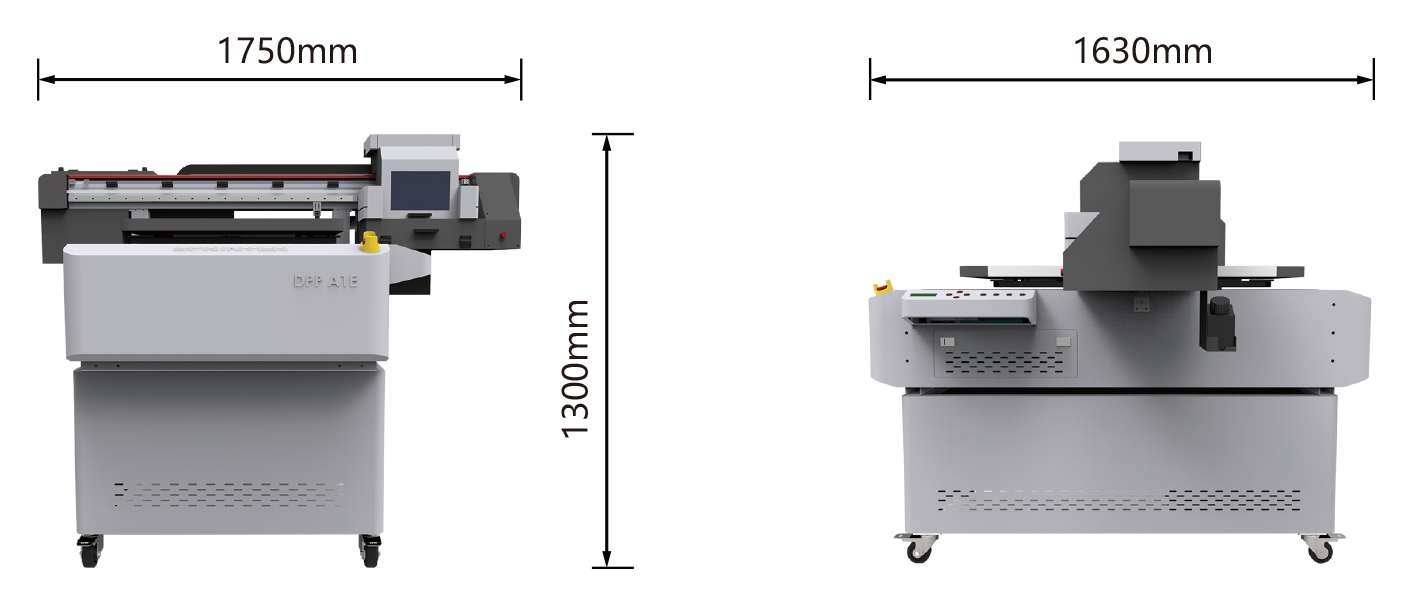

Dimension
DPP A1E
DPP A1Ultra
Specification
| Model | DPP A1E / DPP A1Ultra |
| Printhead | EPSON i1600/i3200 |
| Resolution | 720*1800; 720*1200; 360*1800 dpi |
| Color | CMYK, White，Varnish |
| Material thickness | 0~200mm（7.87in） |
| Ink curing system | UV LED curing system |
| Vacuum suction | Turbo fan |
| Printing size | Maximum Printing Area / 600 x 900mm (1.96 x 2.95 ft） |
| Maximum Material Size / 650 x 950mm (2.13 x 3.11 ft) | |
| Ink | UV curable ink |
| Color validity | 3~5 years outdoor and 7~10 years indoor without color fading (use Sprinter ink) |
| Ink capacity | 0.5L ink tanks, automatic alarm for ink volum shortage |
| Ink supply system | CISS（Continuous Ink Supply System） |
| Media | Glass、Acrylic、Ceramic、Metal、Paper、Wood、Leather、 PVC、PP、PE…… |
| PC specification | Win 7/10/11 64bit . RAM≥8G . HDD≥500G . SSD≥128G .CPU≥Inte I5 |
| RIP software | RIIN /Photoprint mini(Option) |
| Operation environment | Temperature：18℃~ 26℃ |
| Humidity： 40~70% | |
| Power supply | Power Maximum:0.5KW; AC 50Hz/60Hz; 220V(±10%)＞2.5A |
| Image format | Tiff,JPEG,EPS,PDF |
| Dimensions(L x W x H) | 1750 x 1630 x 1300mm（5.74 x 5.34 x 4.26 ft） |
|
Package dimensions (L x W x H) |
1850 x 1750 x 920mm （6.07 x 5.74 x 3.01 ft） |
| Net weight&Gross weight | 260kg & 380kg (573.2012lb & 837.7556lb) |
| Certification | CE |
* Notice: above specifications are subject to change without prior notice.
all the above dimensions shall be subject to the metric system, with the imperial system for reference only.
