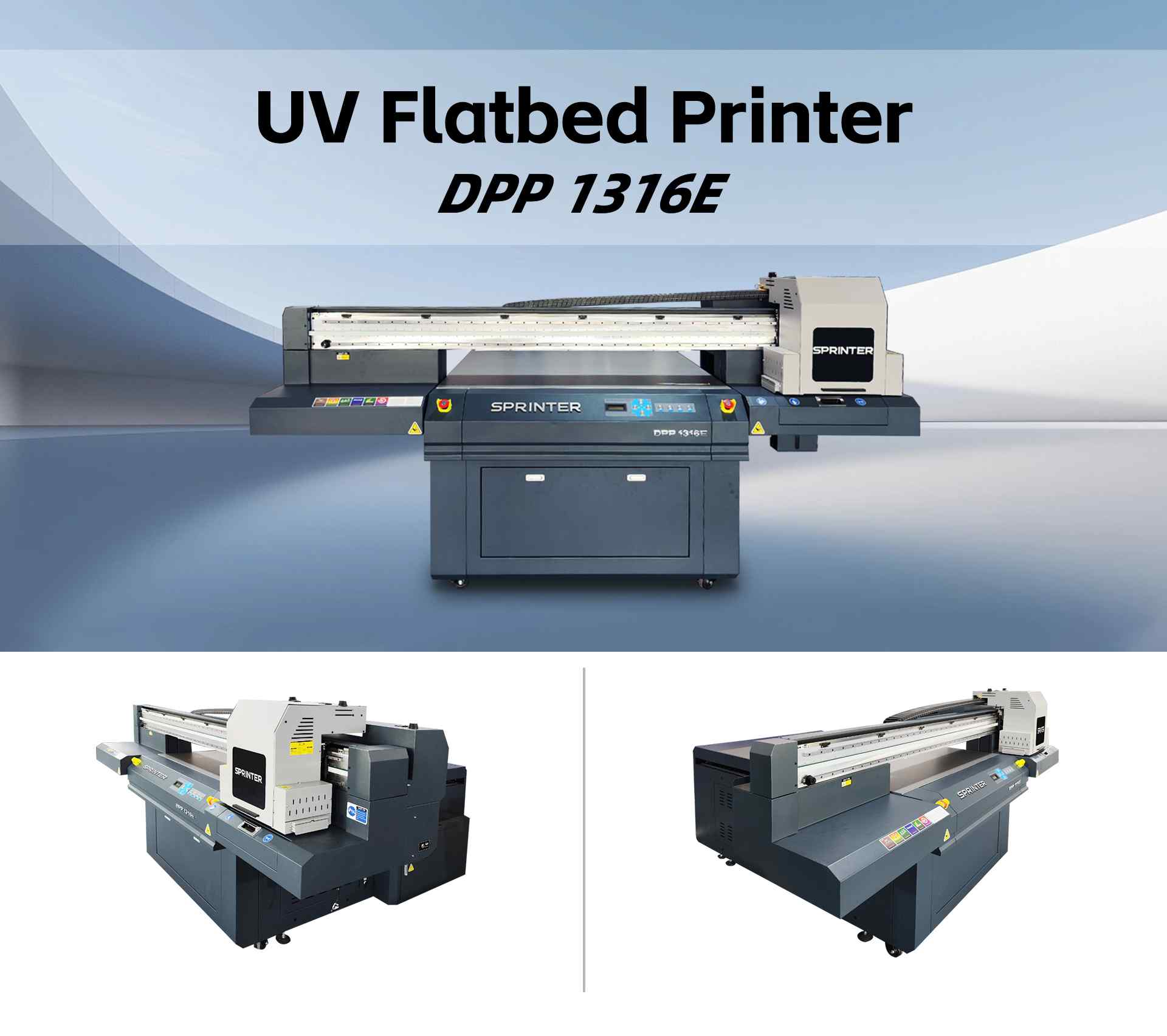

DPP-1316E
1200mm x 1500mm Flatbed printer
DPP-1316E is a compact 1200mm x 1500mm Flatbed printer. It＇s smaller in size than the other models，in the range, which is ideal for print companies who have a limited amount of space. As you would expect, it is very robust and extremely well engineered.
Key benefits

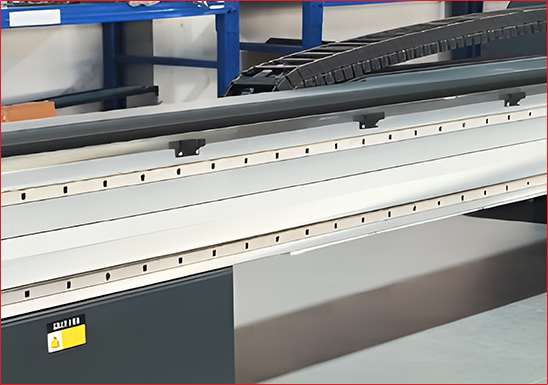

With dual-rail design ensures stable printing
With auto media height detection
Optional for Metal encoder & Liner motor
With auto media height detection
Optional for Metal encoder & Liner motor
Application
Glass
Frame Painting
Glass
Ceramic
Signboard
Metal Board
Acrylic Board
PVC Board
Stander
Display Board
Wood
Menu
Features
Water-cooled LED-UV curing

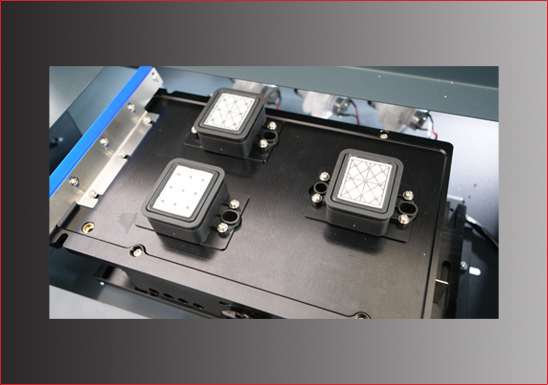

Three head optional
White Ink Stirring Function
Ink deficient alarm indication
Low power design
External motion system control

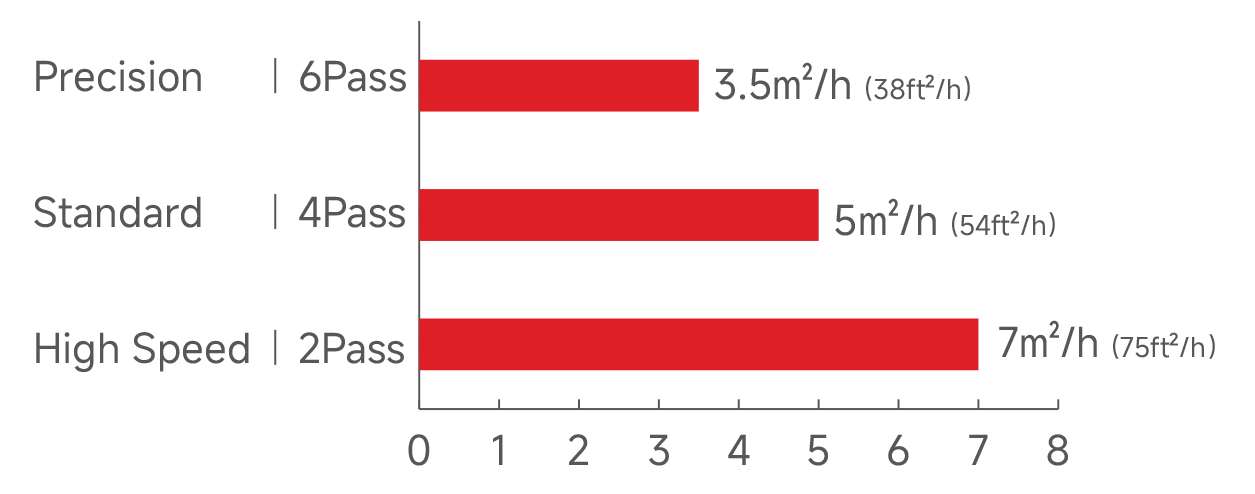

Print Speed
3 Head CMYK+W+V
Printhead Soleplate
3H EPSON i3200 for CMYK+W+Glossy V
Ink Supplies
| Item | Color | Remarks | |
| UV Ink | #28 | cyan | 1L/bottle |
| magenta | |||
| yellow | |||
| black | |||
| varnish | |||
| white | |||
Inks and substrates:
•As physical properties of ink (adhesion, weather resistance etc.) are different depending on media, please be sure to have a print test in advance.
•Depending on the application, primers, other surface treatment or surface protection such as lamination may be necessary.
Safety notice:
This product is equipped with UV irradiation equipment. Please pay attention to the following notes in order to use safely.
•Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
•Depending upon print mode, some VOC emittance from printed parts not yet cured and hardened may occur.
•In addition, please be sure to read and follow the instructions and guidelines of the manual carefully.
•As physical properties of ink (adhesion, weather resistance etc.) are different depending on media, please be sure to have a print test in advance.
•Depending on the application, primers, other surface treatment or surface protection such as lamination may be necessary.
Safety notice:
This product is equipped with UV irradiation equipment. Please pay attention to the following notes in order to use safely.
•Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
•Depending upon print mode, some VOC emittance from printed parts not yet cured and hardened may occur.
•In addition, please be sure to read and follow the instructions and guidelines of the manual carefully.

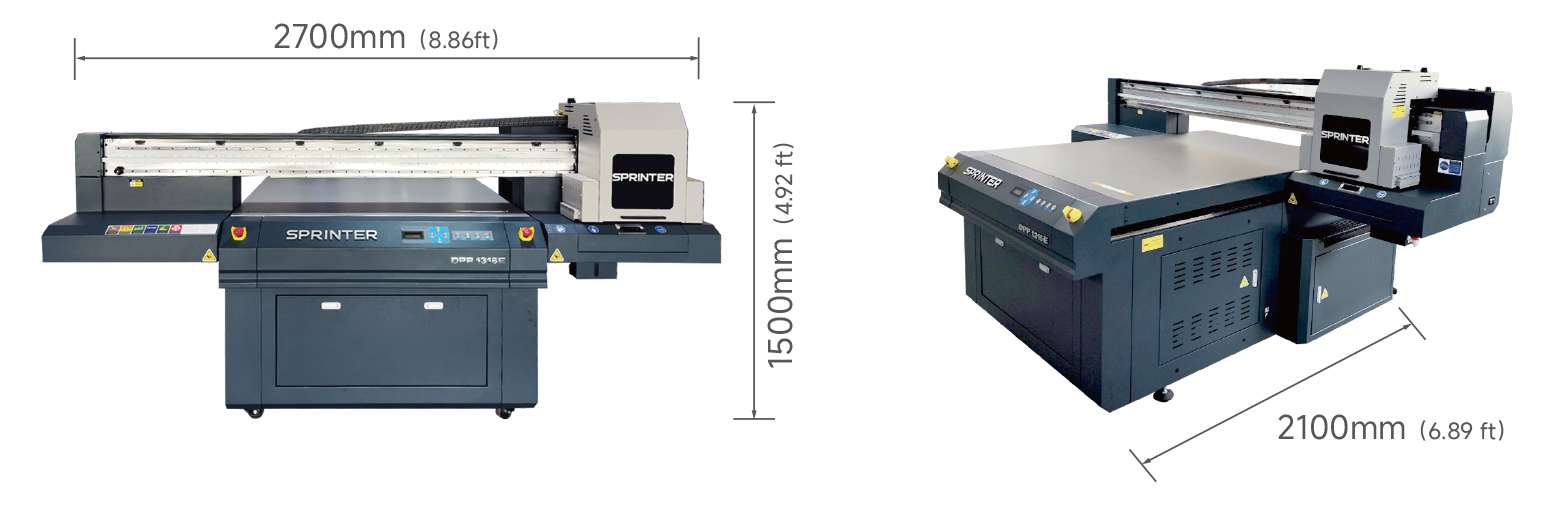

Dimension
Specification
| Model | DPP 1316E |
| Printhead | EPSON I1600/I3200 |
| Resolution | 720*1800; 720*1200; 360*1800 dpi |
| Printing speed | Draft mode: 6-7㎡/h (65-75ft²/h) / Standard mode: 4.5-5㎡/h (48-54ft²/h) Precision mode: 2.5-3.5㎡/h (27-38ft²/h) |
| Color | CMYK, White，Varnish |
| Material thickness | 120mm(4.72in)(350mm customized)(13.78in customized) |
| Ink drying system | UV LED curing system |
| Vacuum suction | Turbo fan |
| Printing size | Maximum Printing Area / 1200mm x 1500mm (3.94 x 4.92 ft) |
| Maximum Material Size / 1200mm x 1500mm (3.94 x 4.92 ft) | |
| Ink | UV curable ink |
| Color validity | 3~5 years outdoor and 7~10 years indoor without color fading (use Sprinter ink) |
| Ink capacity | 1 L ink tanks, automatic alarm for ink volum shortage |
| Ink supply system | CISS（Continuous Ink Supply System） |
| Media | Glass, PMMA, Ceramic, Metal, Paper, Wood, Leather, PVC, PP, PE, PTFE...... |
| PC specification | Win 7/10/11 64bit . RAM≥8G . HDD≥500G . SSD≥128G . CPU≥Inte I5 |
| RIP software | RIIIN /Photoprint(Option) |
| Operation environment | Temperature：18℃~ 26℃ |
| Humidity： 40~70% | |
| Power supply | Power Maximum:1KW; AC 50Hz/60Hz; 220V(±10%)>2.5A |
| Image format | Tiff,JPEG,EPS,PDF |
| Dimensions(L x W x H) | 2700 x 2100 x 1500mm（8.86 x 6.89 x 4.92ft） |
|
Package dimensions (L x W x H) |
2800 x 2300 x 1600mm（9.19 x 7.55 x 5.25ft） |
| Net weight&Gross weight | 500kg & 670kg (1102.31lb & 1477.1lb) |
| Certification | CE |
* Notice: above specifications are subject to change without prior notice.
all the above dimensions shall be subject to the metric system, with the imperial system for reference only.
