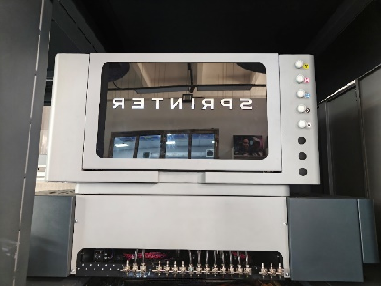

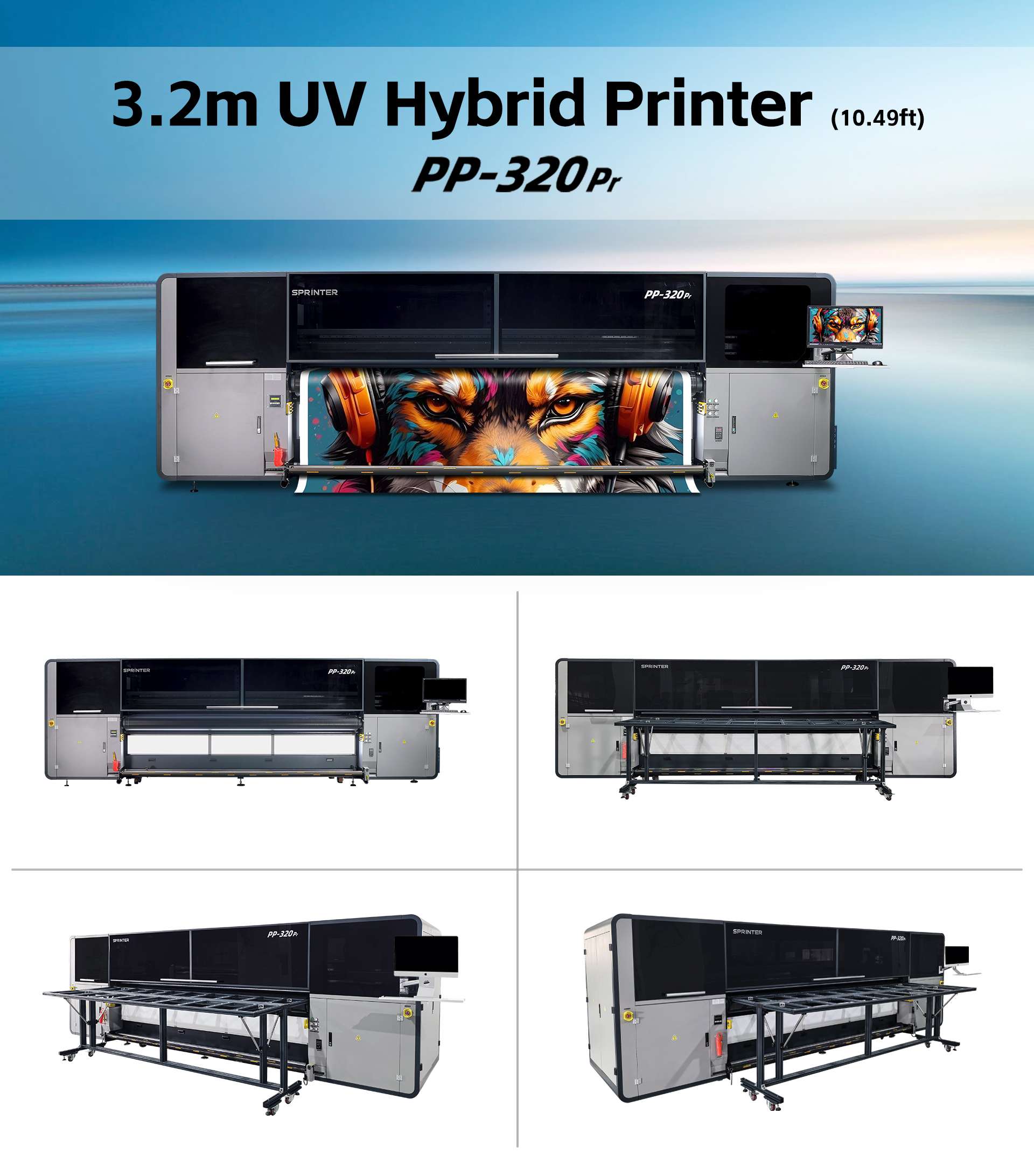

PP-320Pr
3.2 Meters UV Hybrid Printer
SPRINTER PP-320Pr is one of the most popular UV printer in the market. This model upgrade from Power Pro3200 printer.
3.2m width printing makes it suitable for most of the roll media. With external tables, it can print board material as well. It provides a perfect UV printing solution to customer.
The new design brings you a better experience.
Key benefits
New feeding up system with new balance system
Special belt convey system
Supports single & dual roll printing
Flat material printing up to 35mm(1.37795in) thick
Application
Wall Paper
Roll-up Banner
Decorative Painting
Leather
Ceramic
Advertising
Features

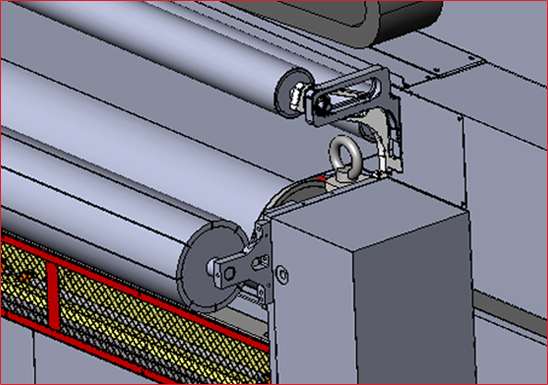

Material Pressure Roll
Anti-Statics system

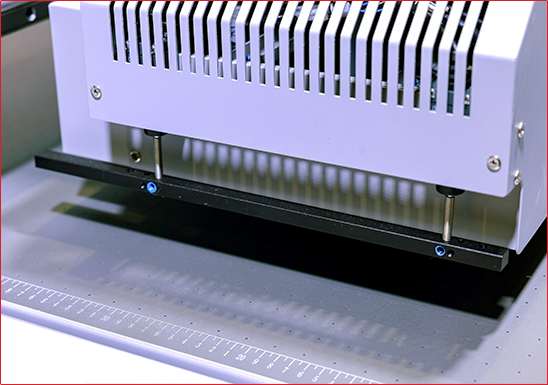

Auto media height detection

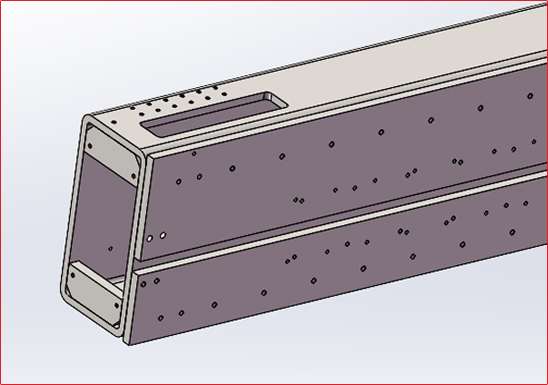

Steel Gantry Structure
Magnetic Technology

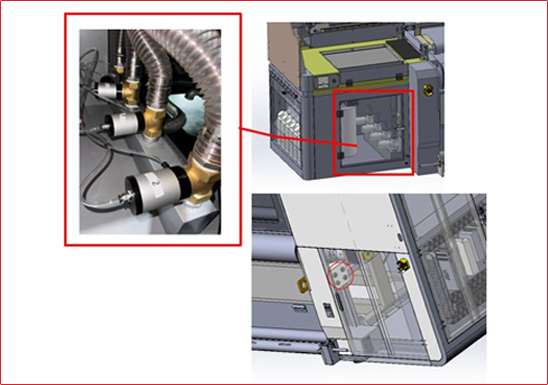

Electromagnetic Valve
Control Vaccum

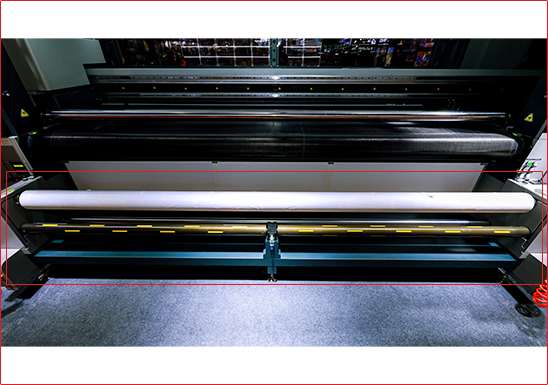

Feed System New Design

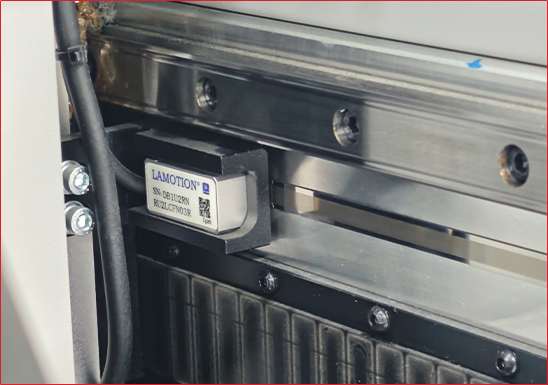

Metal encoder

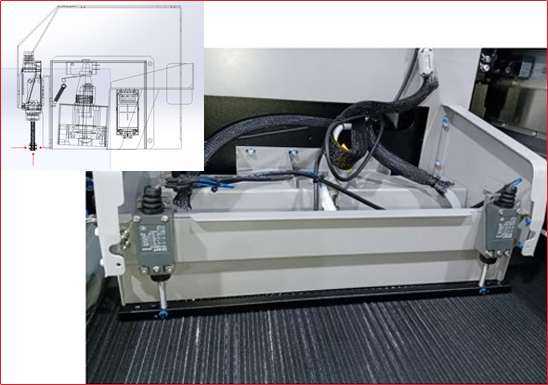

Anti-crush Protection

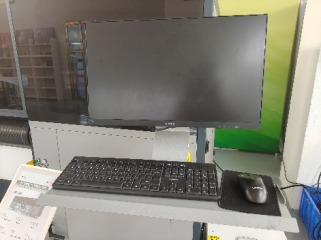

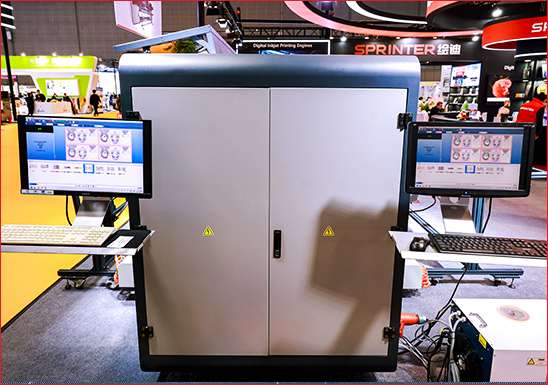

Computer monitor outside machine

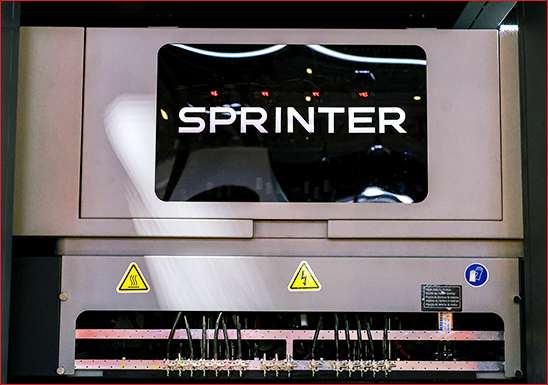

UV-LED Curing System

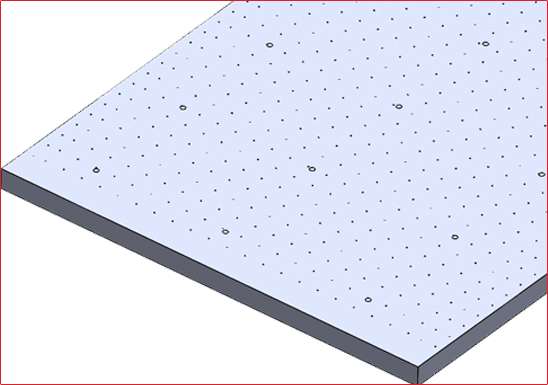

Flatbed Vacuum System

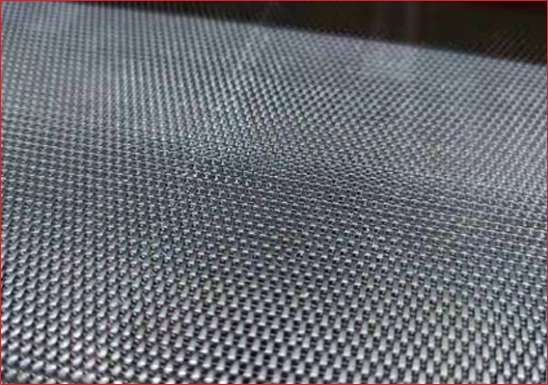

Upgraded Conveyor Belt

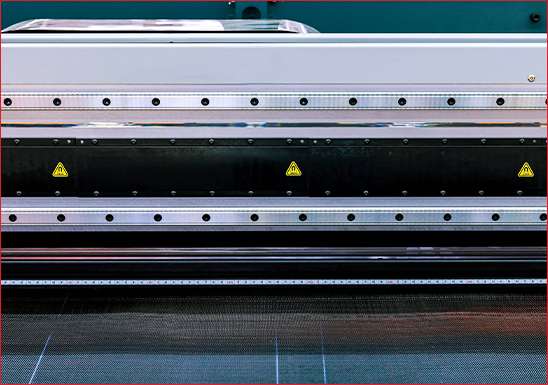

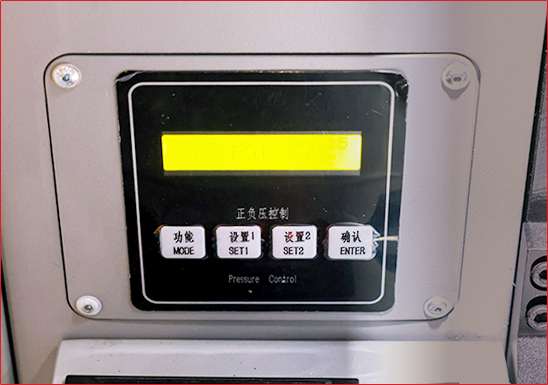

High-Precision Negative Pressure Control System

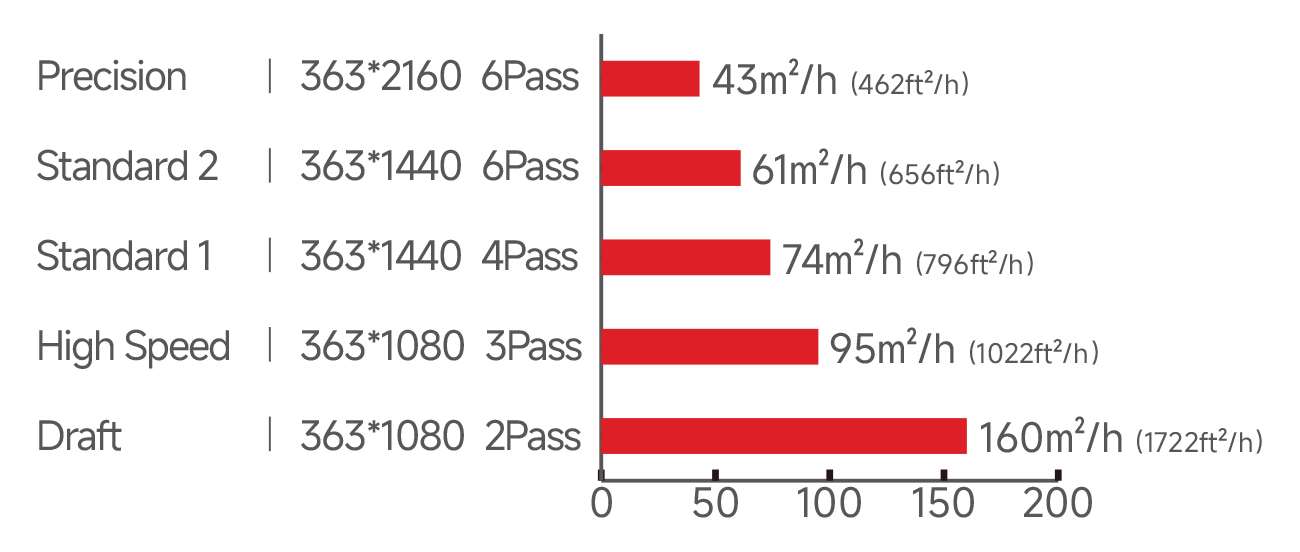

Print Speed
4 rows Ricoh G5 CMYK

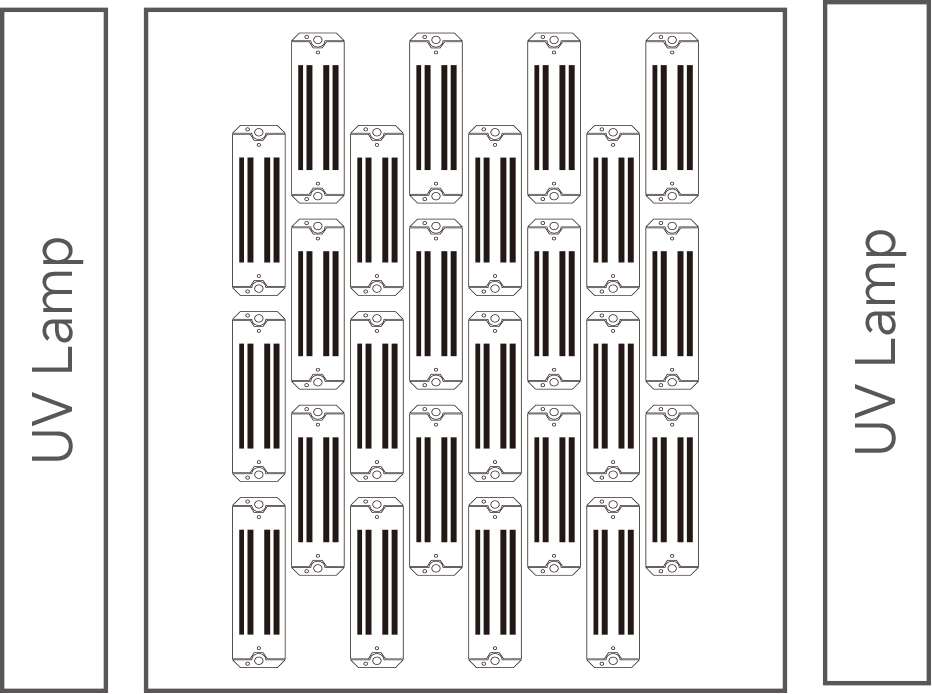

Printhead Soleplate
6 rows Ricoh G5/G6(Option:KM1024a or KM1024i)

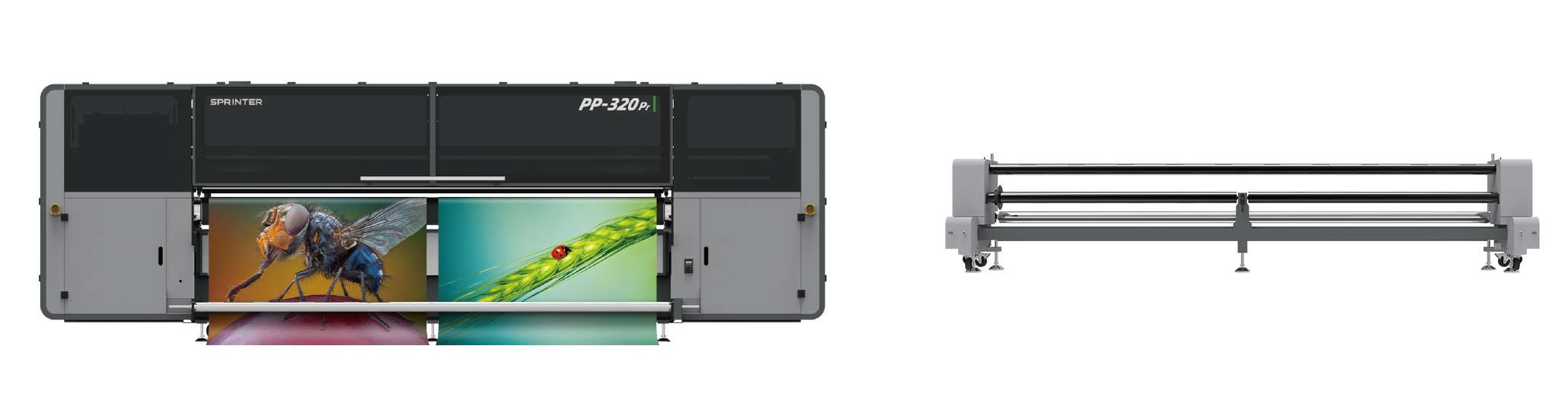

Two-roll printing two times productivity
Taking full advantage of the 3200mm(10.49ft) printing width, 2 media rolls (1.27m/50inch for each roll) can be mounted for simultaneous printing. Different ( or same) print jobs can be printed on the 2 separate rolls. Users can select a preferred width separately for each roll. PP-320Pr helps to shorten delivery time and reduce workload.
* The option "2 feed-up kits" is required.

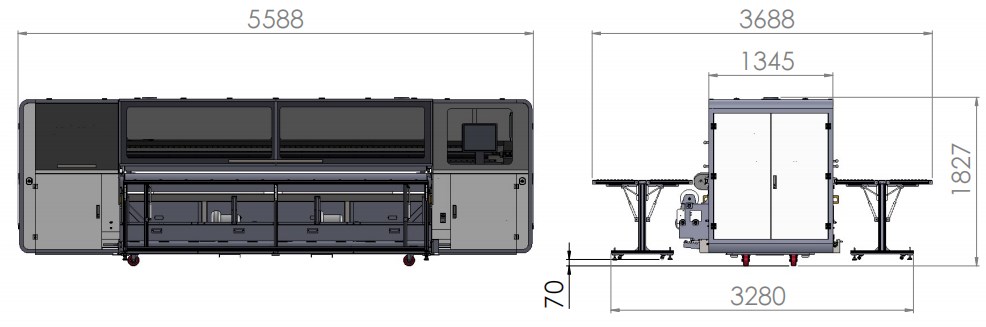

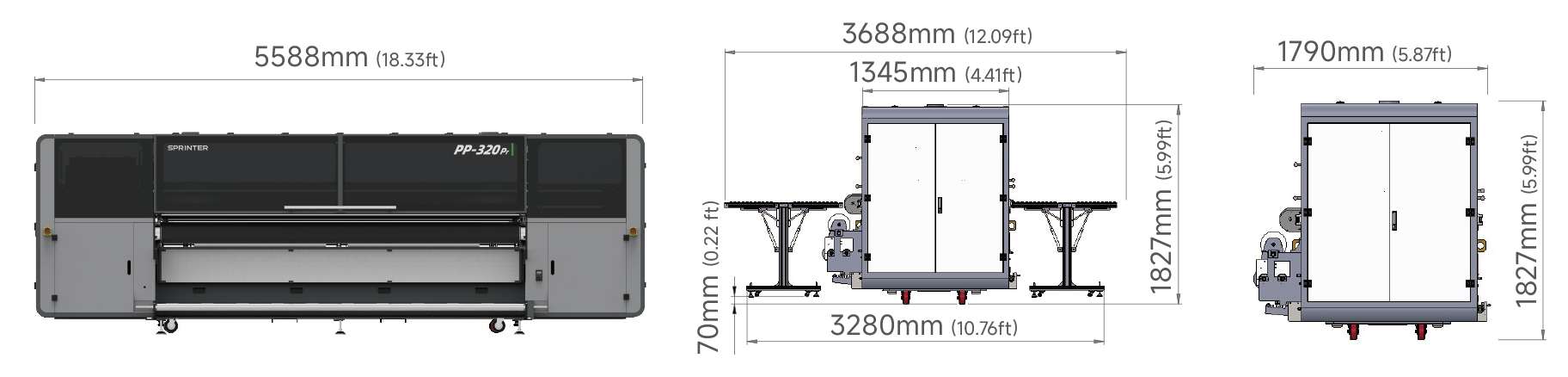

Dimension
Specification
| Model | PP-320Pr | |
| Printhead | Konica1024a / Konica1024i 4rows / RicohG5/G6 | |
| Resolution | 479, 1080, 1440, 2160 dpi / 363, 1080, 1440, 2160 dpi | |
| Color | CMYK, White / Varnish, Lc, Lm (option) | |
| Material thickness | 0~35mm（0~1.38 in） (no more than 30 kg/m2) | |
| Ink curing system | UV LED curing system | |
| Vacuum suction | 4 zones | |
| Maximum printing width | 3200mm (10.49ft) | |
| Ink | UV curable ink | |
| Optional | Extension tables*2pcs | |
| Color Validity | 3~5 years outdoor and 7~10 years indoor (use Sprinter ink) | |
| Ink capacity | 2.5L drums, automatic alarm for ink volum shortage | |
| Ink supply system | Auto Negative ink supply | |
| Media | Glass、Acrylic、Ceramic、Metal、Paper、Wood、Leather、Flex Banner、 Wallpaper、Car Sticker、Soft Film、pvc、pp、pe、ptfe…… |
|
| PC specification | Window7/10/11 64bit . RAM≥8G . HDD≥500G . SSD≥128G . CPU≥Inte I5 | |
| Media handling | Belt conveyor | |
| Transmission system | X-axis high-precision magnetic motor | |
| RIP software | PhotoPrint/PrintFactory/Caldera(option) | |
| Operation environment | Temperature | 18℃~ 26℃ |
| Humidity | 40% ~ 70% | |
| Power supply | Power Maximum:7.5KW; AC,50HZ/60HZ; 220v(±10%)＞15A | |
| Image format | Tiff,JPEG,EPS,PDF | |
| Dimensions(L x W x H) | 5588 x 1790 x 1827 mm(18.33 x 5.87 x 5.99 ft ) (without extension tables) 5588 x 3688 x 1827 mm(18.33 x 12.09 x 5.99 ft) (with extension tables) |
|
| Package dimensions(L x W x H) | 5800 x 2290 x 2255mm (19.02 x 7.51 x 7.39 ft) | |
| Net weight&Gross weight) | 2400kg（5291.088 lb） & 2900kg（6393.398 lb） | |
| Certification | CE | |
* Notice: above specifications are subject to change without prior notice.
all the above dimensions shall be subject to the metric system, with the imperial system for reference only.
