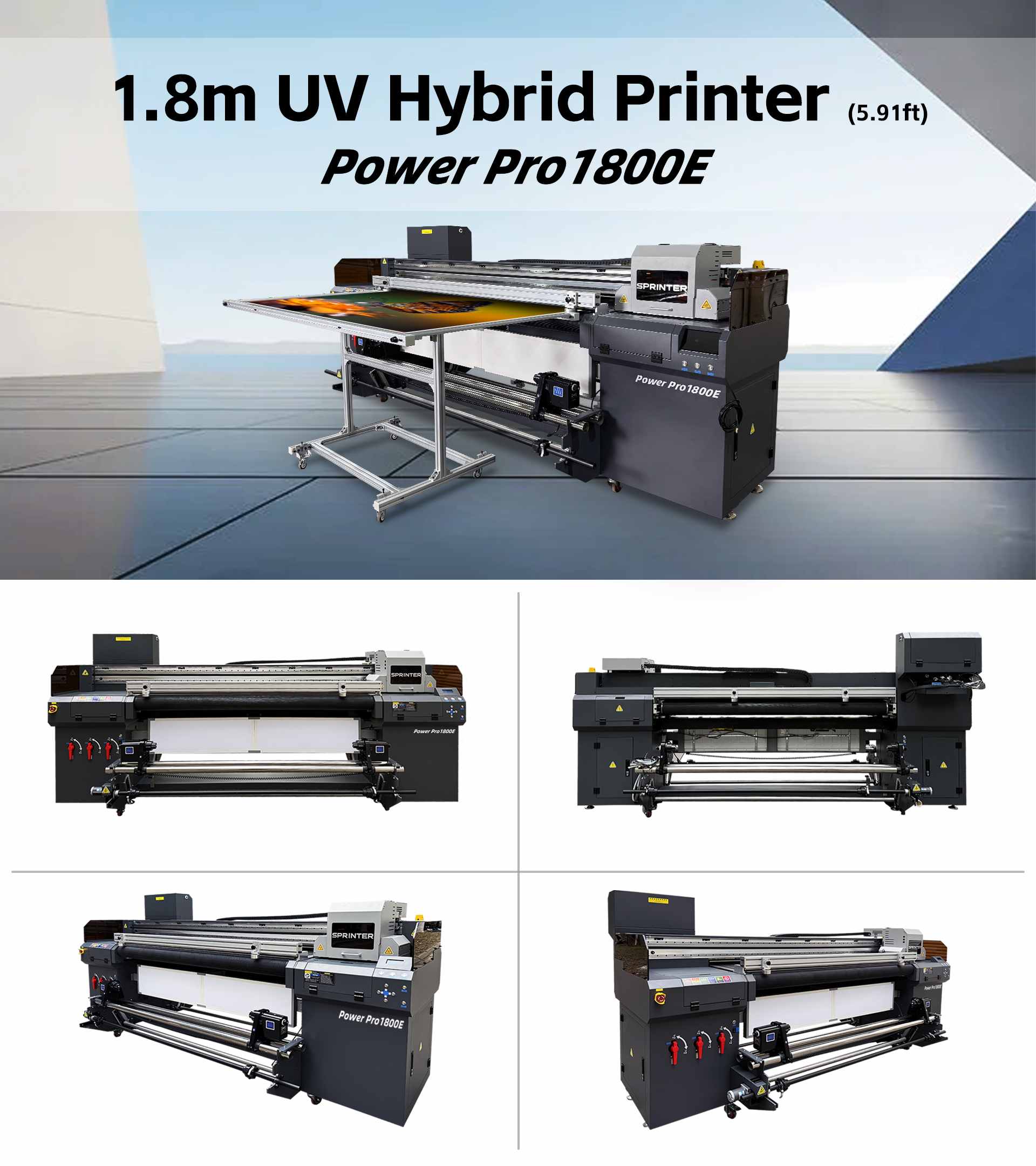

Power Pro 1800E
1.8 Meters Epson head UV Belt-Conveyed Hybrid printer
POWER PRO 1800E is a hybrid UV printer that can work both for roll and flat materials with external tables. It could print on material with width upto 1.8m. It has been widely used in signs & advertising. display, furniture, decorating industries.
Key benefits
Multi media compatibility

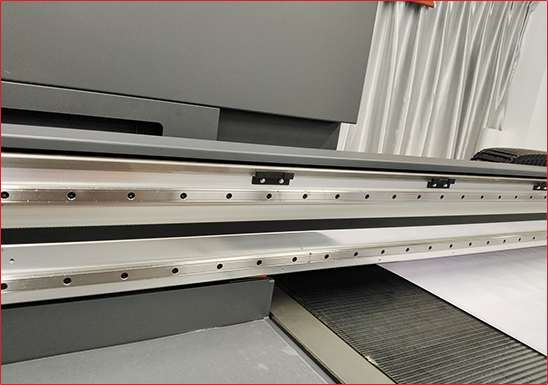

Dual rail design
Dual varnish lamp
Static elimination
White ink circulation
Material height Detection
Dual rail design
Dual varnish lamp
Static elimination
White ink circulation
Material height Detection
Application
Textured Painting
Golden Foil
Display Board
Wallcovering
Card
Wood
Custom Poster Design
Car decals
Features

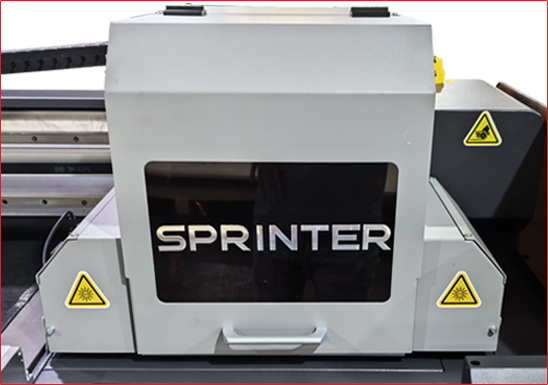

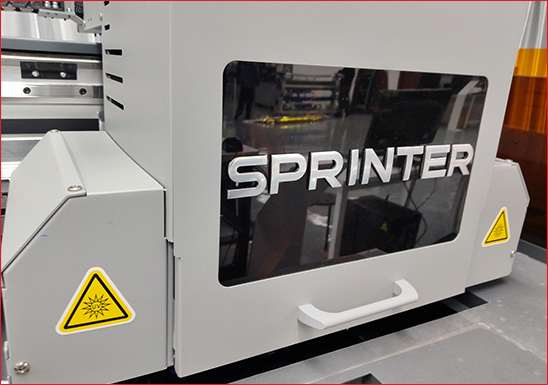

UV-LED Curing System
The carriage will stop moving when it hit subject in its way to protect the printhead. It has two sensors on both sides of carriage.

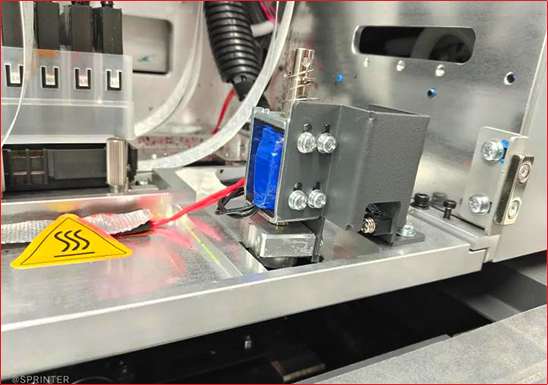

Auto Media Height Detection
It can measure the height of media and adapt to the height for print automatically. It can print media with thickness up to 110mm.
Anti-crush Protection
The carriage will stop moving when it hit subject in its way to protect the printhead. It has two sensors on both sides of carriage.
High-resolution encoder
The encoder on machine is metal encoder with resolution up to 1 um. It can ensure printheads moving exactly where it directed. Make sure each ink-dot drop down the right position.

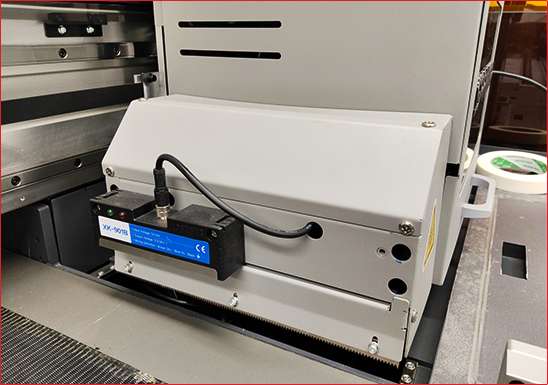

Statics Elimination
Statics exists on material, especial in a dry environment. With statics elimination system, it can efficiently decrease the route change of ink dropping caused by statics on material, ensure printing quality.

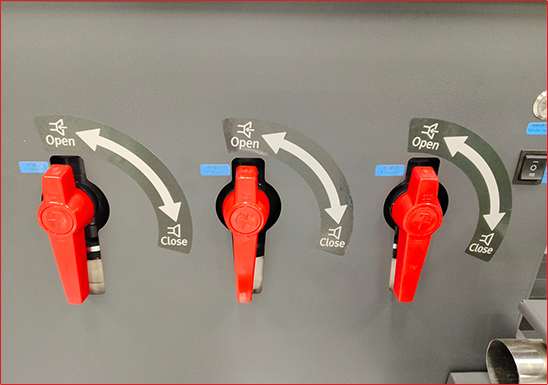

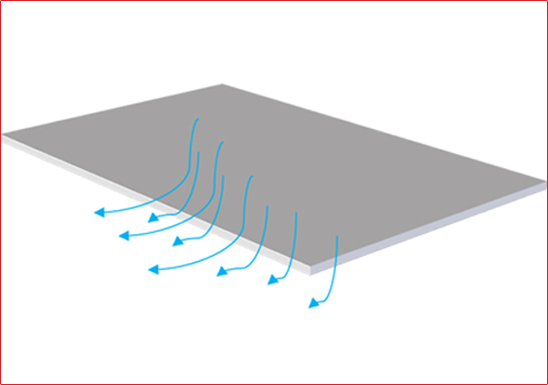

Flatbed Vacuum System
Media will be hold on flatbed with vacuum system flat and firmly in place. It flatbed has been divided into 8 different areas for media of different sizes.

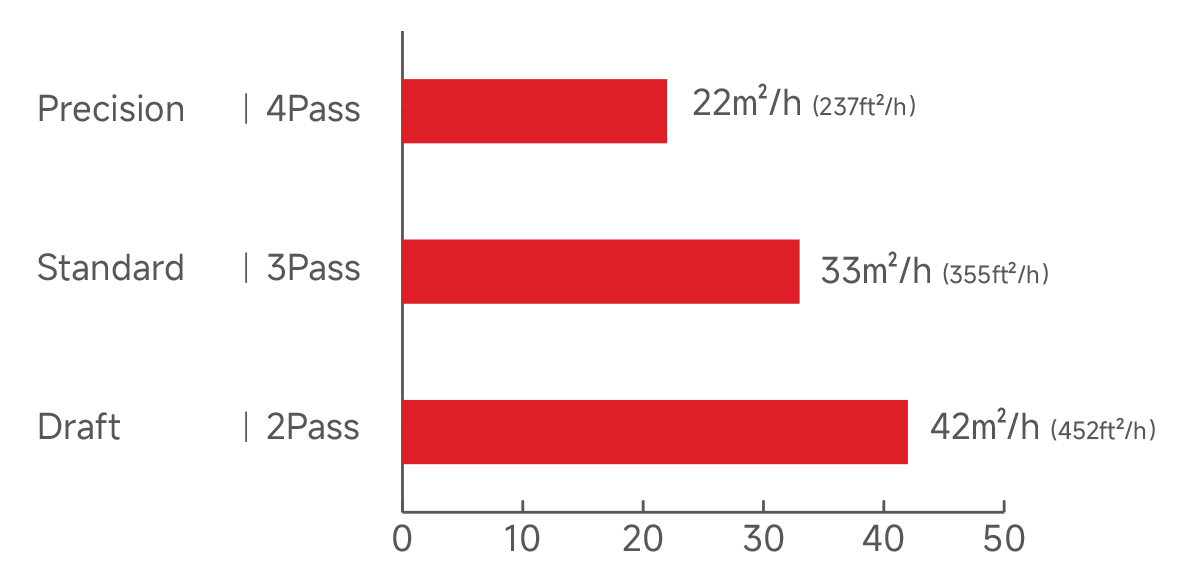

Print Speed

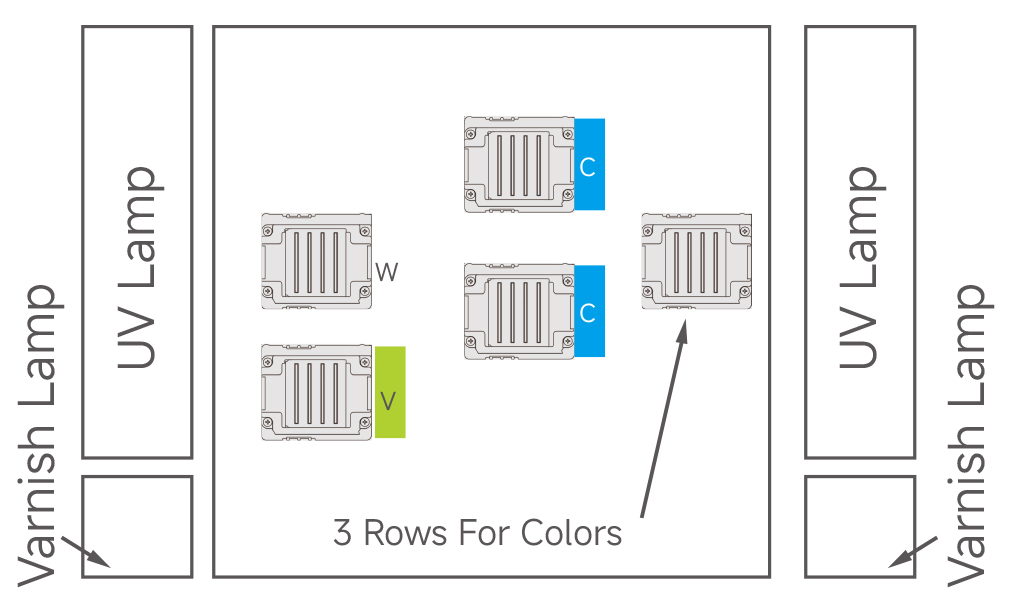

Printhead Soleplate
4H EPSON i3200 for CMYK+W+CMYK+Glossy V (Max.4head)
Ink Supplies
| Item | Color | Remarks | |
| UV Ink | #28 | cyan | 1L/bottle |
| magenta | |||
| yellow | |||
| black | |||
| varnish | |||
| white | |||
| #47 | fluo yellow | ||
| fluo orange | |||
| fluo green | |||
| fluo magenta | |||
Inks and substrates:
•As physical properties of ink (adhesion, weather resistance etc.) are different depending on media, please be sure to have a print test in advance.
•Depending on the application, primers, other surface treatment or surface protection such as lamination may be necessary.
Safety notice:
This product is equipped with UV irradiation equipment. Please pay attention to the following notes in order to use safely.
•Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
•Depending upon print mode, some VOC emittance from printed parts not yet cured and hardened may occur.
•In addition, please be sure to read and follow the instructions and guidelines of the manual carefully.
•As physical properties of ink (adhesion, weather resistance etc.) are different depending on media, please be sure to have a print test in advance.
•Depending on the application, primers, other surface treatment or surface protection such as lamination may be necessary.
Safety notice:
This product is equipped with UV irradiation equipment. Please pay attention to the following notes in order to use safely.
•Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
•Depending upon print mode, some VOC emittance from printed parts not yet cured and hardened may occur.
•In addition, please be sure to read and follow the instructions and guidelines of the manual carefully.

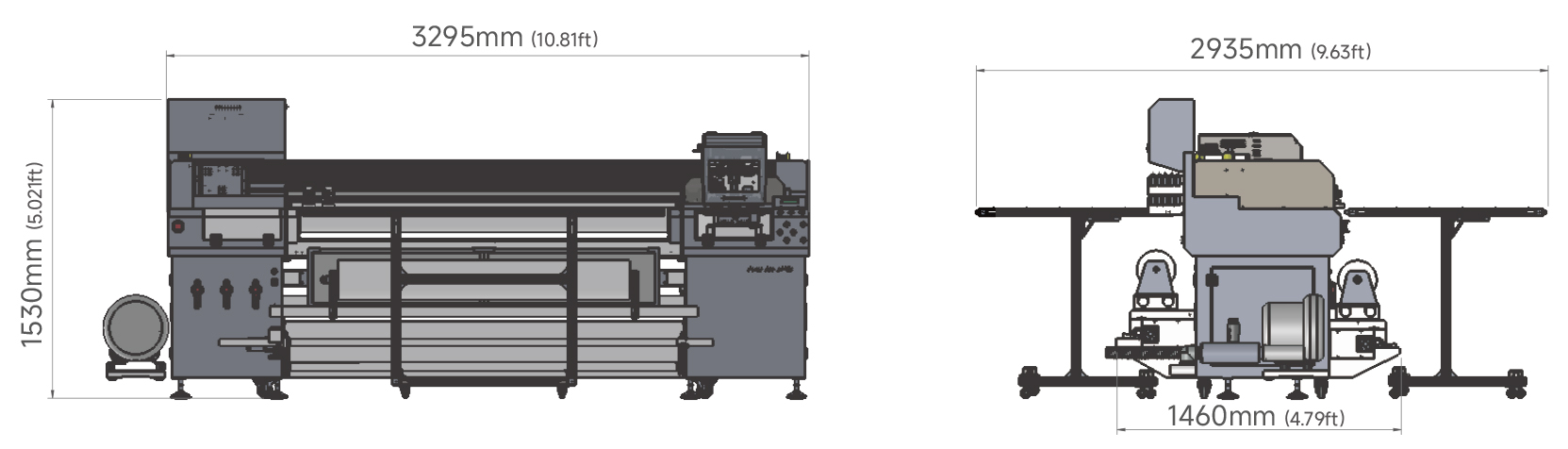

Dimension
Specification
| Model | Power Pro1800E |
| Printhead | EPSON i3200 |
| Resolution | 720*1800；720*1200; 360*1800 dpi |
| Color | CMYK, White/Varnish /FO,FG,FM,FY(Option) |
| Material thickness | 0-15mm(0.59 in) |
| Ink curing system | UV LED curing system |
| Vacuum suction | 4 zones |
| Maximum printing width | 1800mm （5.91ft） |
| Ink | UV curable ink |
| Optional | Extension tables*2pcs |
| Color Validity | 3~5 years outdoor and 7~10 years indoor without color fading (use Sprinter ink) |
| Ink capacity | 1.5L ink ling tank, automatic alarm for ink volum shortage |
| Ink supply system | Siphon ink supply system |
| Media |
Glass、Acrylic、Ceramic、Metal、Paper、Wood、Leather、Flex banner、Wallpaper、Car sticker、Soft film、PVC、PP、PE、PTFE…… |
| PC specification | Win 7/10/11 64bit . RAM≥8G . HDD≥500G . SSD≥128G . CPU≥Inte I5 |
| Media handling | Belt conveyor |
| RIP software | PhotoPrint |
| Operation environment | Temperature：18℃~ 26℃ |
| Humidity：46% ~ 65% | |
| Power supply | Power Maximum:3KW; AC,50HZ/60HZ; 220v(±10%)＞2.5A |
| Image format | Tiff,JPEG,EPS,PDF |
| Dimensions(L x W x H) | 3295 x 1460 x 1530mm（10.81 × 4.9 × 5.02ft）(without extension tables) |
| 3295 x 2935 x 1530mm（10.81 × 9.63 × 5.02ft）(with extension tables) | |
|
Package dimensions (L x W x H) |
3590 x 1520 x 1600mm（11.78 × 4.99 × 5.25ft） |
| Net weight&Gross weight) | 620kg & 750kg(1366.8644lb & 1653.47lb) (without extension tables) |
| 620kg & 1000kg(1366.8644lb & 2204.62lb) (with extension tables) | |
| Certification | CE |
* Notice: above specifications are subject to change without prior notice.
all the above dimensions shall be subject to the metric system, with the imperial system for reference only.
