Key benefits
No fixture needed, free placement
1200dpi industrial barrel camera
Intelligent precision matching
Precise alignment of irregular products
Application

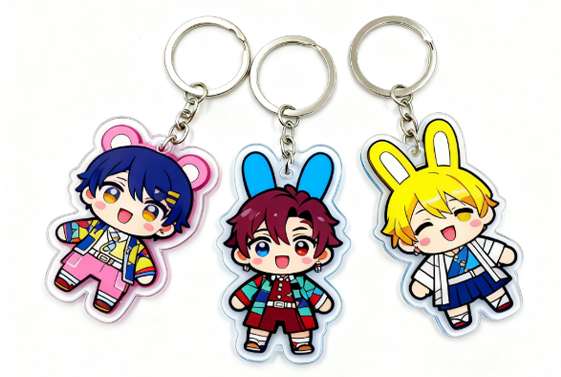

Custom Keychains
(metal/plastic/wooden)
Paper Cardboard Coasters

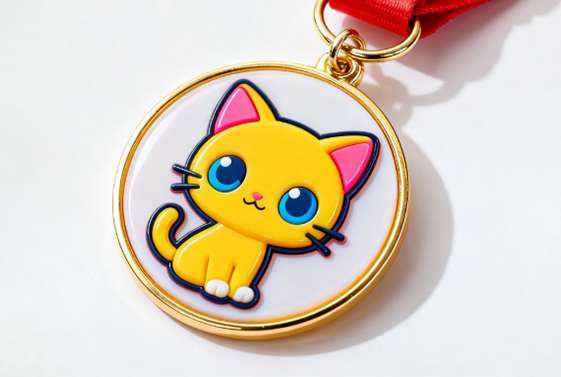

Plastic Badges

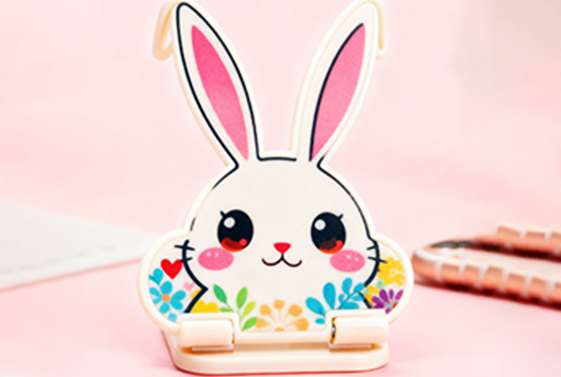

Plastic Phone Grips

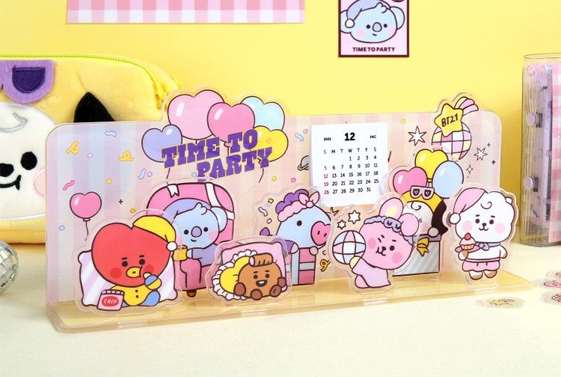

Acrylic Character Stands
PVC ID Card Holders

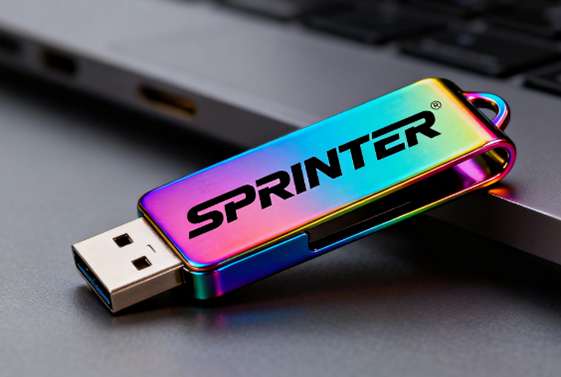

Small Metal USB Drives
Wooden Small Photo
Frames
Visual Positioning Function

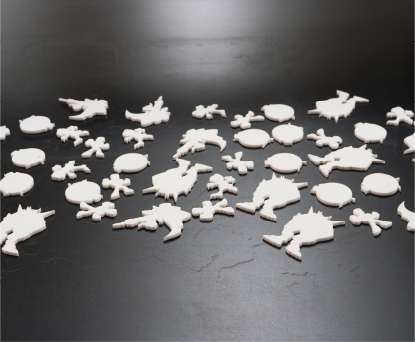

No fixture needed, free placement
No lay out or positioning frames required, saving time on material placement. Reduces fixture production costs and labor time.

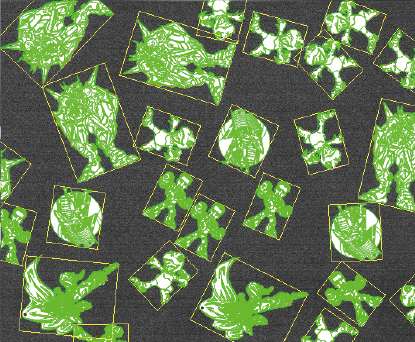

Intelligent precision matching
Automatic alignment of bulk products is more accurate and faster. The matching algorithm reduces distortion during recognition, with an accuracy of up to 0.1mm. The images are output 1:1, ensuring stable operation and low failure rates.

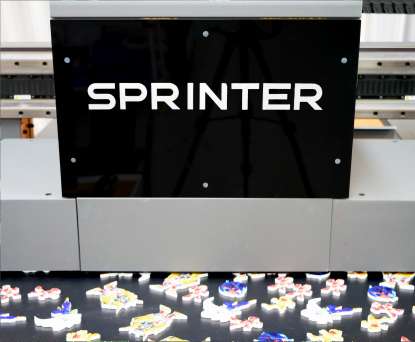

1200dpi industrial barrel camera
Achieves high-definition templating with excellent template recognition accuracy.

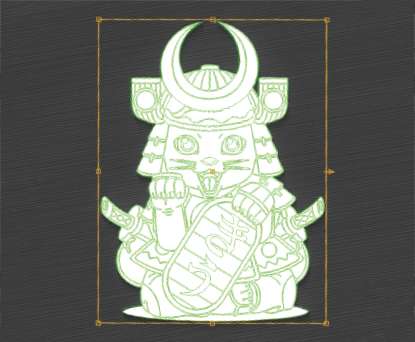

Precise alignment of orregular products
For printing on non-standard products, the image contours are accurately matched, and the software ensures better calibration and alignment. Once positioned for the same product, the setup can be used permanently.

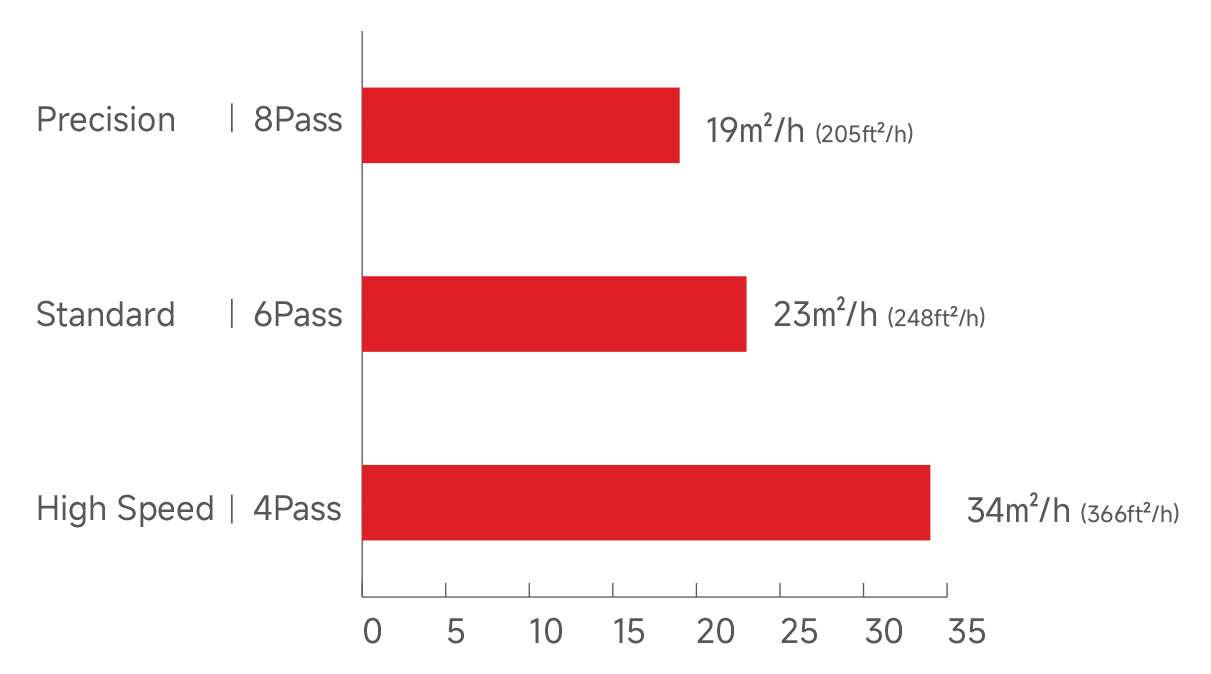

Print Speed
G6 CMYK+W+V

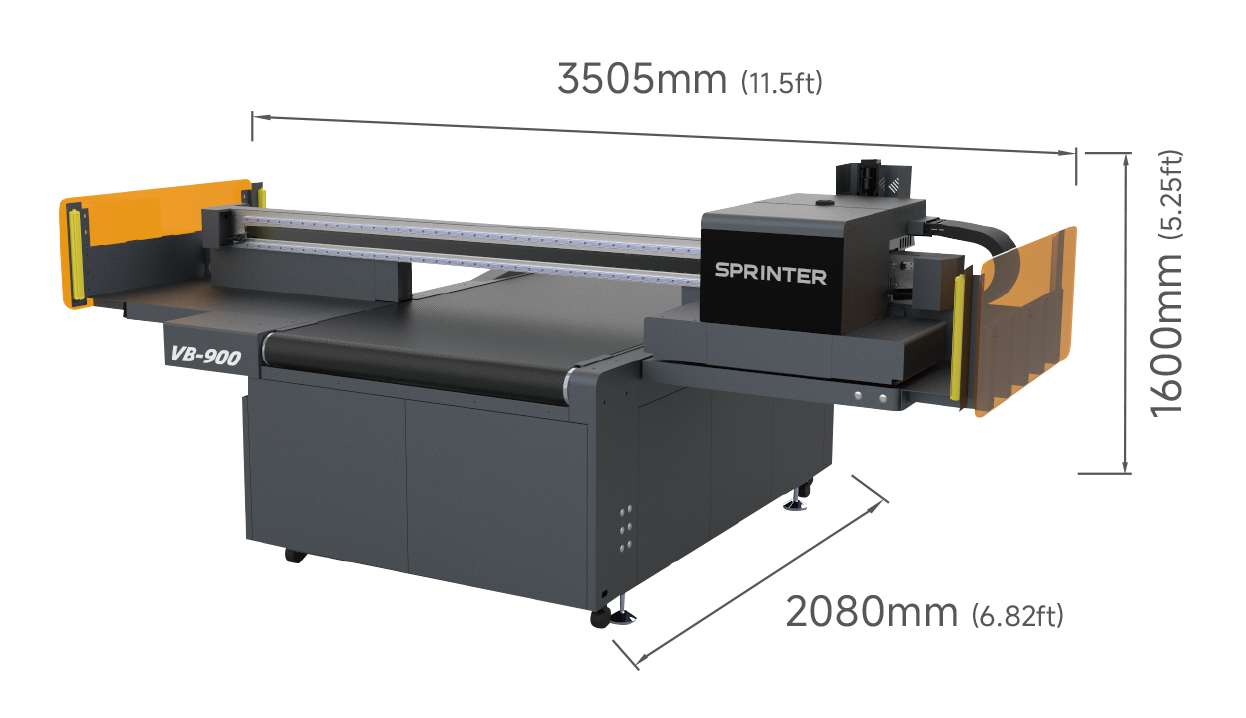

Dimension
Specification

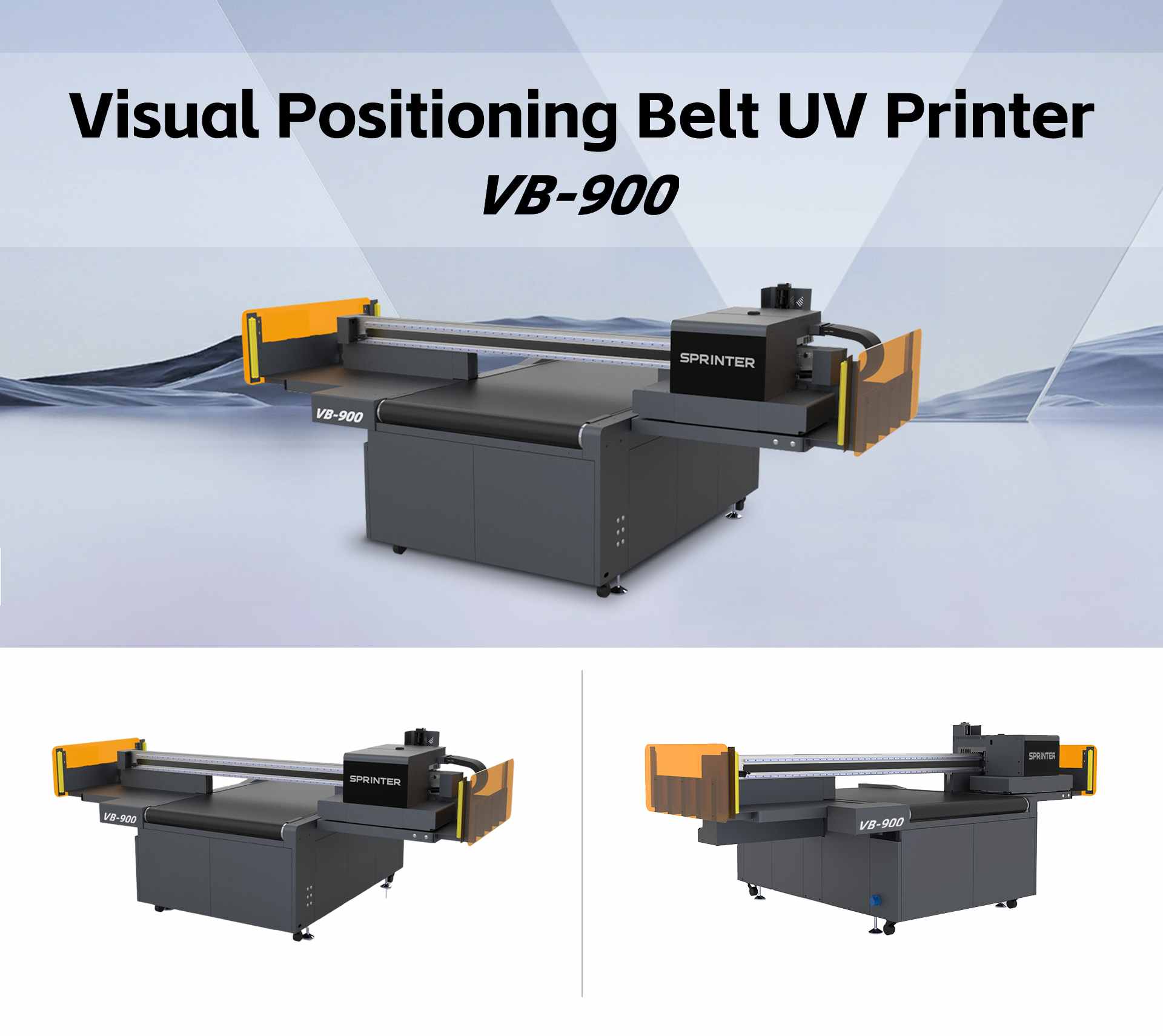

| Name | Visual Positioning Belt UV Printer |
| Model | VB-900 |
| Print size | 900mm（2.95ft） |
| Vision system | 1200dpi Industrial barrel vision alignment system |
| Recognition range | 900mm（2.95ft） |
| Printhead | Ricoh Gen6 |
| Printheads quantity | 2-8（could be customized,Max.8H） |
| Color | CMYK,White/Varnish LcLm(Option) |
| Resolution | 720×900，720×1200，720×1800dpi |
| Material thickness | 150mm（ 5.91in） |
| Ink system | Dual vacuum system 1.5L ink tank white auto stirring |
| Transmission system | X-axish precision magnetic guide rail dual motor and Y-axis self-locking motors |
| Rip software | PhotoPrintZ |
| PC specification | Win 7/10/11 64bit . RAM≥8G . HDD≥500G . SSD≥128G . CPU≥Inte I5 |
| Data interface | USB3.0 |
| Operating environment | 20-30℃/40-80%（no condensation） |
| Power supply | Power Maximum:4.5KW;200-240VAC,single-phase;50/60Hz;32A |
| Net weight & Gross weight | 930KG & 1230KG（2040.39lb & 2711.68lb） |
| Dimensions(L×W×H) | 3505×2080×1600mm (11.5×6.82×5.25ft) |
| Packaging dimensions(L×W×H) | 3695×2270×1850mm (13.01×7.45×6.07ft) |
| Certification | CE |
* Notice: above specifications are subject to change without prior notice.
all the above dimensions shall be subject to the metric system, with the imperial system for reference only.
