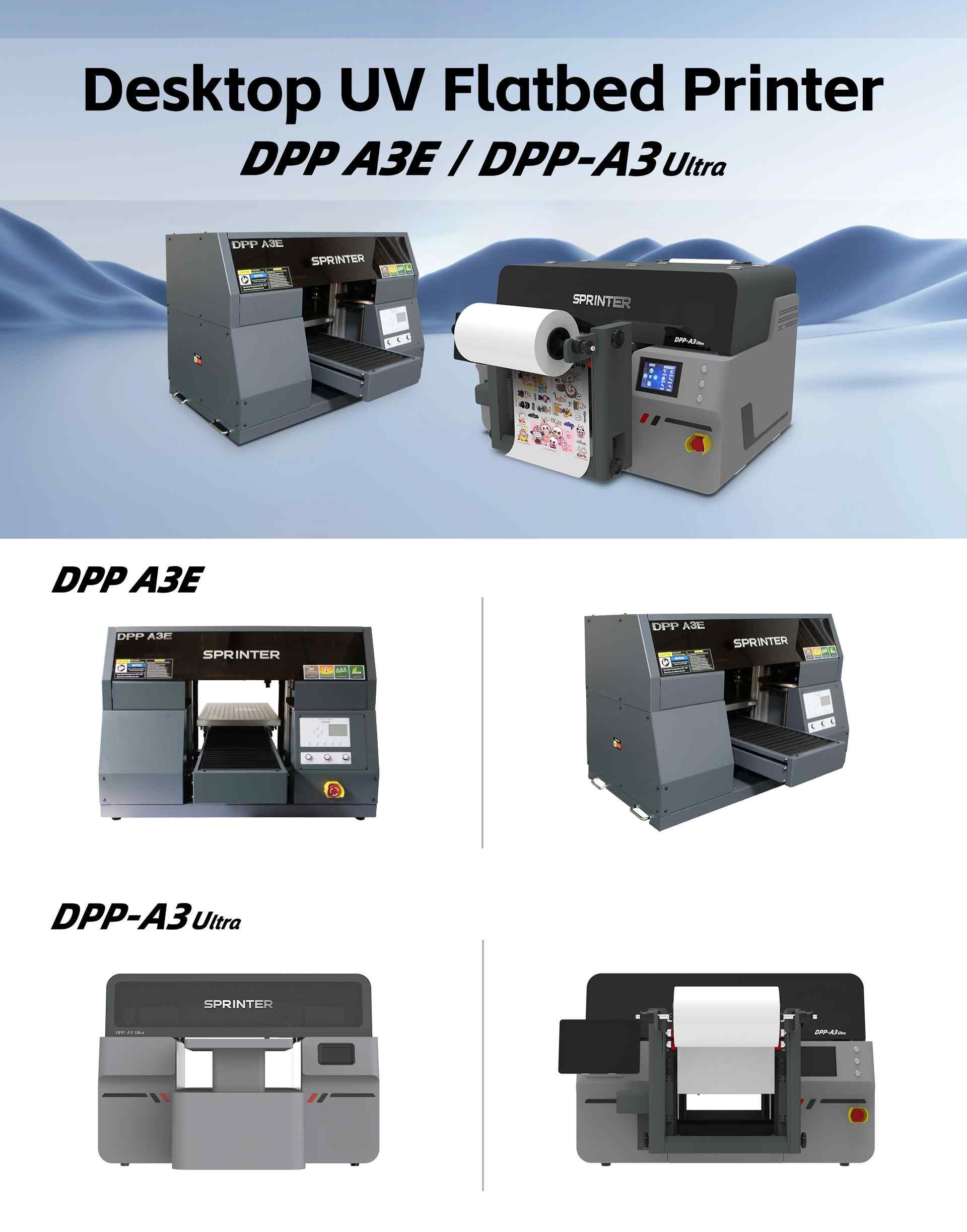

DPP-A3 Ultra
297mm x 420m Desktop Mini UV Flatbed Printer
DPP-A3 Ultra is a new compact 297mm x 420m Flatbed printer. It＇s smaller in size than the other models，in the range, which is ideal for print companies who have a limited amount of space. As you would expect, it is very robust and extremely well engineered.
Key benefits
The new material height-detective system
Visual system (DPP A3Ultra)
Rotory system (DPP A3Ultra)
UV DTF (DPP A3Ultra)
New appearance design (DPP A3Ultra)
Visual system (DPP A3Ultra)
Rotory system (DPP A3Ultra)
UV DTF (DPP A3Ultra)
New appearance design (DPP A3Ultra)
Application
Embossed Effect
Bottle
Wood
Phonecase
Ceramic
Crystal Sticker
Glass
Badge

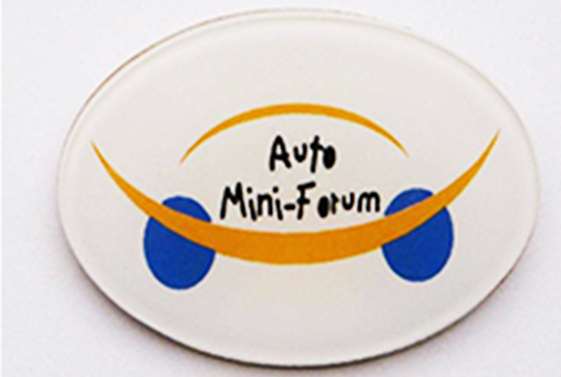

Acrylic
Refrigerator Magnet
Lipstick
Lighter
Features

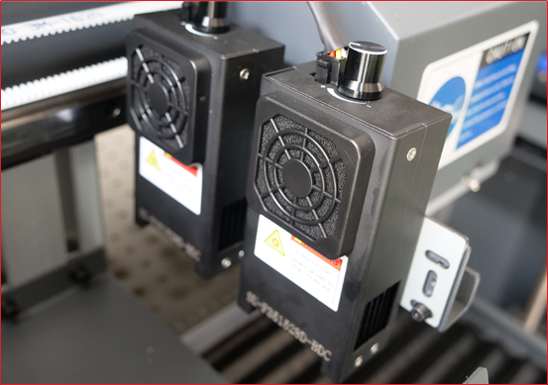

2 Air-cooled LED-UV curing

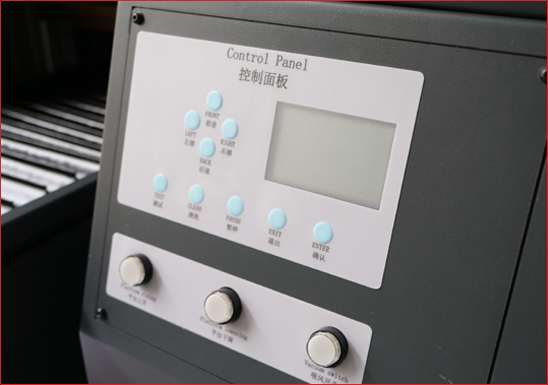

Control panel

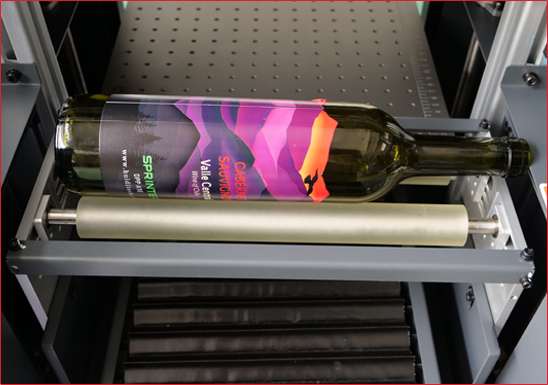

Rotory system

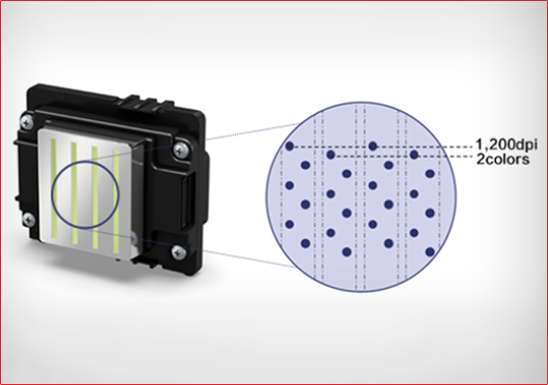

i3200HD printhead 2 color for each

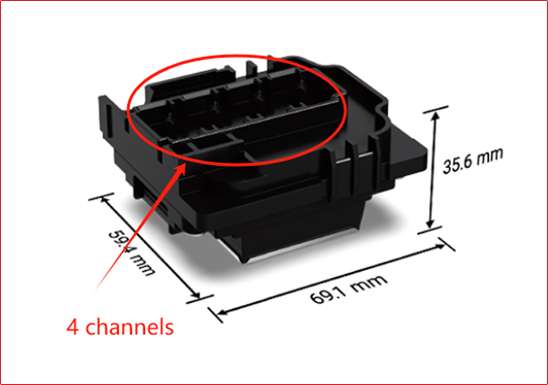

i1600 4 channels

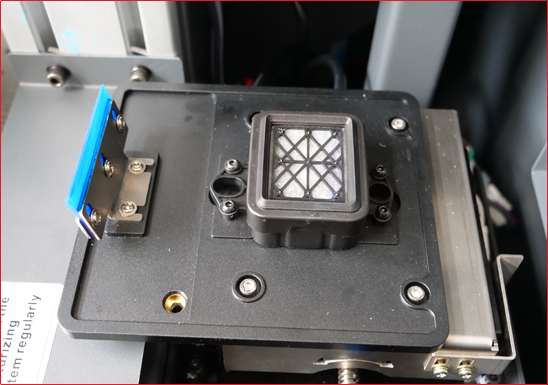

Cap station and wiper system

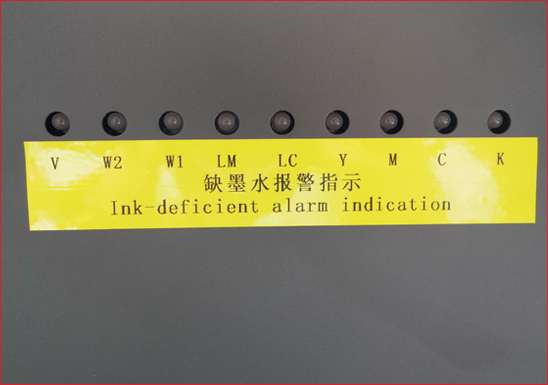

Ink deficient alarm indication

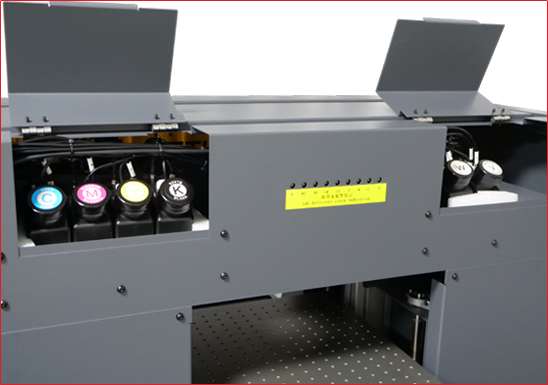

CMYK+VW

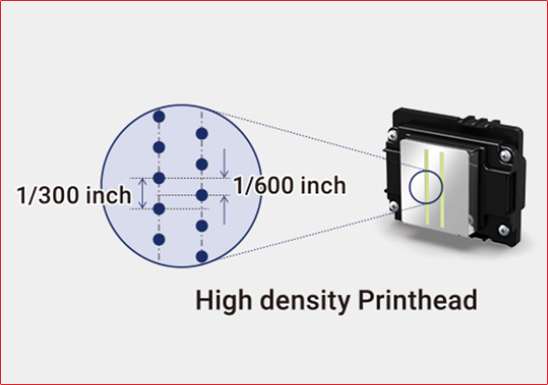

i1600 one head 4 color

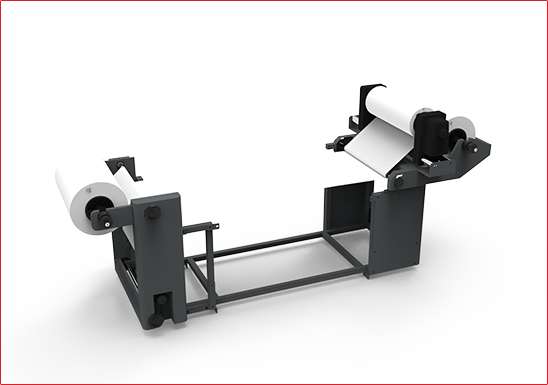

UV DTF System (Option)

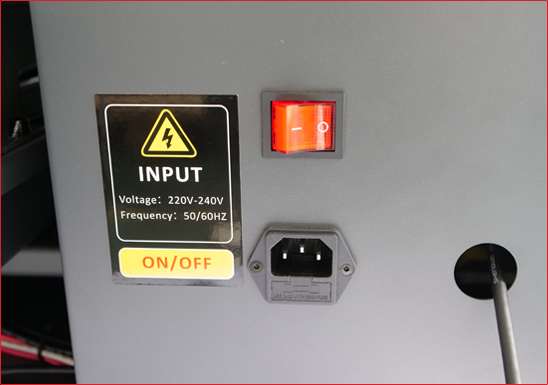

Low power design

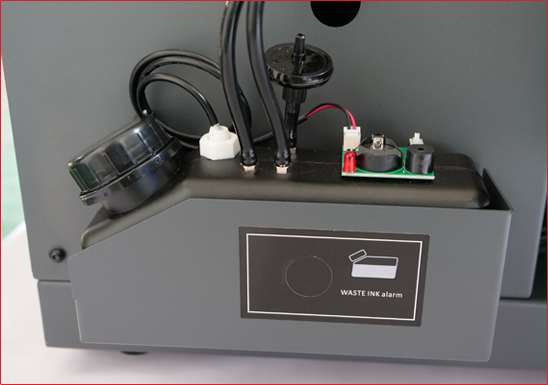

Waste ink alarm system

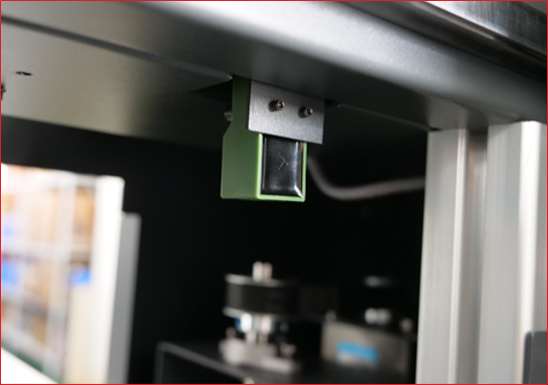

Height detective sensor

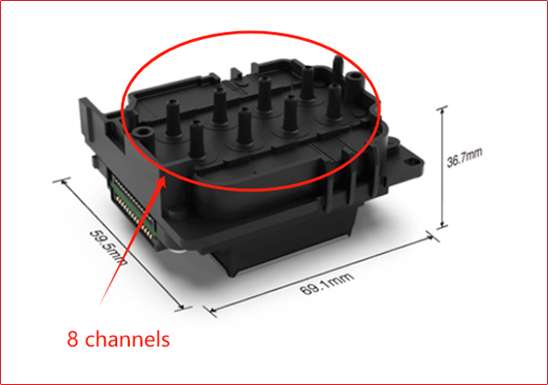

i3200HD printhead with 8 channels
Visual Positioning(Option)

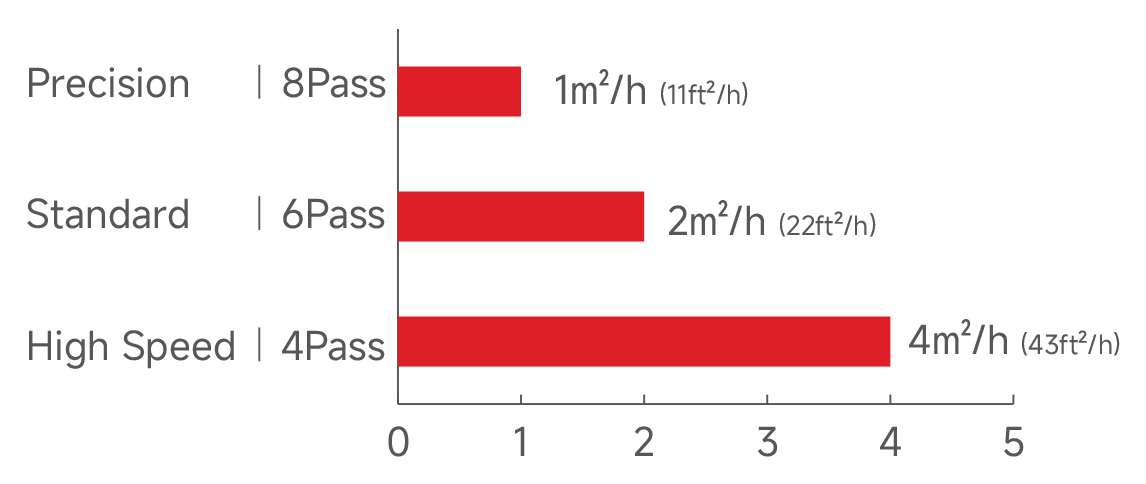

Print Speed
1 Head CMYK+W+V

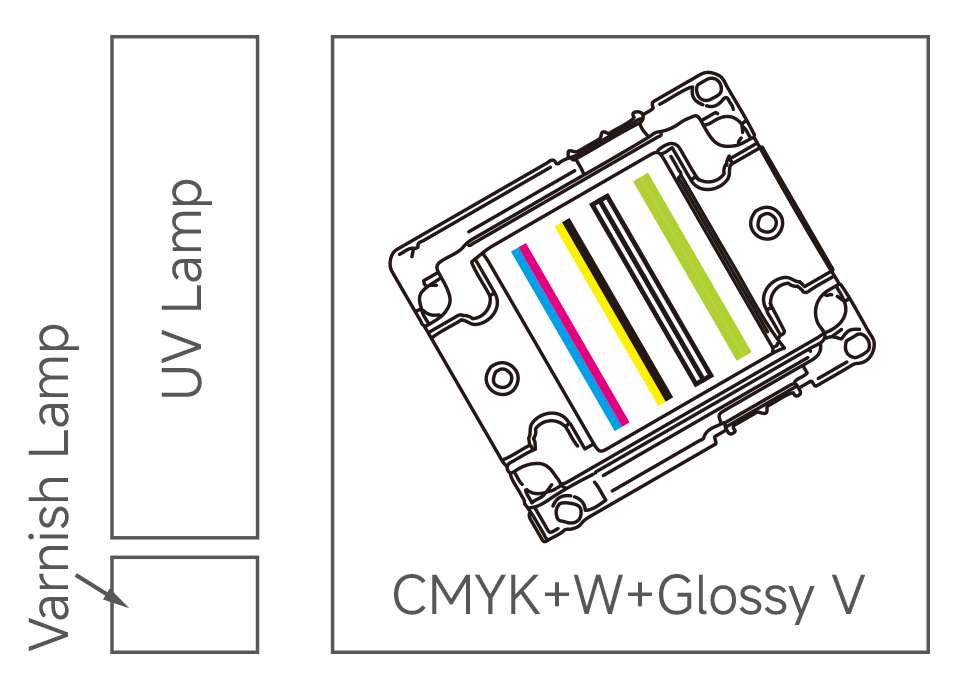

Printhead Soleplate
1 EPSON i3200HD head for 8 channels
New soleplate speed increase 30%
Ink Supplies
| Item | Color | Remarks | |
| UV Ink | #28 | cyan | 500mL/bottle |
| magenta | |||
| yellow | |||
| black | |||
| varnish | |||
| white | |||
| #47 | fluo yellow | ||
| fluo orange | |||
Inks and substrates:
•As physical properties of ink (adhesion, weather resistance etc.) are different depending on media, please be sure to have a print test in advance.
•Depending on the application, primers, other surface treatment or surface protection such as lamination may be necessary.
Safety notice:
This product is equipped with UV irradiation equipment. Please pay attention to the following notes in order to use safely.
•Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
•Depending upon print mode, some VOC emittance from printed parts not yet cured and hardened may occur.
•In addition, please be sure to read and follow the instructions and guidelines of the manual carefully.
•As physical properties of ink (adhesion, weather resistance etc.) are different depending on media, please be sure to have a print test in advance.
•Depending on the application, primers, other surface treatment or surface protection such as lamination may be necessary.
Safety notice:
This product is equipped with UV irradiation equipment. Please pay attention to the following notes in order to use safely.
•Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
•Depending upon print mode, some VOC emittance from printed parts not yet cured and hardened may occur.
•In addition, please be sure to read and follow the instructions and guidelines of the manual carefully.
Visual positioning function(DPP A3Ultra)
| Vision type | Gantry scanning |
| Camera model | 300-600 |
| Resolution | 300dpi |
| Working height | 3mm(0.118in) |
| Scanning speed | 30mm/s(1.181in/s) |
| Positioning accuracy | Less than 0.2mm(0.00787in) |
| Effective scanning range | 297×420mm(11.69×16.54in) |
| Depth of field | 1mm(0.03937in) |
| Interface type | USB |
| Image format | Tiff，PDF |
| Operating environment | Temperature: -20℃-55℃； Humidity: 5%-95%(non-condensing) |
* NOTICE:please contact with us for more details before you buy.
Dimension

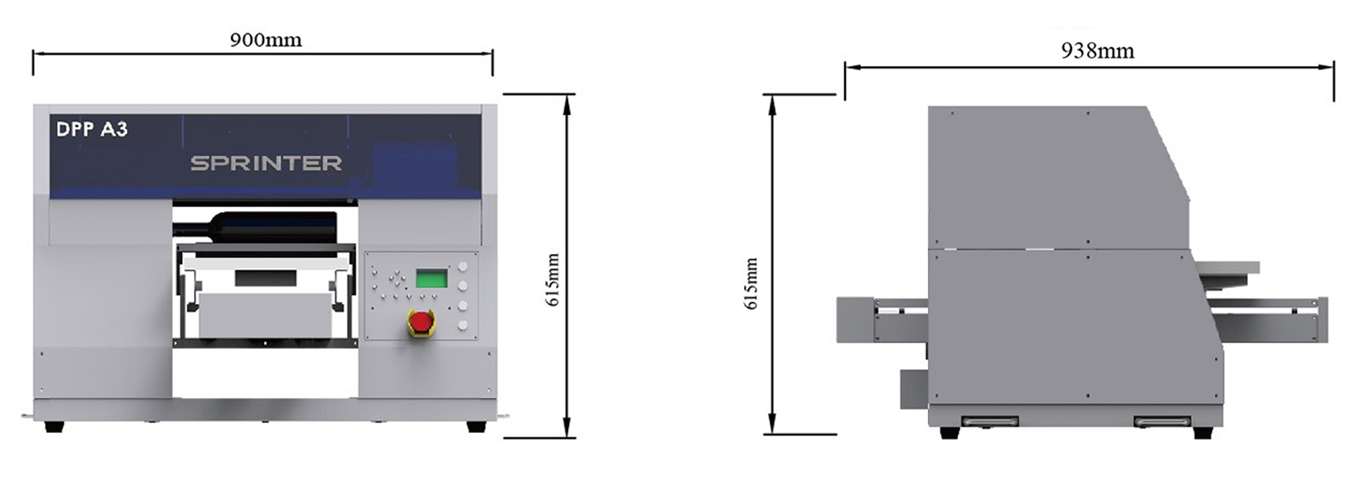

DPP A3E

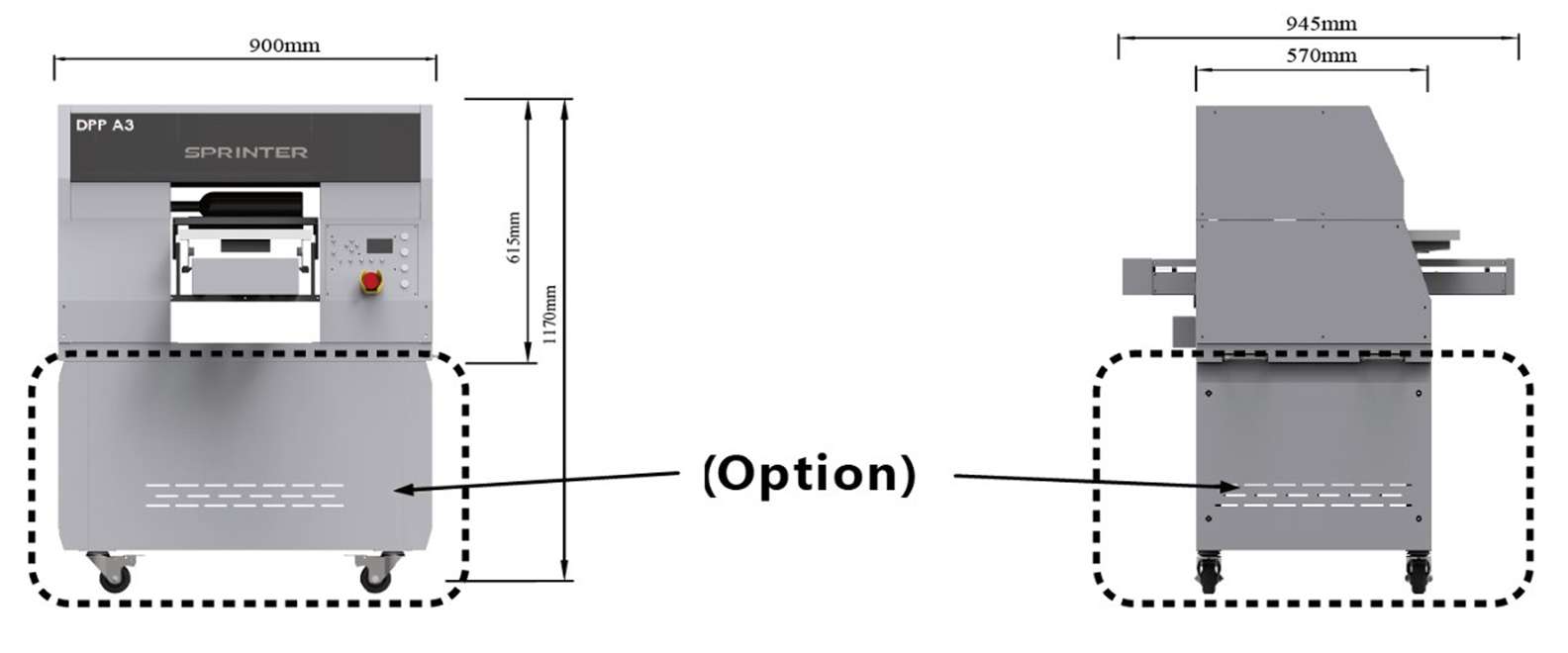

DPP A3E with table

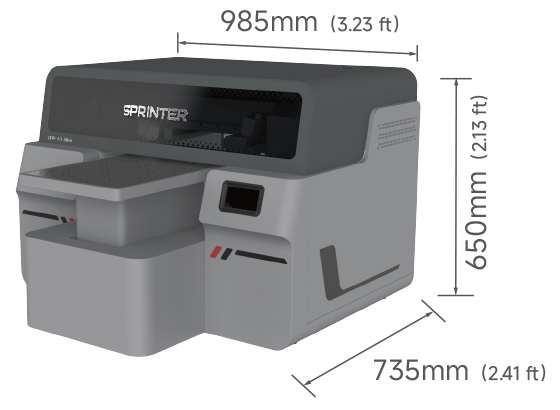

DPP A3Ultra

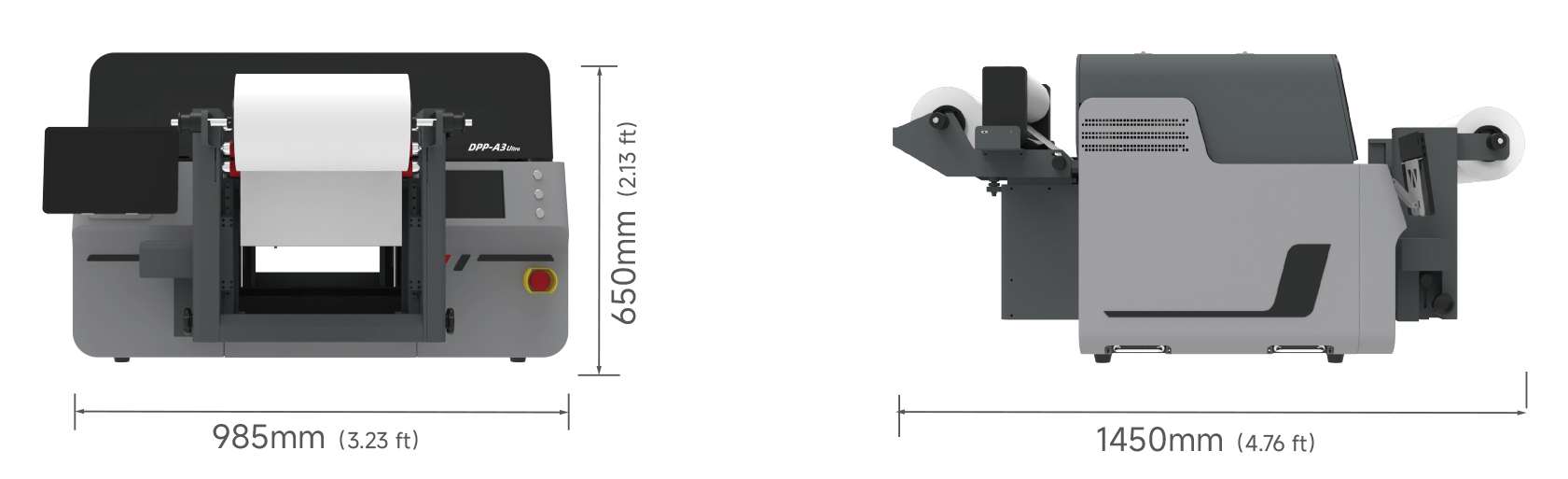

DPP A3Ultra with UV DTF System
Specification
| Model | DPP A3E / DPP A3Ultra |
| Printhead | EPSON i3200HD |
| Resolution | 720*1800dpi；720*1200dpi;360*1800dpi |
| Color | CMYK, White/Varnish (1 head 8 channels) |
| Material thickness | 0~100mm（3.93in） |
| Ink curing system | UV LED curing system |
| Platform vacuum | Turbo fan |
| Print size | Maximum printing area / 297mm x 420mm(0.97ft × 1.38ft) |
| Maximum material size / 320mm x 600mm(1.05ft × 1.97ft) | |
| Ink | UV curable ink |
| Color validity | 3~5 years outdoor and 7~10 years indoor without color fading (use Sprinter ink) |
| Ink capacity | 0.25L ink tanks, automatic alarm for ink volum shortage |
| Ink supply system | CISS（Continuous Ink Supply System） |
| Media | Glass、PMMA、Ceramic、Metal、Paper、Wood、Leather、 PVC、PP、PE…… |
| PC specification | Win 7/10/11 64bit . RAM≥8G . HDD≥500G . SSD≥128G . CPU≥Inte I5 |
| RIP software | RIIN/PhotoPrint mini(Option) |
| Operation environment | Temperature：18℃~ 26℃ |
| Humidity： 40~70% | |
| Power supply | Power Maximum:0.5KW; AC 50Hz/60Hz; 220V(±10%)＞2.5A |
| Image format | Tiff,JPEG,EPS,PDF |
| Dimensions(L x W x H) | 985×735×650mm (3.23×2.41×2.13 ft) (without UV DTF System） |
| 985×1450×650mm (3.23×4.76×2.13 ft) (with UV DTF System） | |
|
Package dimensions (L x W x H) |
1100×1150×850mm (3.61×3.77×2.79 ft) (without UV DTF System） |
| 1072×1500×826mm (3.52×4.92×2.71 ft) (with UV DTF System） | |
| Net weight&Gross weight | 85kg(187.39lb) & 145kg( 319.67lb) (without UV DTF System） |
| 105kg(231.49lb) & 170kg(374.79lb) (with UV DTF System） | |
| Certification | CE |
* Notice: above specifications are subject to change without prior notice.
all the above dimensions shall be subject to the metric system, with the imperial system for reference only.
